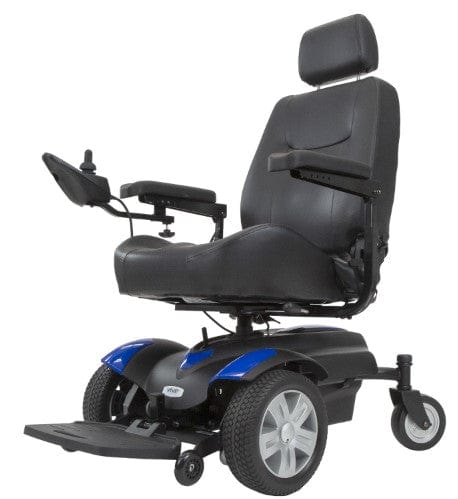

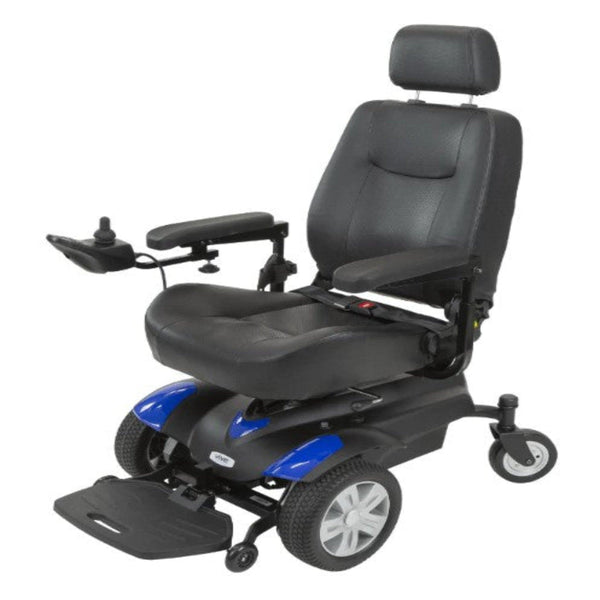

Freedom in Every Direction: The Vive Mobility Model V Electric Wheelchair
The Vive Mobility Electric Wheelchair Model V combines personalized comfort, intuitive controls, and dependable performance to support greater independence at home and on the go. Powered by dual 200W motors, it reaches speeds of up to 4 mph and offers a driving range of up to 15 miles per charge. Its compact design and 25-inch turning radius provide easy maneuverability in tight indoor spaces and on paved outdoor surfaces.
A swiveling, adjustable captain’s seat, customizable armrests and footplate, and a joystick controller that mounts on either side help accommodate individual needs. With solid, maintenance-free tires, freewheel functionality, and TSA-approved travel design, the Model V is a versatile mobility solution for everyday activities and travel.
Designed for Comfort, Control & Everyday Adventures
- Smooth Indoor and Outdoor Mobility: Dual 200W motors deliver speeds of up to 4 mph across indoor flooring and suitable paved surfaces, with 2.5 inches of ground clearance.

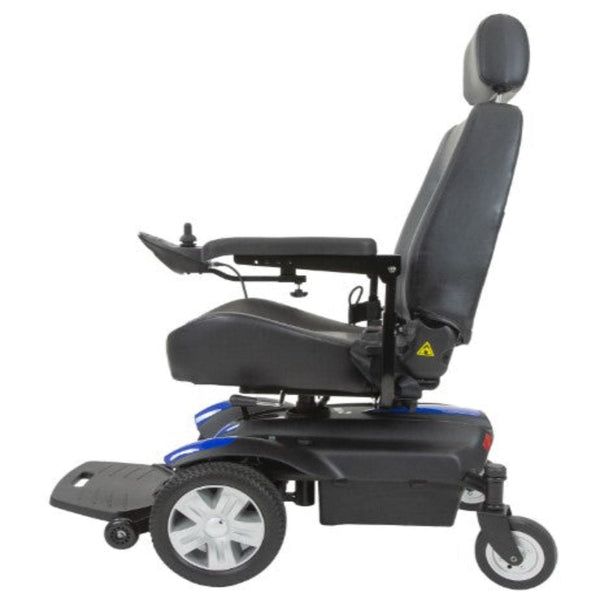

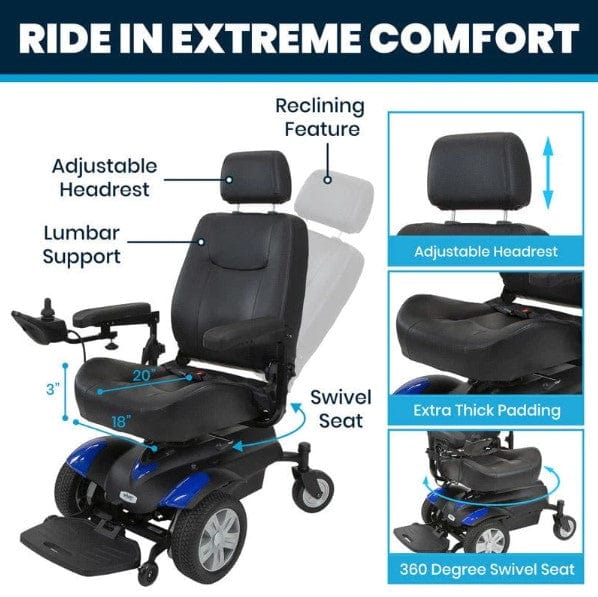

- Comfortable Swiveling Captain’s Seat: The cushioned 20" × 18" seat swivels for easier transfers and features adjustable seat height and reclining angle for personalized comfort.

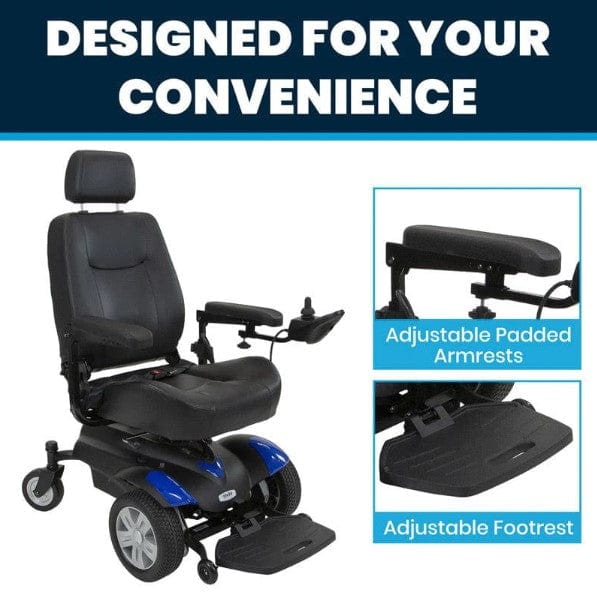

- Customizable Seating Support: Adjust the armrest height, width, and angle, along with the footplate height, depth, and angle, to accommodate individual positioning needs.

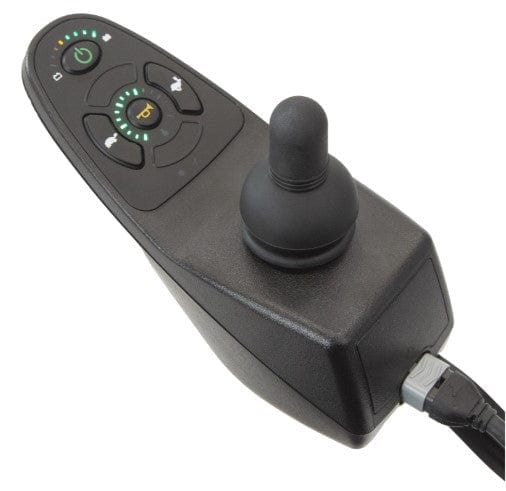

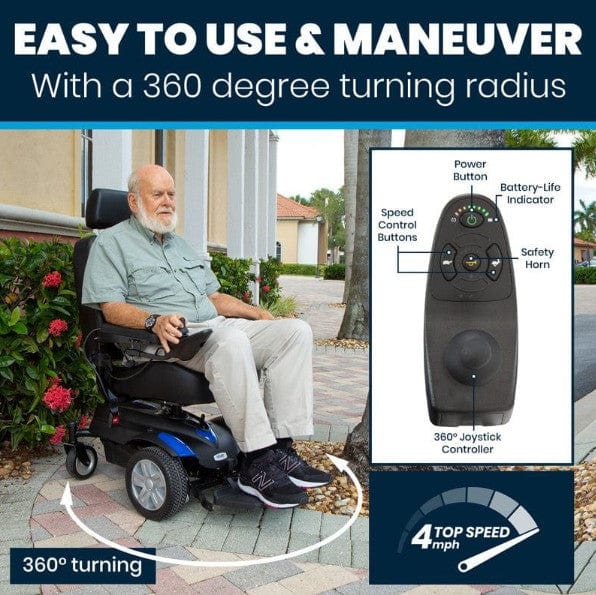

- Intuitive Joystick Controls: The 360-degree joystick provides responsive steering and convenient speed control. It can be mounted on either armrest and includes a battery level indicator and integrated charging port.
- Maneuverable Compact Design: A 25-inch turning radius helps navigate narrow hallways, tight corners, and smaller indoor spaces.
- Extended Driving Range: Two rechargeable 12V 35Ah batteries provide a maximum range of up to 15 miles per charge for everyday mobility and outings.
- Dual Braking System: Integrated braking features help support controlled operation and safer maneuvering.
- Freewheel Manual Mode: Disengage the electric motors using the levers behind the rear wheels to allow the wheelchair to be pushed manually when needed. Manual mode should not be used for independent operation.
- Solid, Maintenance-Free Tires: Solid, inflation-free tires eliminate the need for tire inflation and help prevent flats.
- Travel-Friendly Design: TSA-approved for air travel and suitable for cruise ship trips. Airline acceptance and battery transport requirements may vary, so confirm arrangements with your carrier before traveling.
- Practical Weight Capacity: Supports users weighing up to 300 lbs.
- Convenient Onboard Charging: Recharge the batteries through the charging port on the joystick controller using the included 3-pin charging cable.
- Simple Initial Setup: Arrives partially assembled and requires a few setup steps before use. Instructions are included.
Vive Health Electric Wheelchair Model V Specifications

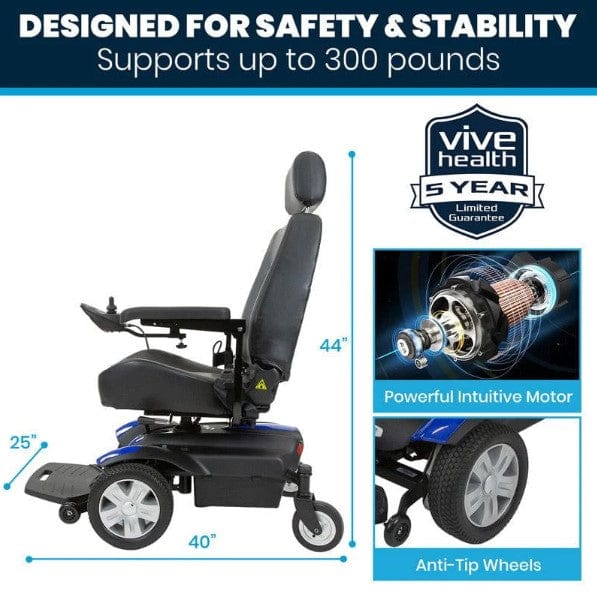

| Model | Electric Wheelchair Model V |
| Maximum Speed | Up to 4 mph |
| Maximum Driving Range | Up to 15 miles per charge |
| Weight Capacity | 300 lbs. |
| Product Weight | 151 lbs. (with batteries) |
| Overall Length | 40 in. |
| Overall Width | 24.75 in. |
| Overall Height | 44 in. |
| Seat Dimensions | 20 × 18 in. |
| Seat Back Height | 18.5 in. |
| Front Tire Diameter | 6.2 in. |
| Rear Tire Diameter | 10 in. |
| Tire Type | Solid, inflation-free |
| Turning Radius | 25 in. |
| Ground Clearance | 2.5 in. |
| Motor Configuration | Dual motors |
| Motor Power | 200W per motor |
| Motor Speed | 3,900 RPM |
| Battery Configuration | Two rechargeable 12V 35Ah batteries |
| Battery Charger | Onboard, 2A |
| Charging Method | Via joystick controller charging port |
| Controller | 360-degree joystick |
| Controller Position | Mounts on left or right armrest |
| Braking System | Dual braking system |
| Seating | Cushioned, swiveling captain’s seat |
| Seat Adjustments | Seat height and recline angle |
| Armrest Adjustments | Height, width, and angle |
| Footplate Adjustments | Height, depth, and angle |
| Manual Operation | Freewheel mode |
| Travel Approval | TSA-approved; confirm airline-specific requirements |
| Suitable Surfaces | Indoor flooring, concrete, pavement, and smooth outdoor surfaces |
| Weather Limitations | Not suitable for rain or inclement weather |
| Assembly | Partially assembled; setup required |
| Warranty | Five-year limited guarantee |
| What's Included | Wheelchair, two 12V 35Ah batteries, joystick controller, 3-pin charging cable, and user manual |
Vive Health Electric Wheelchair Model V Brochure & User Manual
Frequently Asked Questions (FAQs)
How far can the Vive Mobility Model V Electric Wheelchair travel on a single charge?
The Model V offers a maximum driving range of up to 15 miles per charge, with a top speed of 4 mph. Actual range may vary depending on terrain, user weight, and driving conditions.
Is the Vive Mobility Model V suitable for indoor and outdoor use?
Yes. Its compact design and 25-inch turning radius make it suitable for navigating indoor spaces and tight corners. It can also travel on paved outdoor surfaces, such as concrete and pavement. It is not designed for loose gravel or use in rain and other inclement weather.
Can the seat, armrests, and footplate be adjusted for comfort?
Yes. The cushioned 20" × 18" captain’s seat swivels for easier transfers and offers adjustable seat height and recline. The armrests adjust in height, width, and angle, while the footplate adjusts in height, depth, and angle for personalized positioning.
Can the joystick controller be mounted on either side of the wheelchair?
Yes. The 360-degree joystick controller can be mounted on either the left or right armrest to accommodate user preferences. It provides intuitive steering and speed control and includes a battery level indicator and charging port.
Is the Vive Mobility Model V suitable for air travel, and how is it charged?
The Model V is advertised as TSA-approved and is designed with travel in mind. However, airline requirements for powered wheelchairs and batteries vary, so confirm acceptance and battery transport requirements with your airline before departure. The wheelchair includes two rechargeable 12V 35Ah batteries and an onboard 2A charger. Charge the batteries through the port on the joystick controller using the included 3-pin charging cable.
