Description

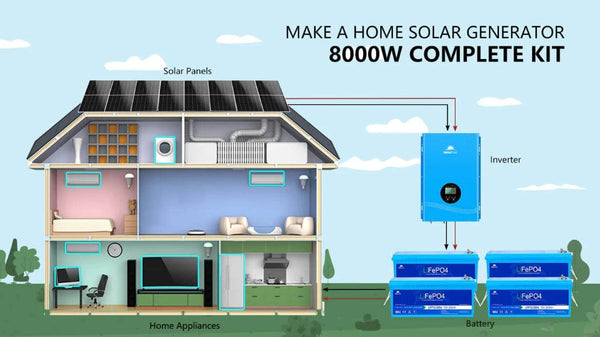

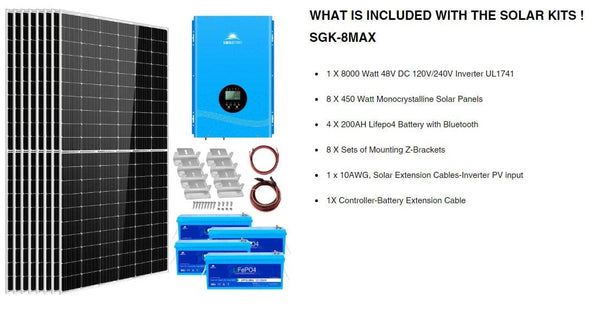

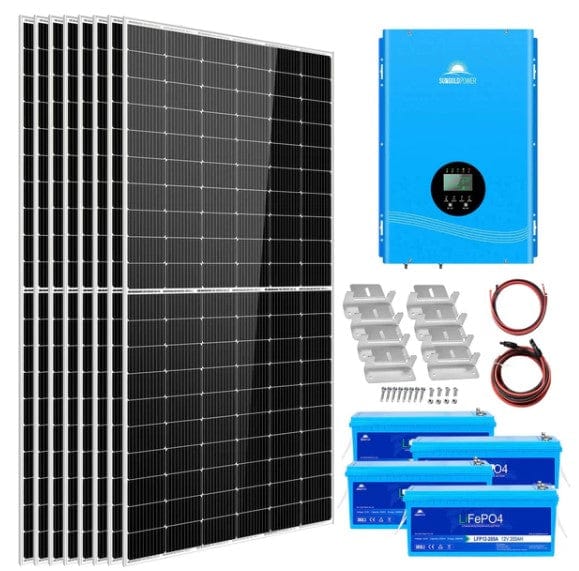

If you're looking for a safe, reliable way to build your own DIY solar system at a fraction of the cost, you've come to the right place. This solar kit includes 8000W 48V AC120V/240V split output solar inverter UL 1741+ 8PCS 450 Watt Solar Panel + 4pcs 200AH Lithium Battery + other accessories. The solar kit can power the air-conditioner, washer, refrigerator, water pump and other big appliances with the low frequency inverter. It is widely used in off grid homes. You can extend your system by adding more solar panels or batteries in the future.
Specifications

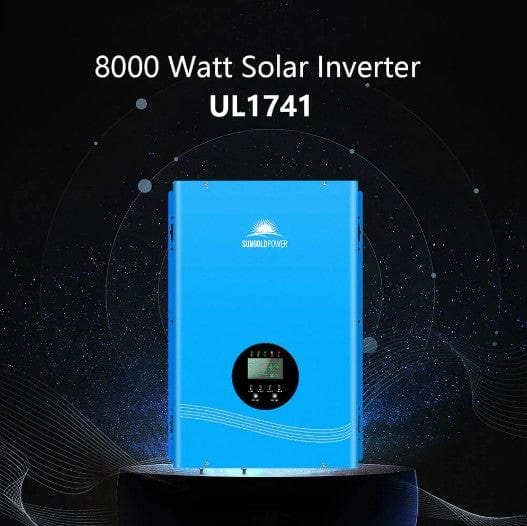

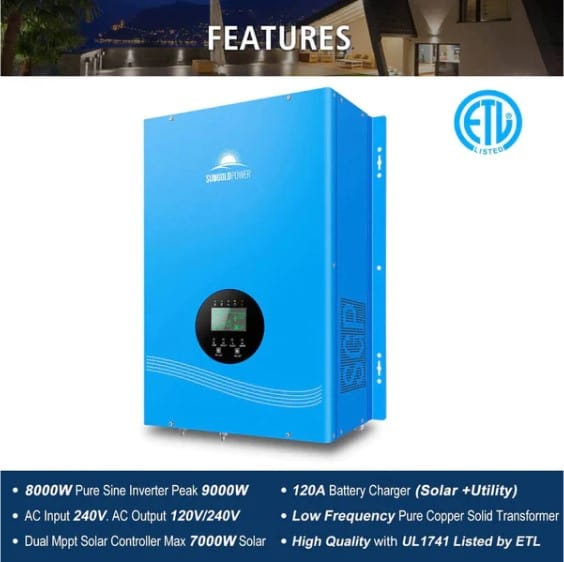

SUNGOLDPOWER 8000 WATT SOLAR INVERTER
AC Output: 8000W
Output Waveform: Pure Sine Wave
AC Output: 120V/240V 60HZ
Max PV Mppt Operation Voltage: 2 X 150VDC
Efficiency: 93%
Max Charging Current: 120A
Maximum PV Array Power: 2 X 3500W
Dimension: 27.6 X 16.5 X 4.9 in.
Weight: 120 Lbs.

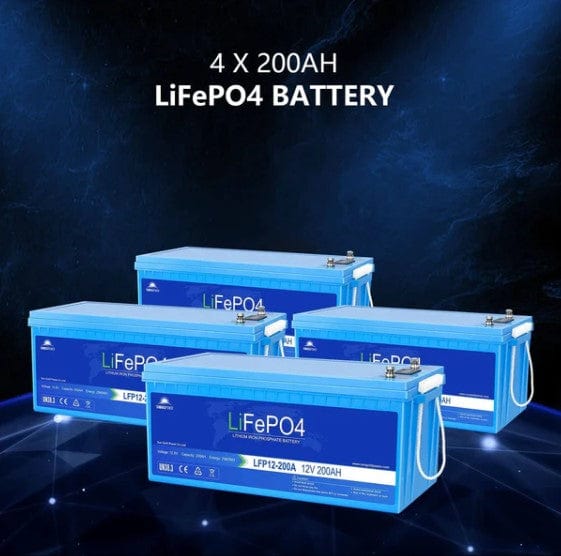

SUNGOLDPOWER LIFEPO4 BATTERY
Nominal Voltage: 12.8V
Nominal Capacity: 200AH
Energy: 2560WH
Voltage Window: 10.8-14.6V
MAX Continuous Charge Current: 150A
Peak Discharge Current: 245A
Cycle Life: >4000
Main Character: Self Heating /IP65
Monitoring Function: LCD/Bluetooth

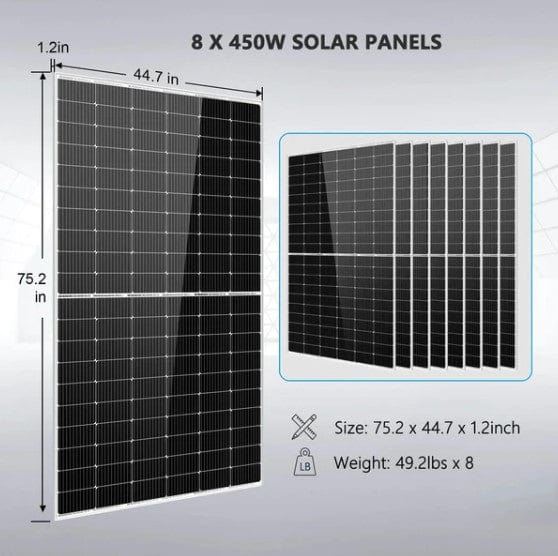

SUNGOLDPOWER 450 WATT MONO SOLAR PANEL
Peak Power: 450W
Solar Cell: Monocrystalline
Product Tolerance: ±3%
Maximum Power Current (IMP): 12.98A
Maximum Power Voltage (IMV): 34.67V
Short Circuit Current (ISP): 13.98A
Open Circuit Voltage (VOC): 41.25V
Dimensions: 75.2 X 44.7 X 1.2 in.
Weight: 49 Lbs.

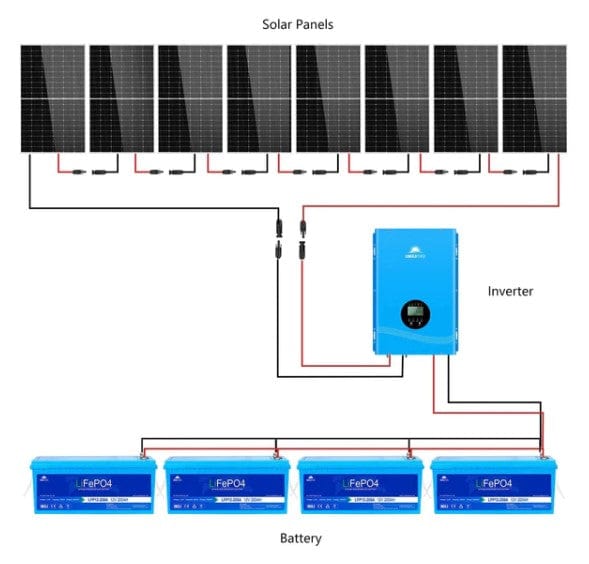

SUNGOLDPOWER SOLAR KIT
Max Continuous Output: 8000W
AC Output: 120V/240V
DC Voltage: 48V
Max Solar Input: 7000W
Total Watt of Power: 3600W
Per Panel Watt: 450 Watt
Panel No.: 8 pcs
Total KWH of Batteries: 10.24KWH
Chemistry: Lithium
Battery No.: 4 pcs
Battery: 12V 200AH
