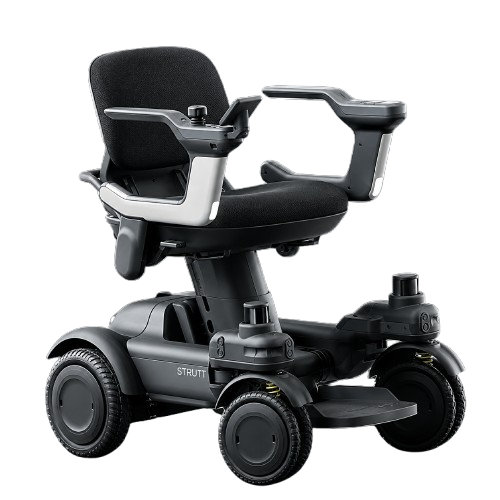

STRUTT ev¹ — The Future of Personal Mobility.
The STRUTT ev¹ Smart Electric Mobility Vehicle combines advanced mobility technology, personalized comfort, and intelligent navigation to help you move through everyday life with greater confidence and independence. Its innovative Quad-Drive System, intelligent obstacle detection, and automated navigation features are designed to assist with maneuvering through tight spaces, navigating uneven surfaces, and moving around everyday obstacles.
With an adjustable ergonomic design, modular construction, and long-range battery option, the ev¹ offers a modern approach to personal mobility at home and on the go.
*The ev¹ is not a medical device
Intelligent Innovation. Designed Around You.
- Intelligent Obstacle Detection: Advanced sensors help identify nearby obstacles and respond with automatic braking to support safer maneuvering around furniture, people, and pets.
- Quad-Drive Technology: Four-motor architecture, active steering, and independent suspension work together to provide controlled movement across varied surfaces and inclines.
- Automated Navigation: Pathfinder and Waypoints features allow users to select destinations and navigate certain spaces with intelligent driving assistance.
- Bright, Adjustable LED Headlights: Adapt lighting to your surroundings for improved visibility, whether navigating indoors or exploring outdoor paths.
- Personalized Ergonomic Adjustments: Multiple seat-height, seat-width, armrest-height, and backrest-height adjustments help tailor the vehicle to individual comfort needs.
- Powerful Battery Options: Choose between a 640 Wh long-range battery and an optional 288 Wh flight-safe battery, subject to applicable airline requirements.
- Modular, Transport-Friendly Design: The vehicle separates into compact modules for easier storage and transport, with the heaviest component weighing approximately 44 lb according to STRUTT.

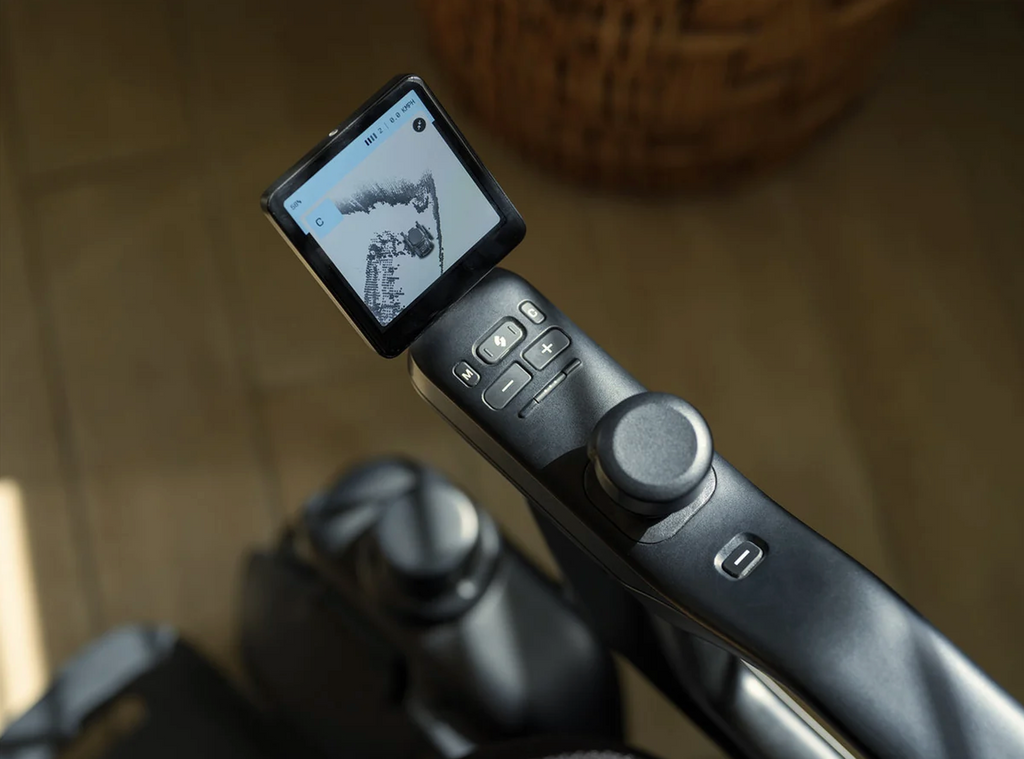

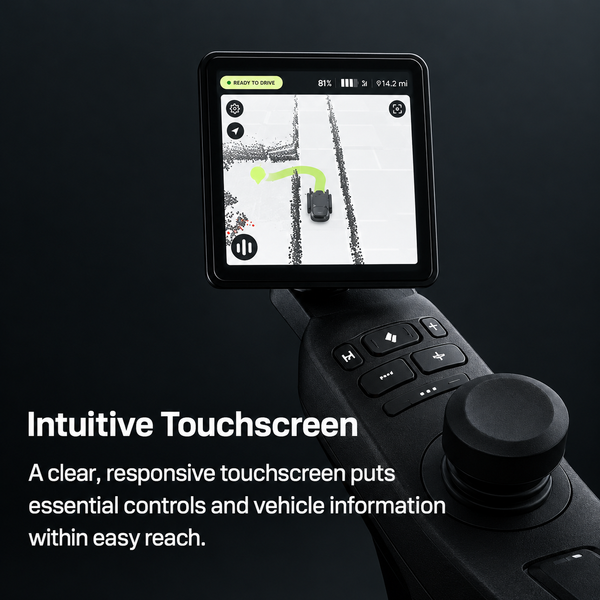

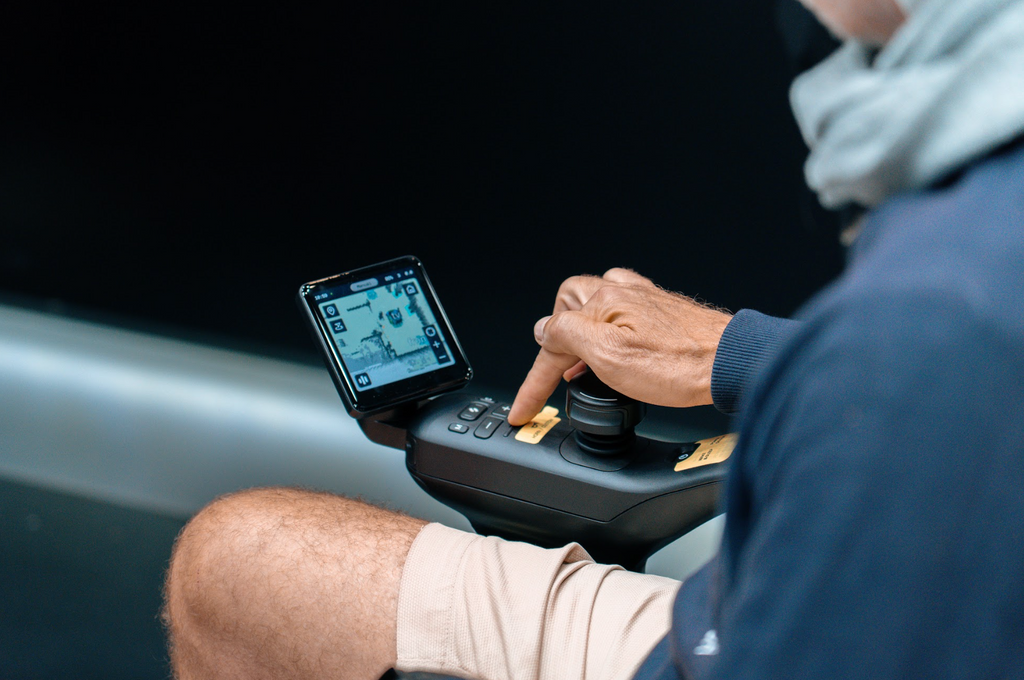

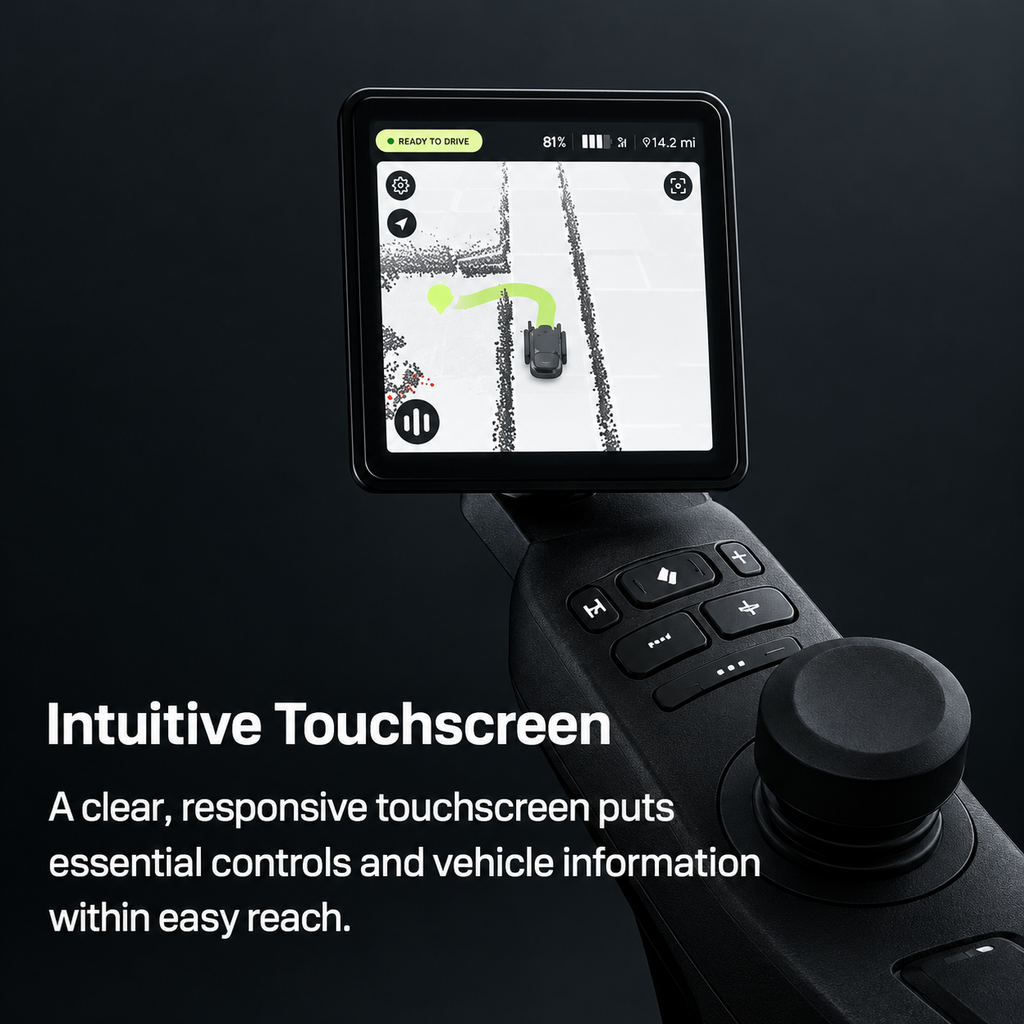

- Intuitive Touchscreen Controls: A 4-inch display provides access to vehicle settings, navigation features, and a rear camera view.
- Smartphone Connectivity: Use the STRUTT app for supported remote-control functions, vehicle locking and unlocking, and access to intelligent features.

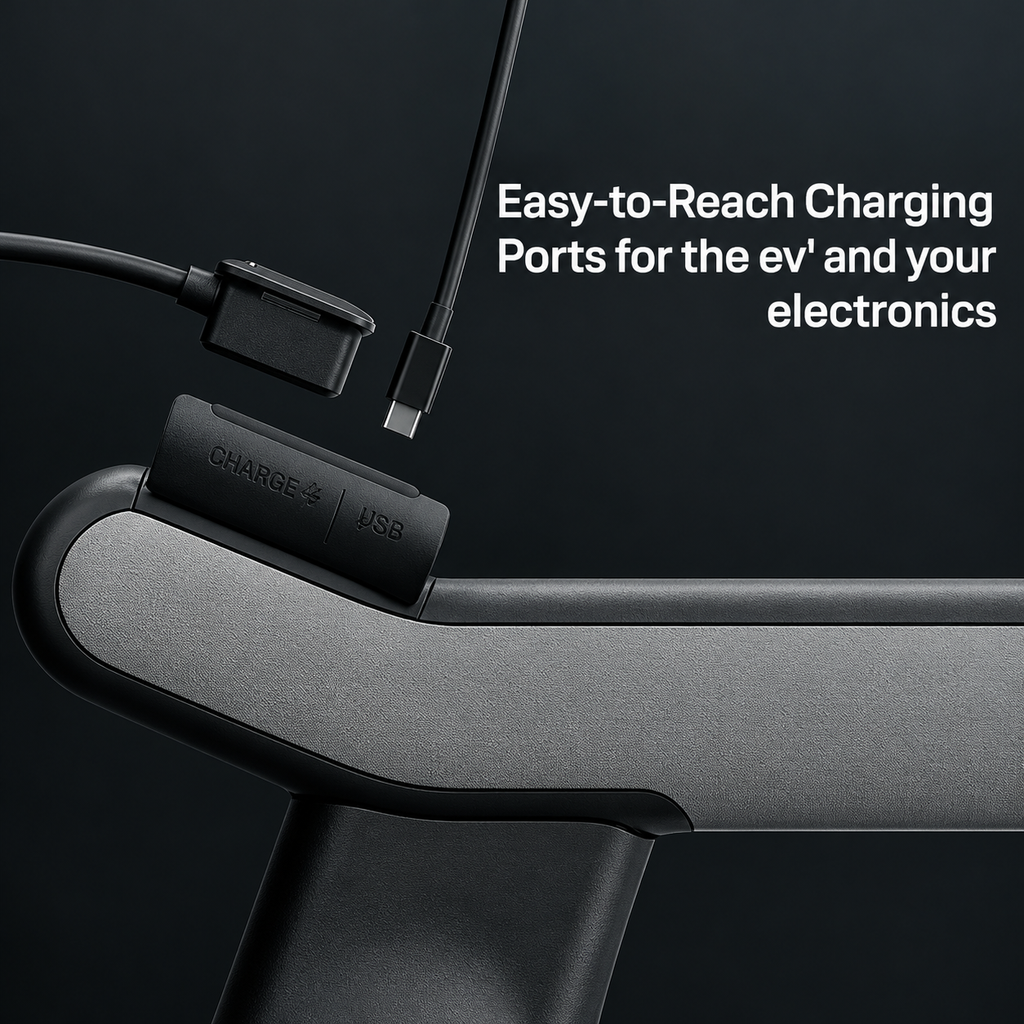

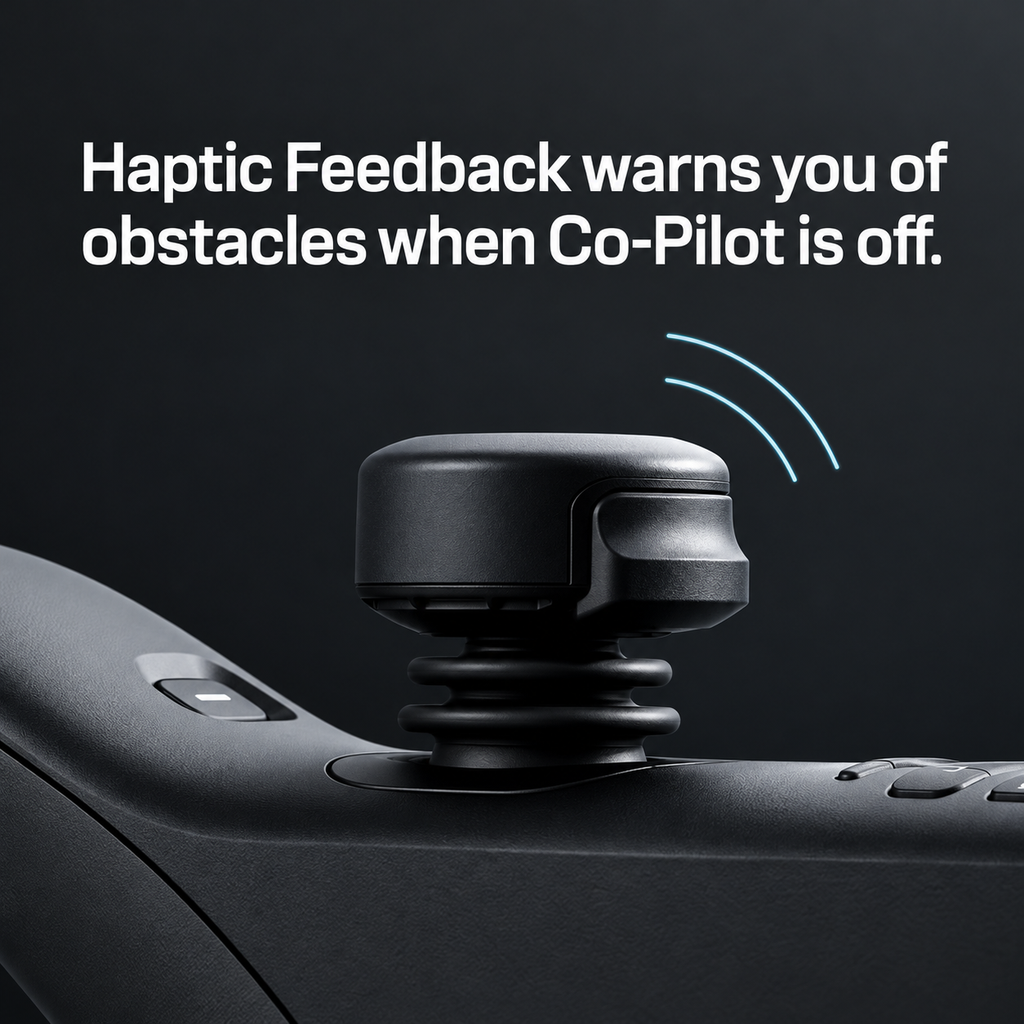

- Everyday Convenience: Folding armrests and footrest, adjustable headlights, haptic feedback, accessible charging ports, and swappable cushions add practicality and comfort.
- Weather Resistance: An IPX5 rating is advertised on the product page to help protect against water spray.

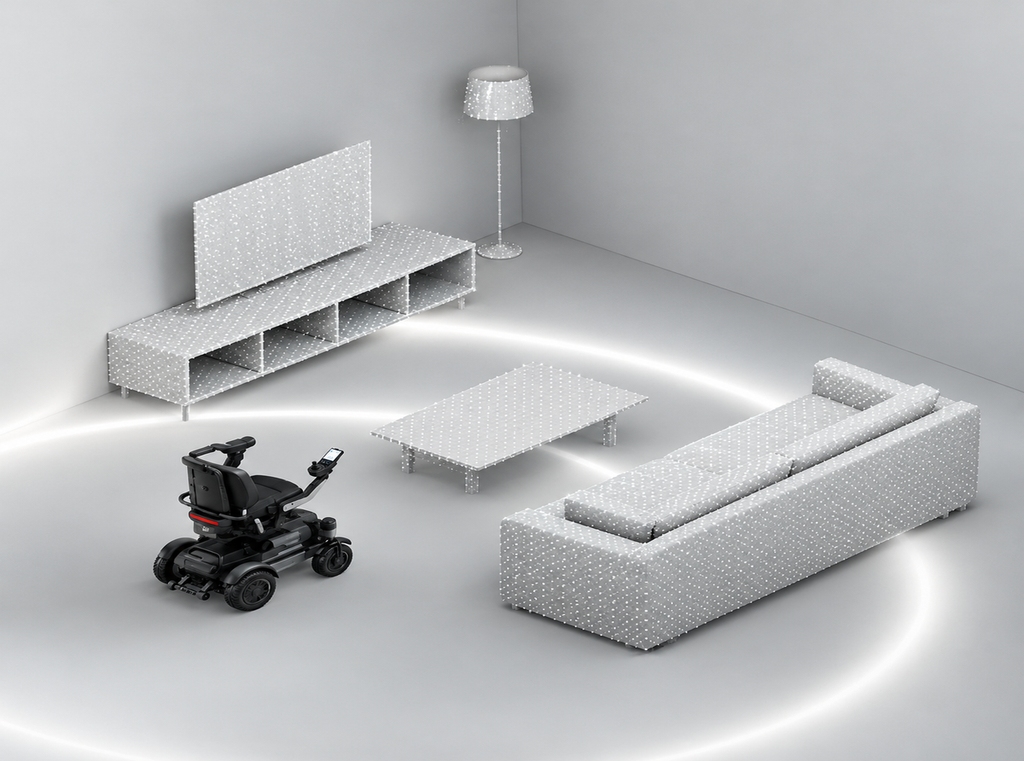

Intelligent mobility with evSense
The STRUTT ev¹ uses an advanced sensor system featuring LiDAR, time-of-flight sensors, ultrasonic sensors, and cameras to interpret its surroundings. Its Co-Pilot system provides obstacle detection and braking assistance, while Co-Pilot+ adds steering assistance for maneuvering through certain narrow spaces. Pathfinder and Waypoints offer additional navigation support for reaching selected destinations.

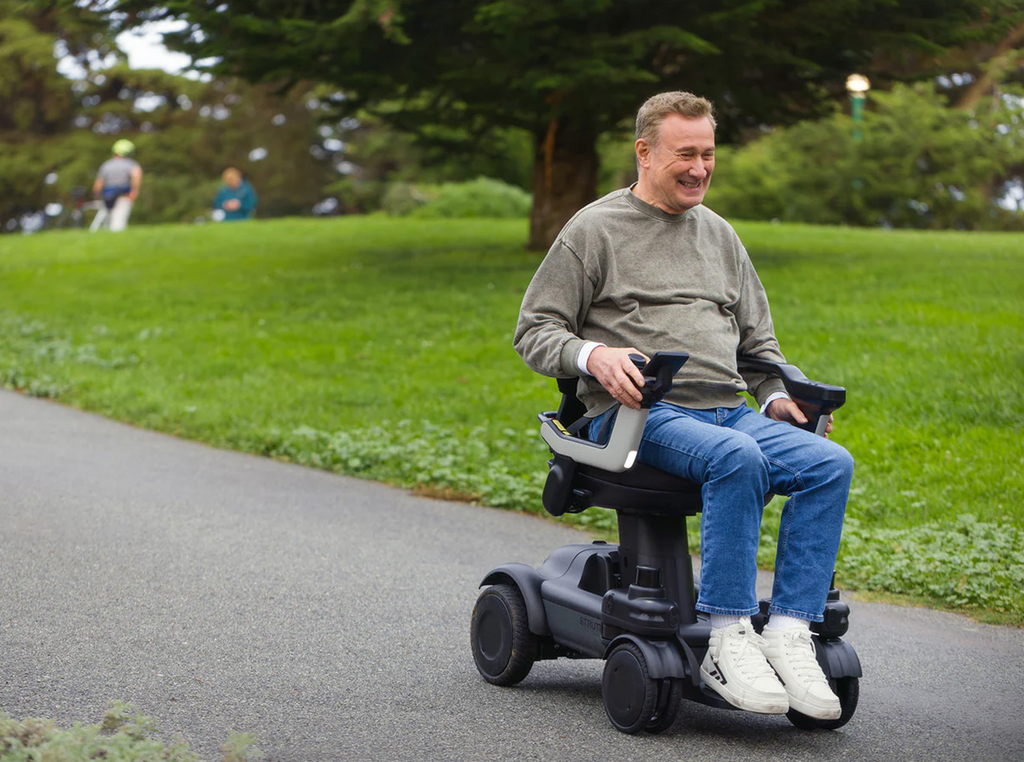

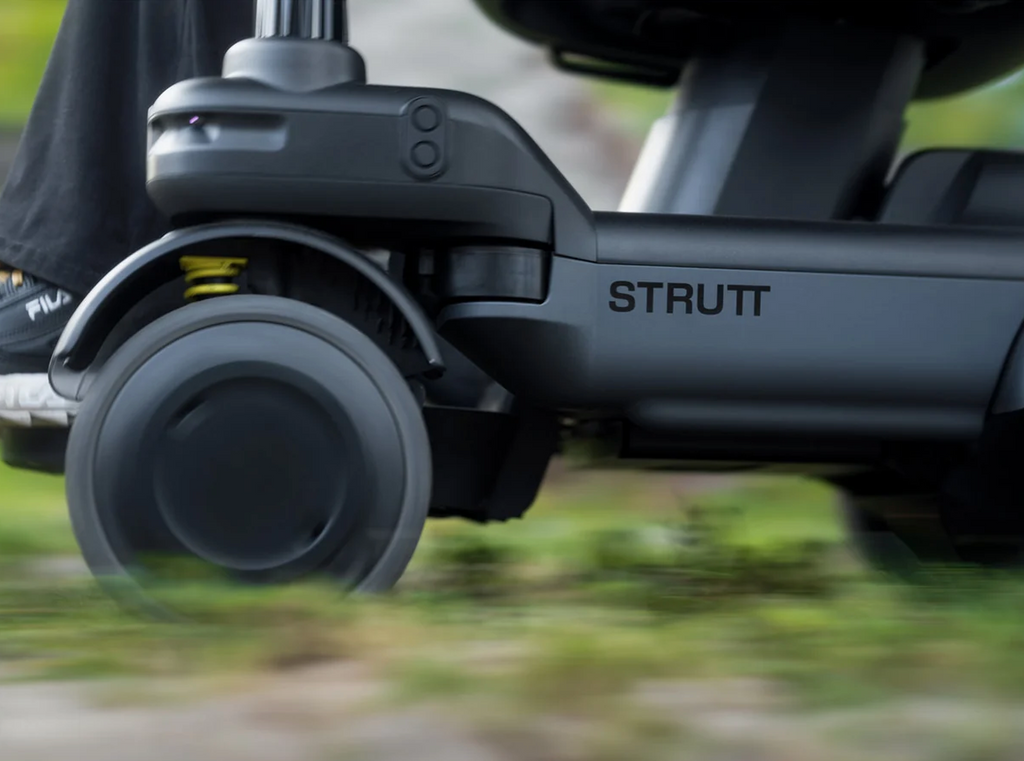

Quad-Drive System and all-terrain stability
Designed for more than smooth indoor floors, the Quad-Drive System combines four motors, active front steering, and four-wheel independent suspension. It is engineered to support controlled movement on varied surfaces, with a published maximum climbing slope of approximately 13° under specified test conditions.
Modular design for transport

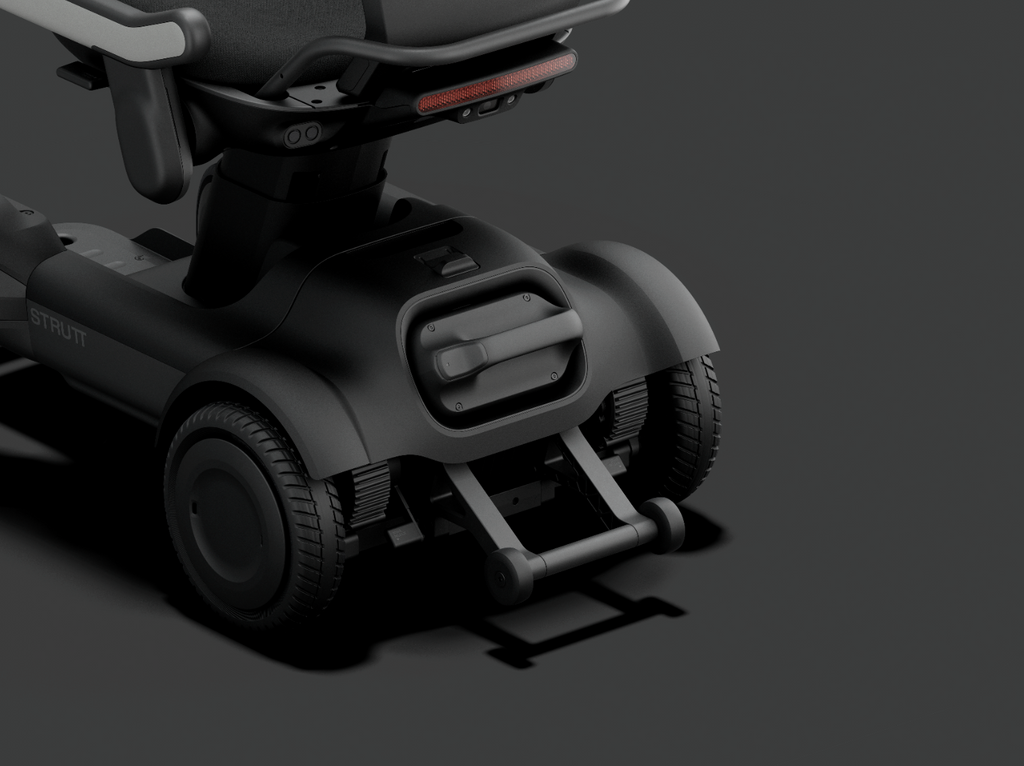

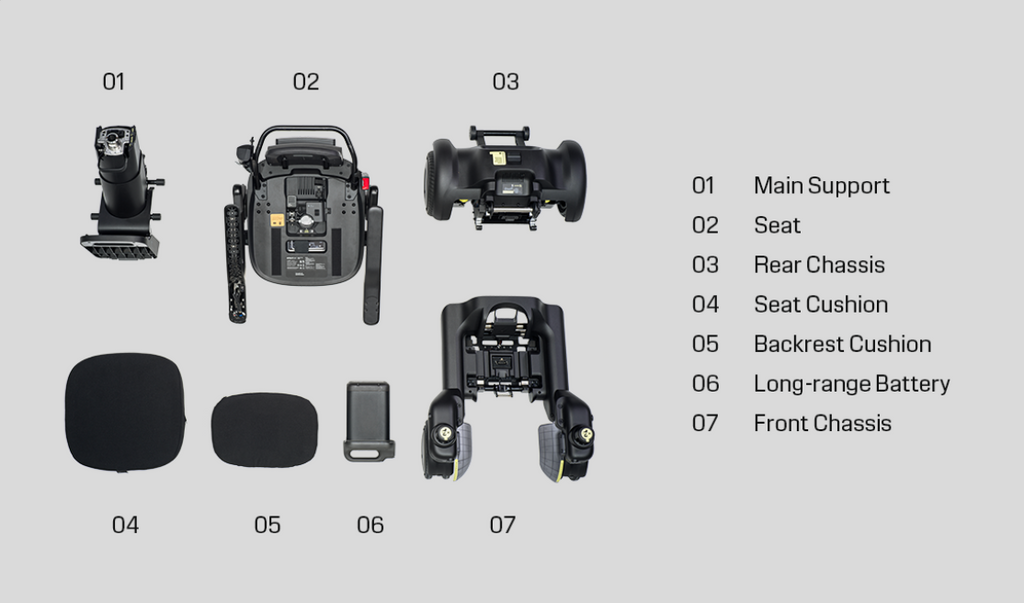

The vehicle separates into five modules, including the battery, to make storage and transport more manageable. The heaviest module weighs approximately 43.7 lb, and the assembled vehicle measures approximately 41.2 inches long and 23–26 inches wide. Dedicated securement points are provided for transport in a suitable vehicle.

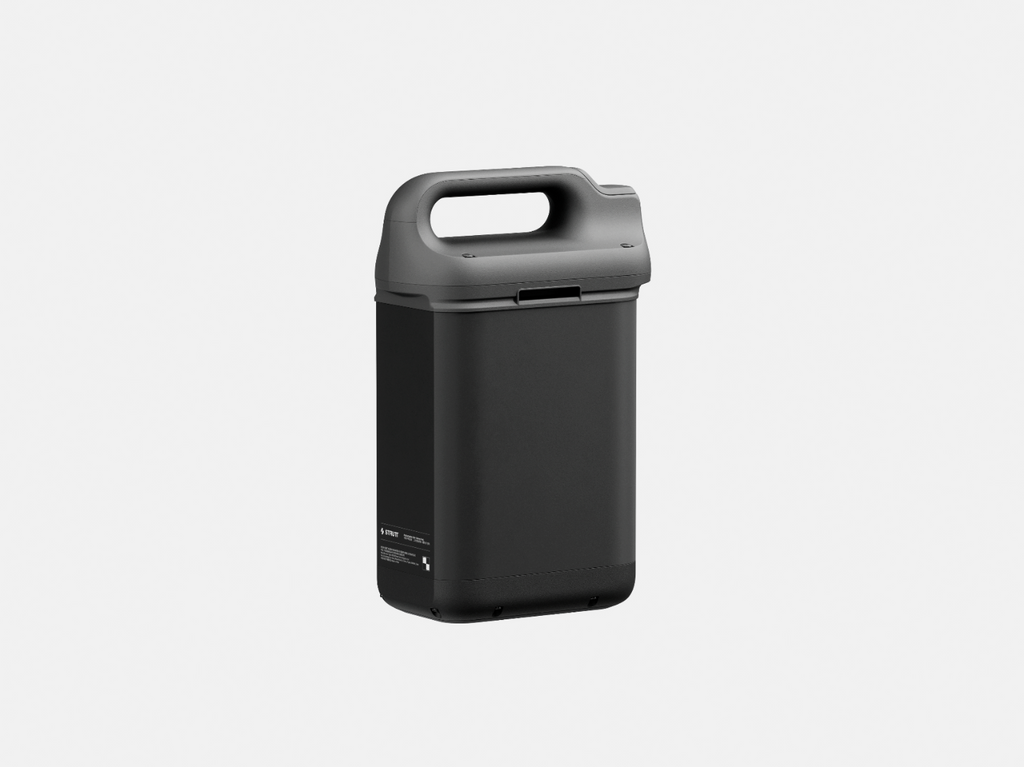

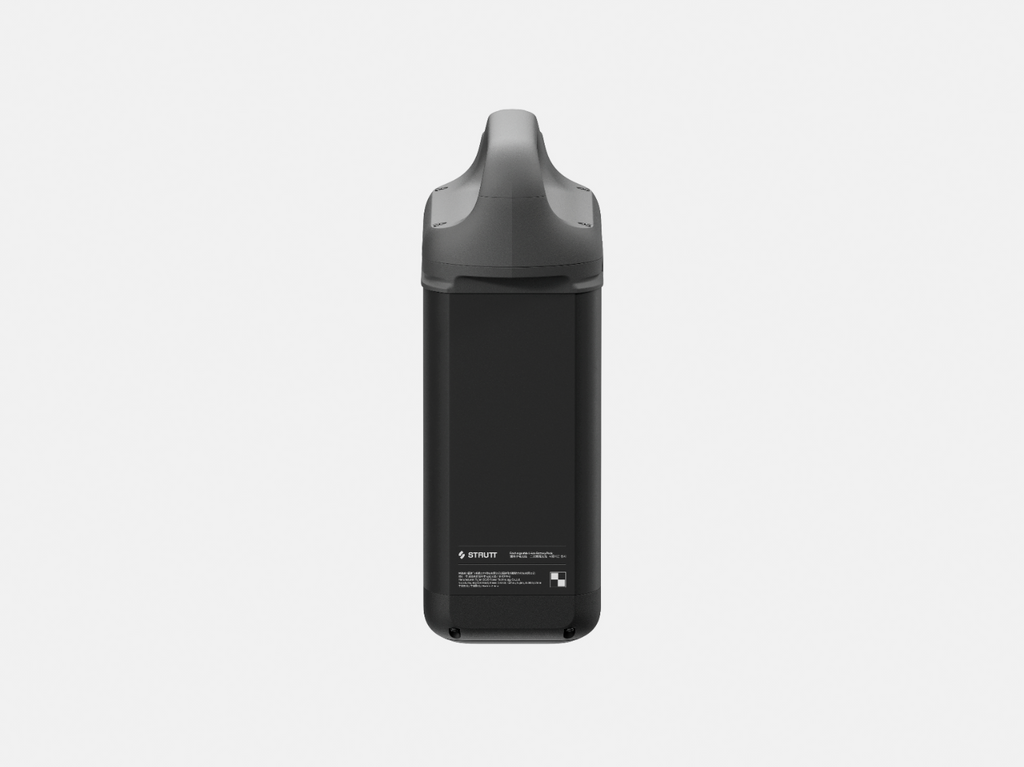

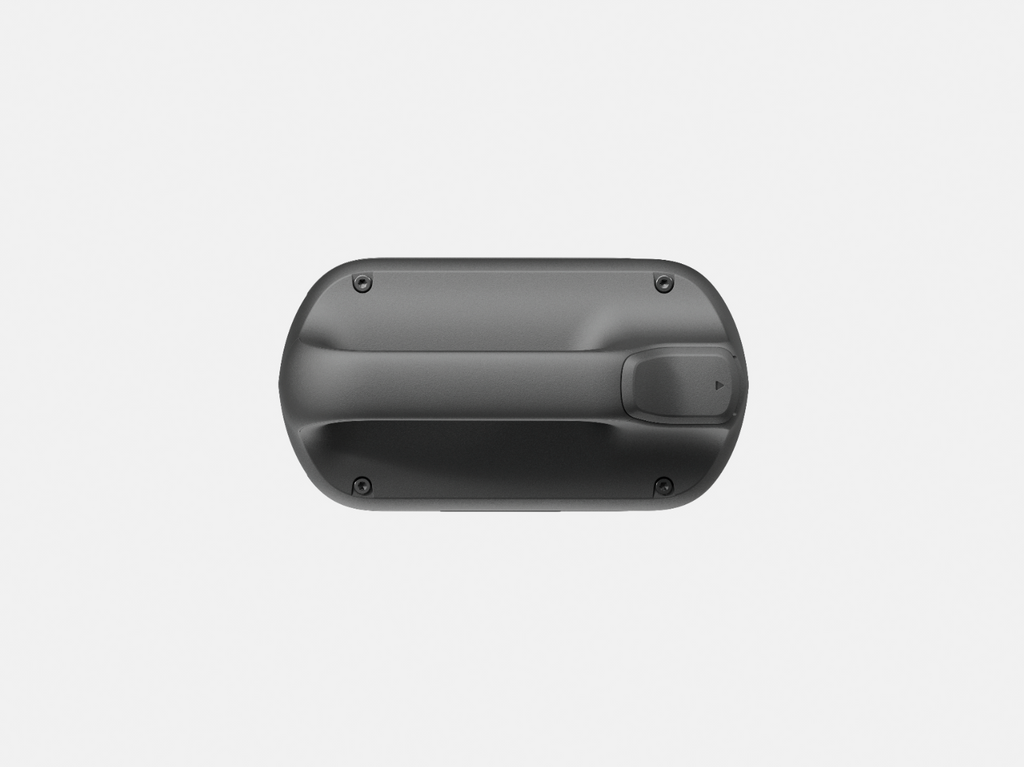

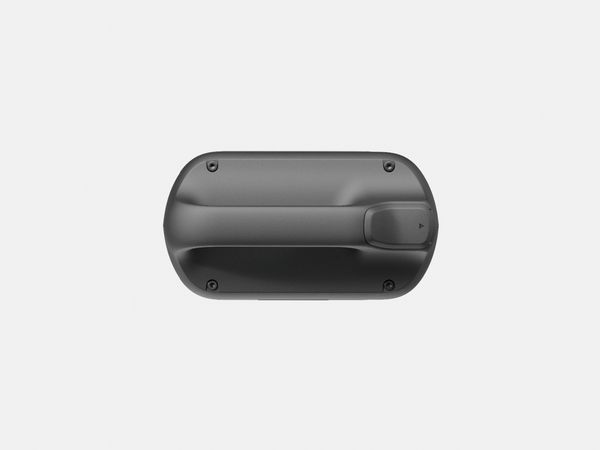

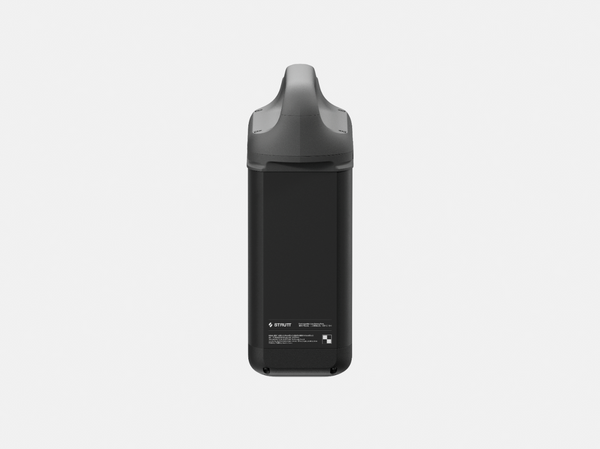

STRUTT ev¹ Smart Electric Mobility Vehicle Battery Specifications
| LONG-RANGE BATTERY | FLIGHT-SAFE BATTERY | |
| Battery Chemistry | Lithium iron phosphate (LFP) | LFP |
| Typical Energy | 640 Wh | 288 Wh |
| Included with Vehicle | Yes | No; sold separately |
| Intended Use | Maximum driving range | Air-travel-oriented configuration |
| Driving Range | Up to 20 miles with evSense off and 16.2 miles with evSense on | - |
| Charging Time | Approximately 2 hours to 80%; 4 hours to full | - |
| Nominal Voltage | 32 V | - |
| Typical Capacity | 20 Ah | - |
| Battery Weight | 13.2 lbs. | - |

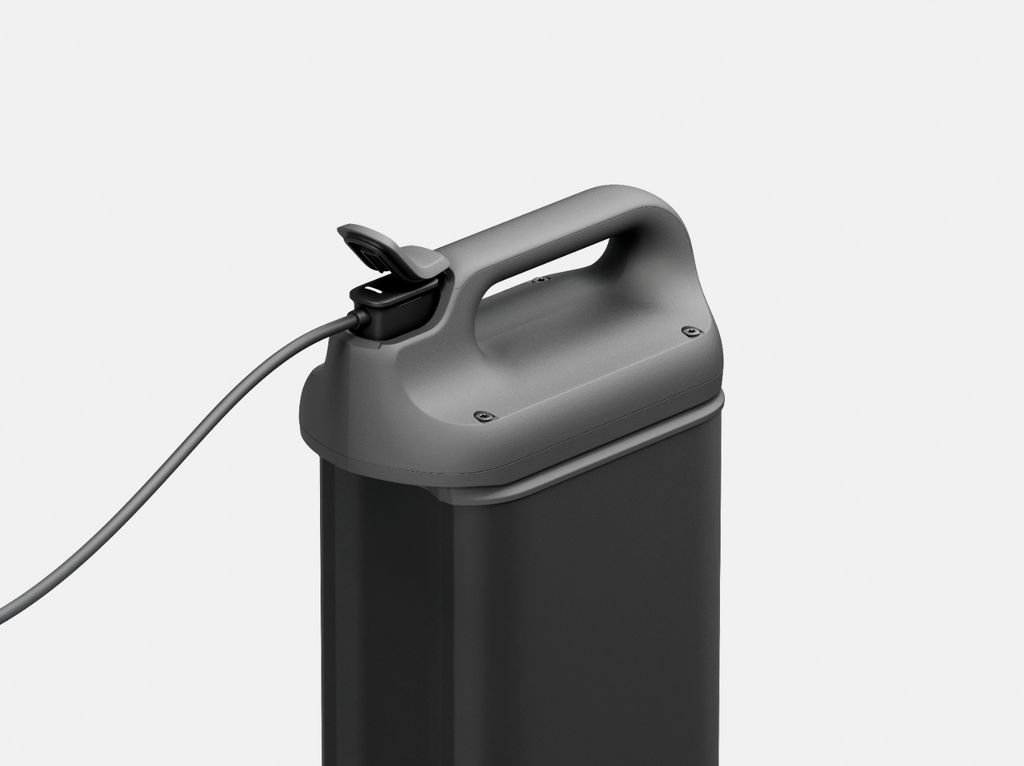

| Charging Capability | On-board and off-board charging | On-board and off-board charging |
STRUTT ev¹ Smart Electric Mobility Vehicle Specifications
| Product Type | Smart electric mobility vehicle |
| Maximum User Weight | 350 lbs. |
| Maximum Speed | Up to 8 mph, subject to applicable regulations |
| Maximum Range | Up to 20 miles with evSense deactivated |
| Range with evSense Activated | Up to 16.2 miles |
| Overall Dimensions (L×W×H) | 41.2 × 23–26 × 34.3–38.7 in |
| Total Weight (Excluding Battery) | Approximately 140.7 lbs. |
| Number of Modules | 5, including battery |
| Heaviest Module | Approximately 43.7 lbs. |
| Seat Width | 17.4, 18.9, or 20.4 in. |
| Seat Height | 15.7–19.7 in.; 6 adjustment levels |
| Seat Cushion Dimensions (WxD) | Approximately 18.2 × 18.1 in. |
| Armrest Height | 8.7, 9.4, or 10.2 in. |
| Backrest Angle | 13°, 16°, or 19° |
| Backrest Height | 13.8–16.7 in; 4 adjustment levels |
| Turning Radius | 30.7 in. |
| Ground Clearance | 3.1 in. |
| Obstacle Clearance | 2 in. |
| Maximum Climbing Slope | Approximately 13° (23.1%), under specified test conditions |
| Suspension | Four-wheel independent suspension |
| Drive Configuration | Four motors; rear-wheel drive with active front steering |
| Display | 4-inch LCD touchscreen, 1,000-nit brightness |
| Sensors | 2 LiDAR, 10 time-of-flight, 6 ultrasonic sensors, 2 cameras |
| Rear Camera | Yes |
| Adjustable Headlights | Yes |
| Smartphone App | Yes; supported remote-control and security features |
| Software Updates | Over-the-air (OTA) updates |
| USB Output | USB-C with Power Delivery |
| Waterproof Rating | IPX5 for the vehicle, under controlled laboratory conditions |
| Operating Temperature | 14°F to 113°F (-10°C to 45°C) |
| Assembly & Setup | The STRUTT ev¹ arrives in three boxes and requires assembly before use. Setup includes connecting the chassis, installing the seat and armrests, charging the battery, and completing device activation and initial software updates. A clear workspace and assistance with handling components may be needed. Follow the manufacturer's official assembly instructions and safety checks before operating the wheelchair. |

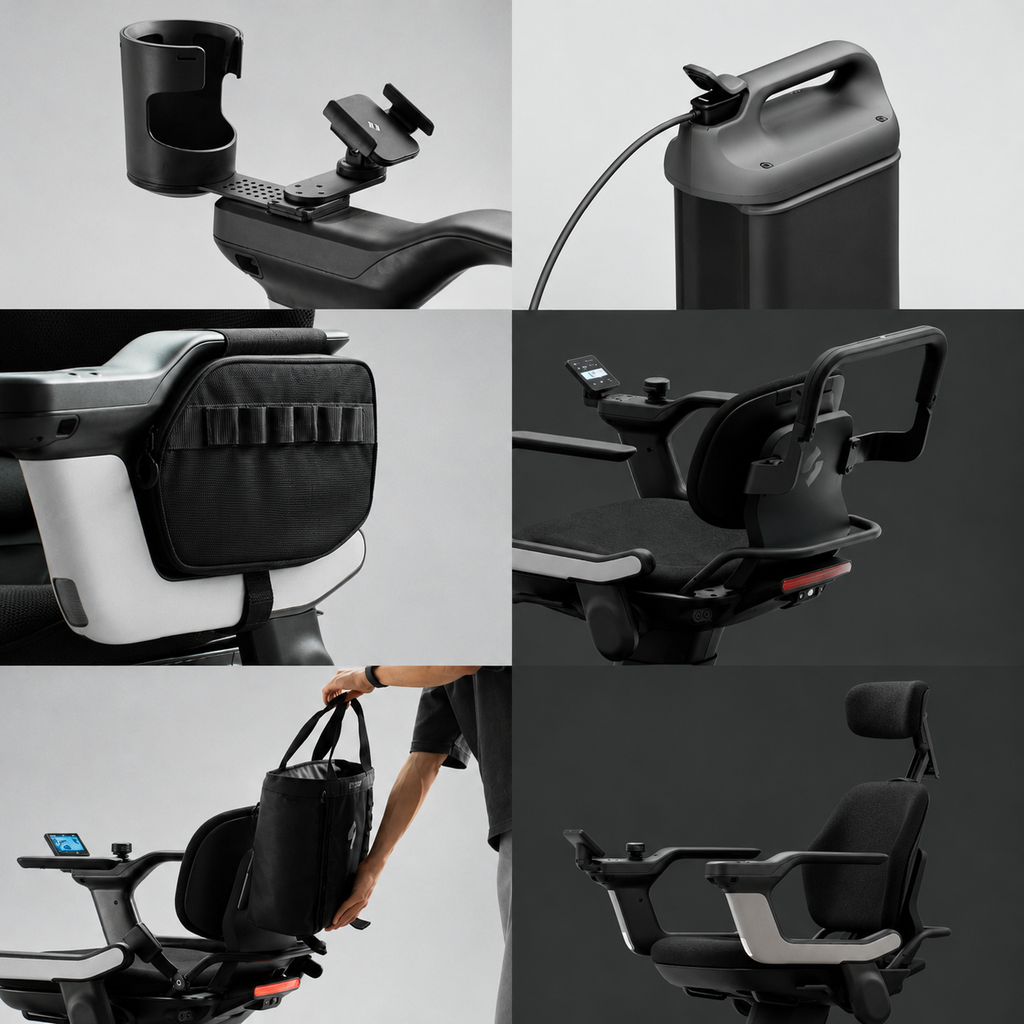

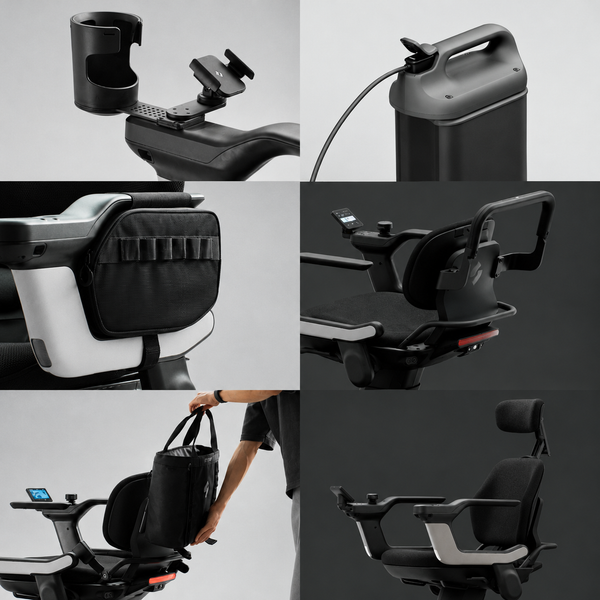

Personalize Your STRUTT ev¹
Enhance your STRUTT ev¹ with optional accessories designed to add comfort, convenience, and versatility to your everyday journeys. From additional support to smart storage solutions, customize your experience to suit your needs and lifestyle.

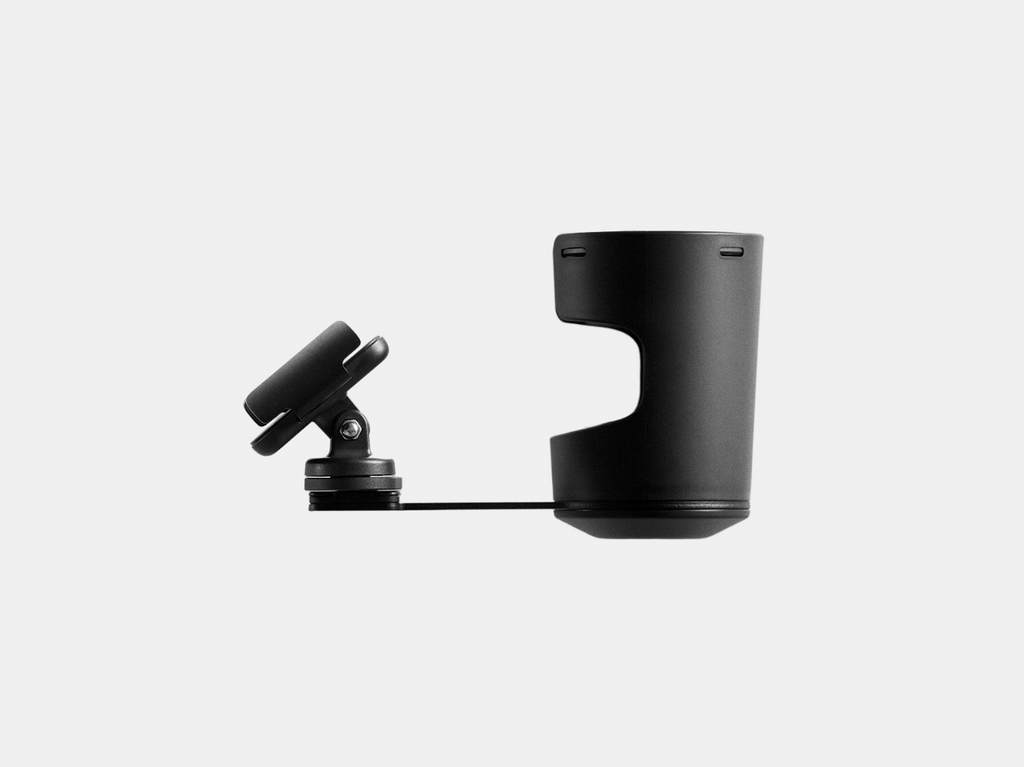

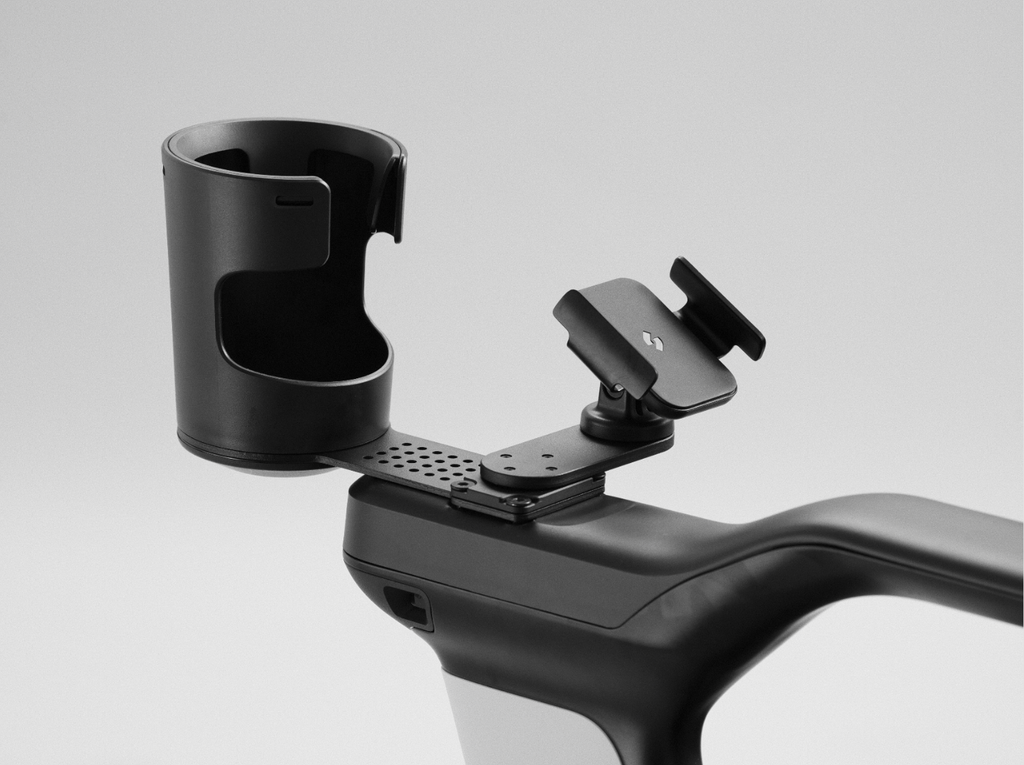

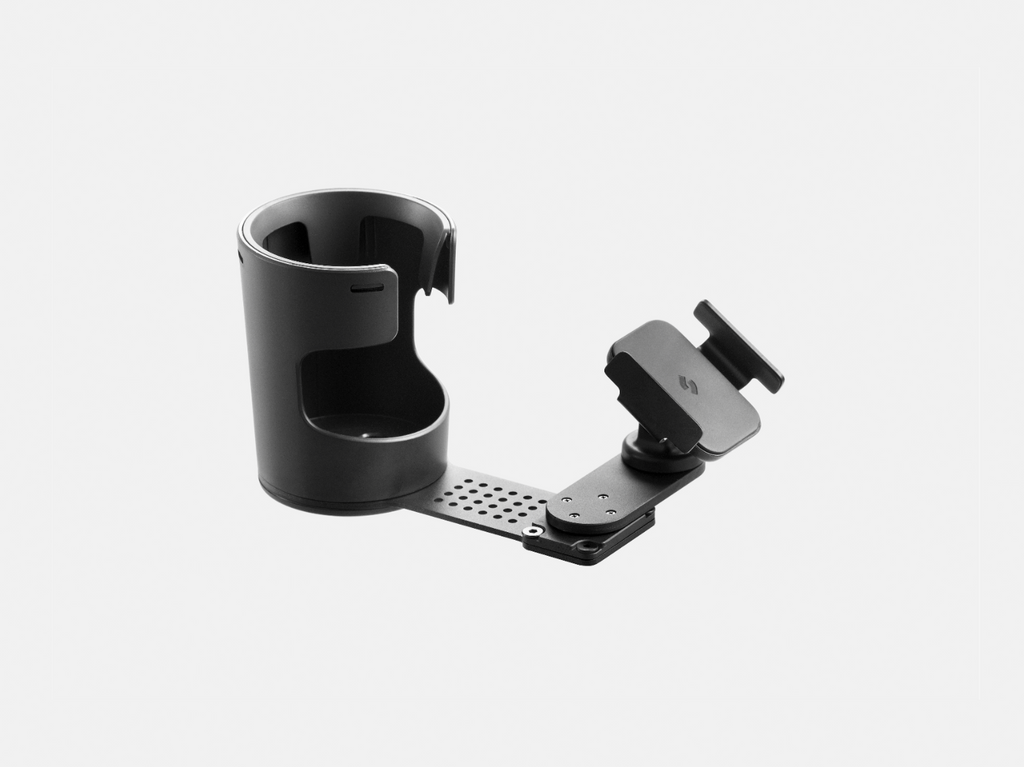

- Phone & Cup Mount: Keep your phone and beverage conveniently within reach while on the go.
- Flight-Safe Battery: An alternative battery option designed for air-travel-oriented use.

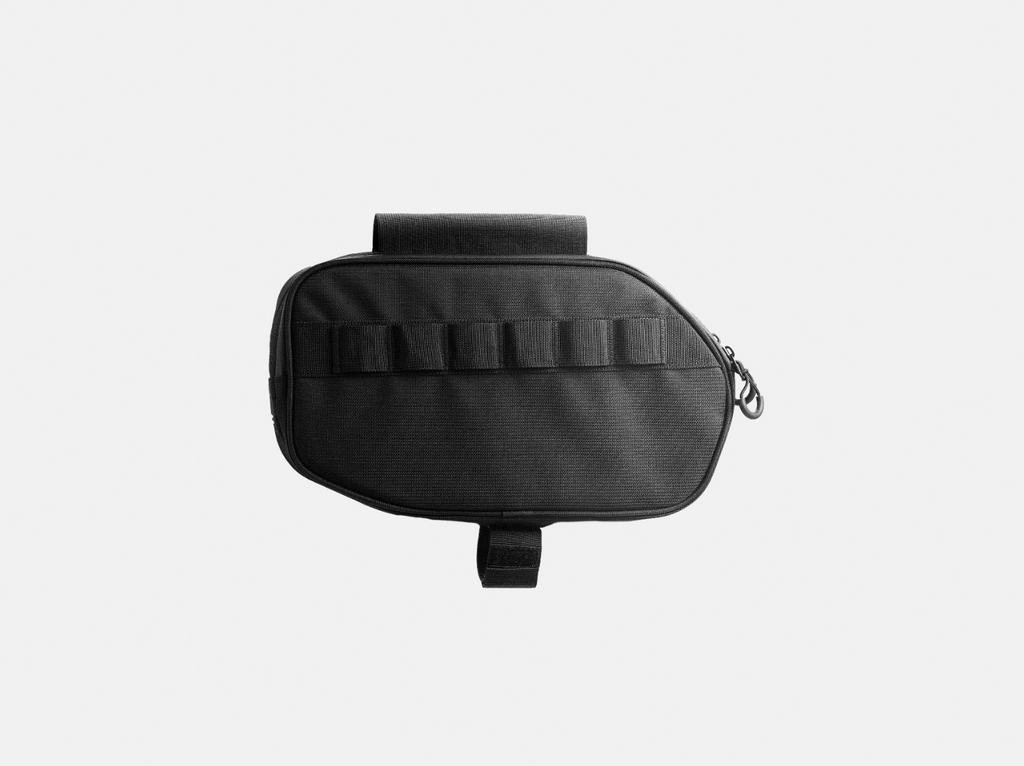

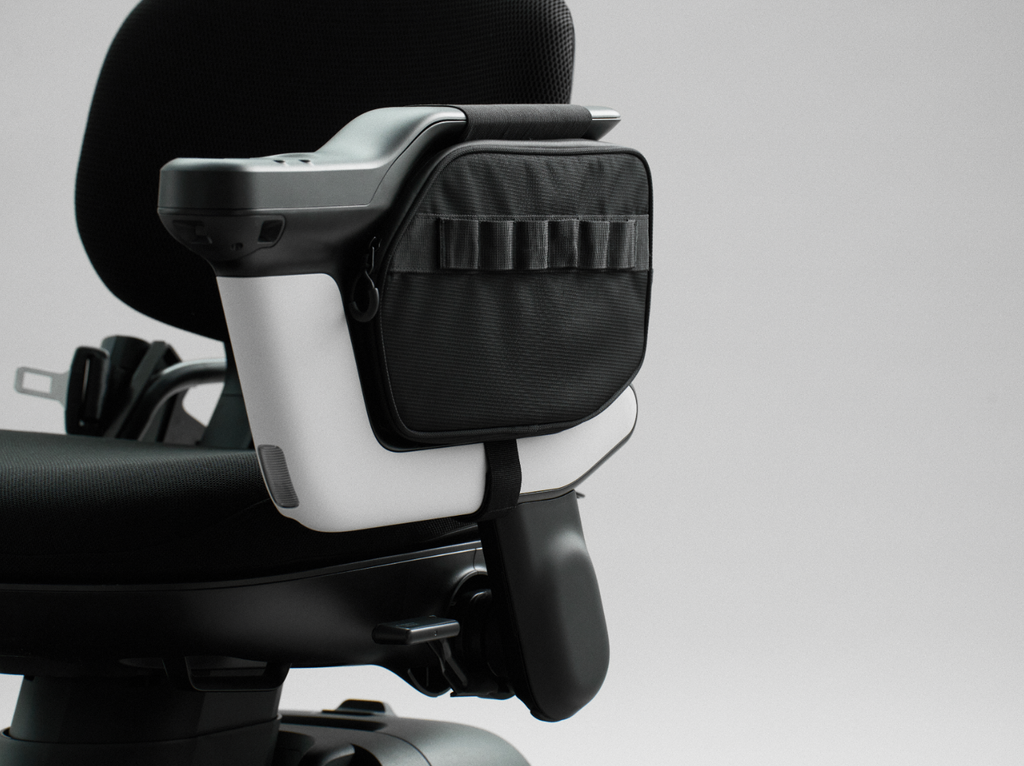

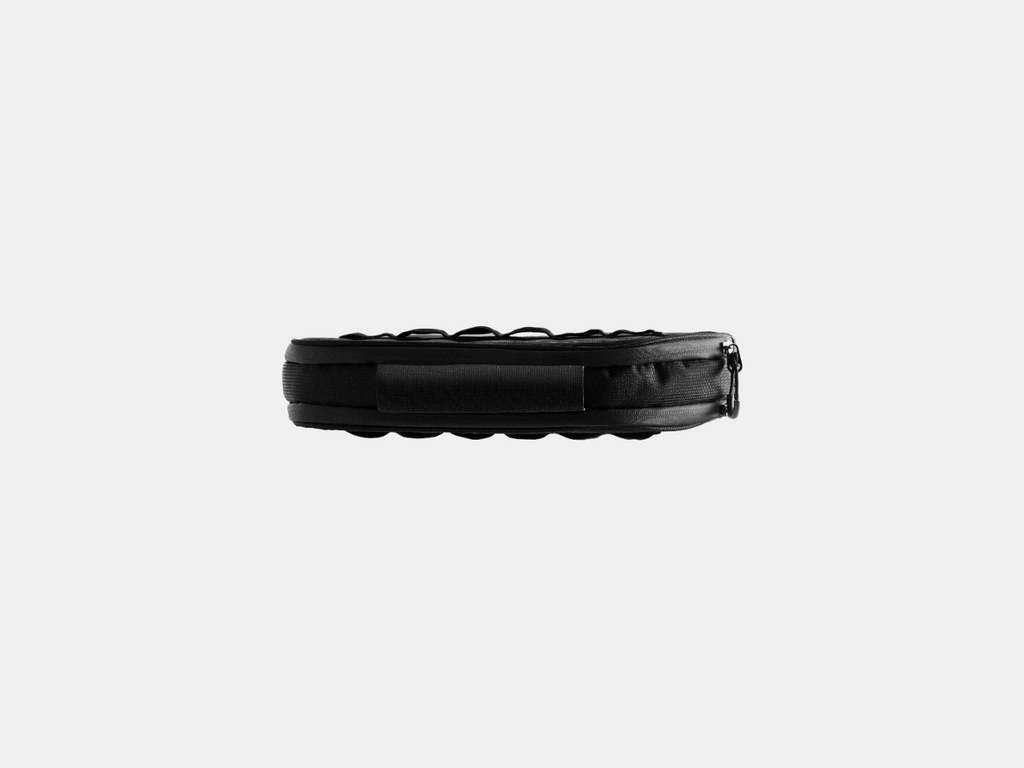

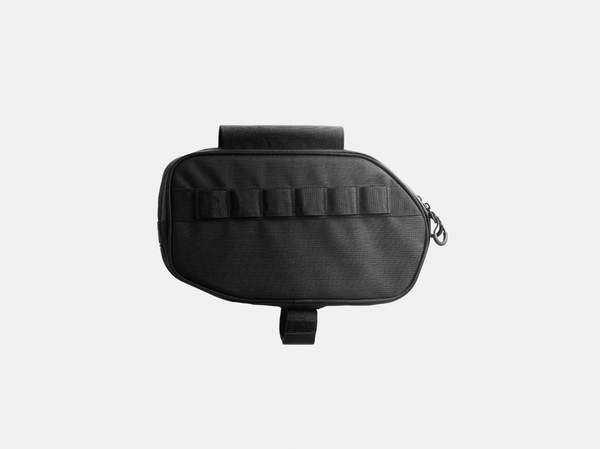

- Side Storage: Keep personal items close at hand for easy access throughout your journey.

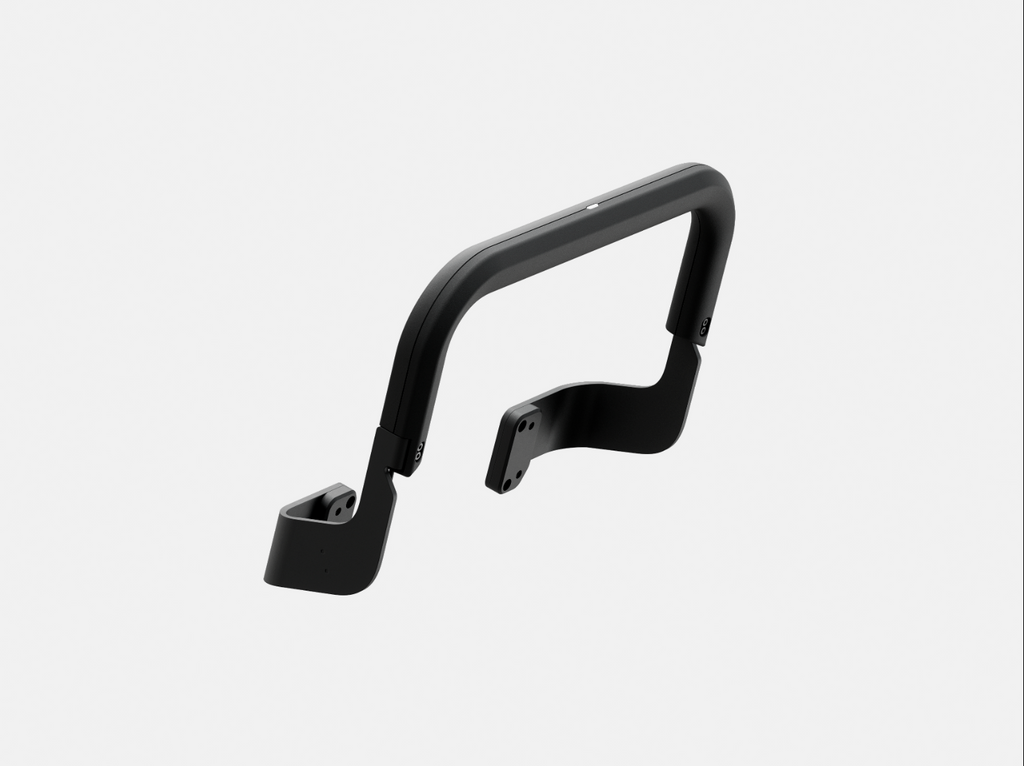

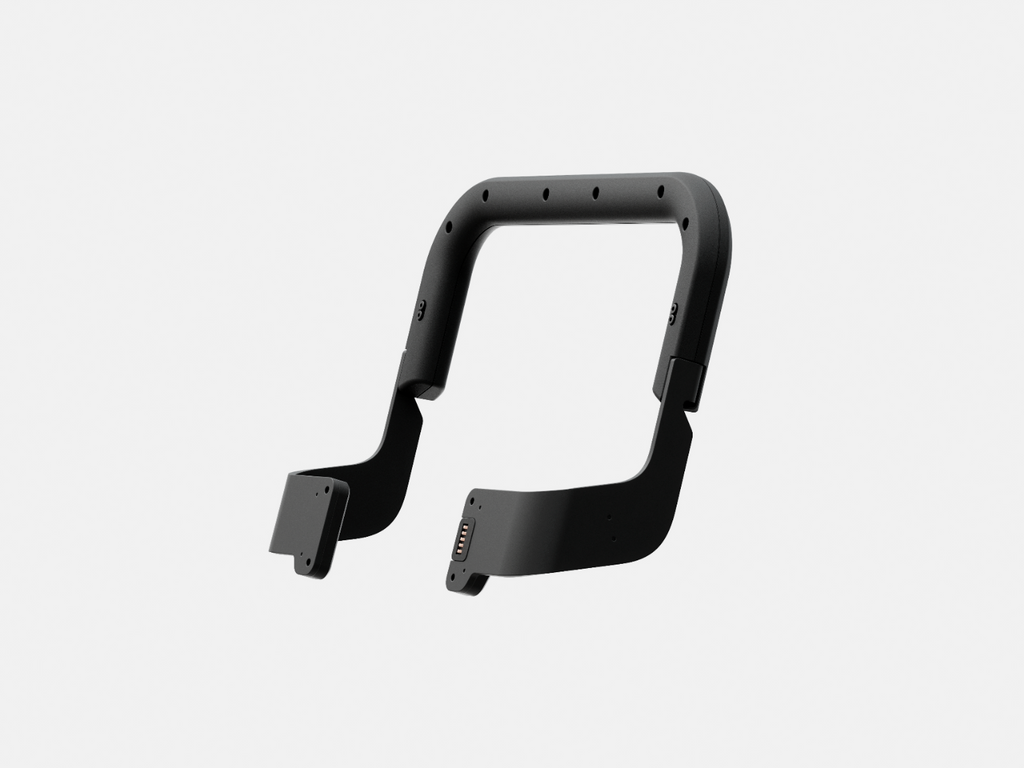

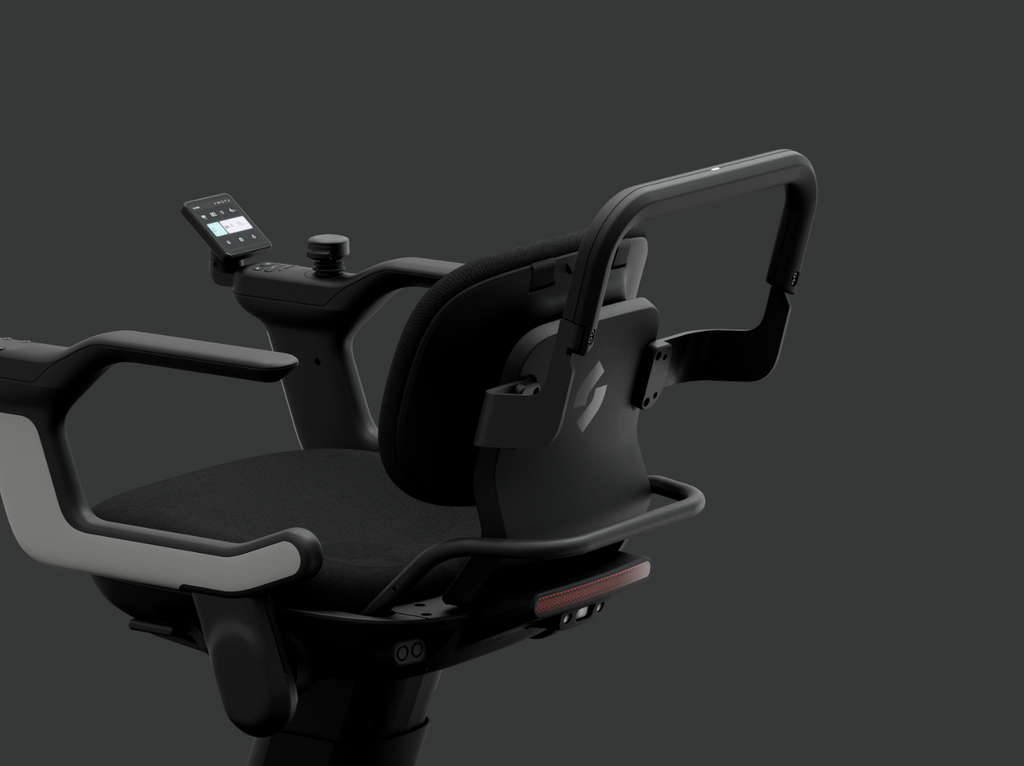

- Smart Push Handle: Add an alternative handle option for assisted pushing when needed.

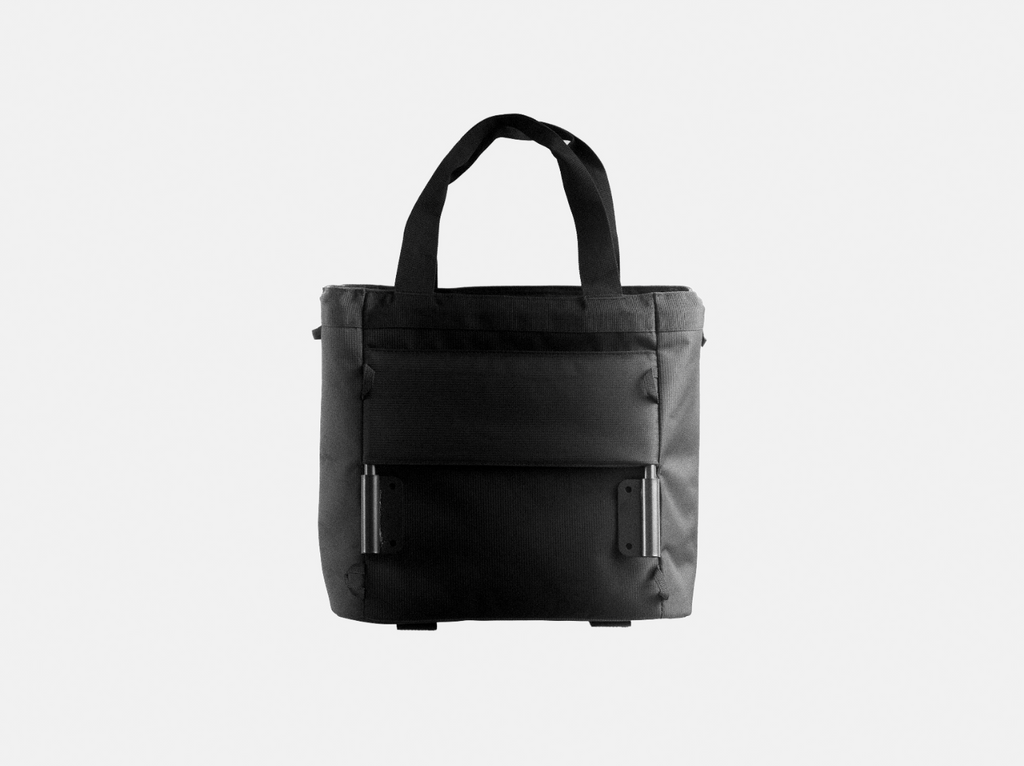

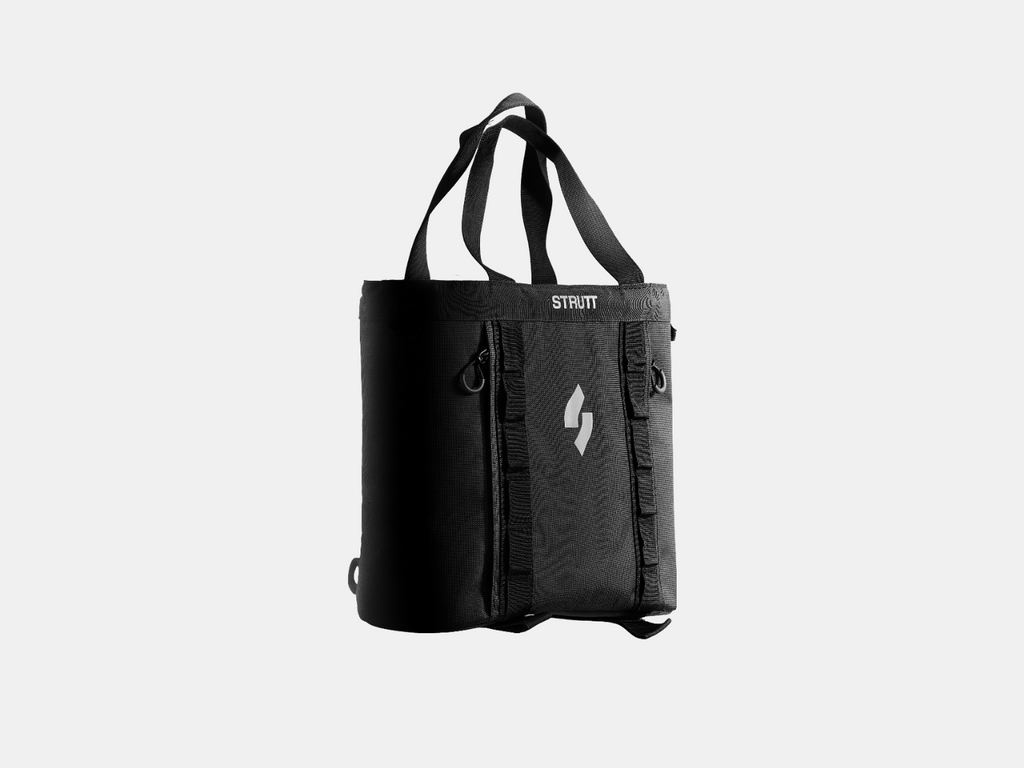

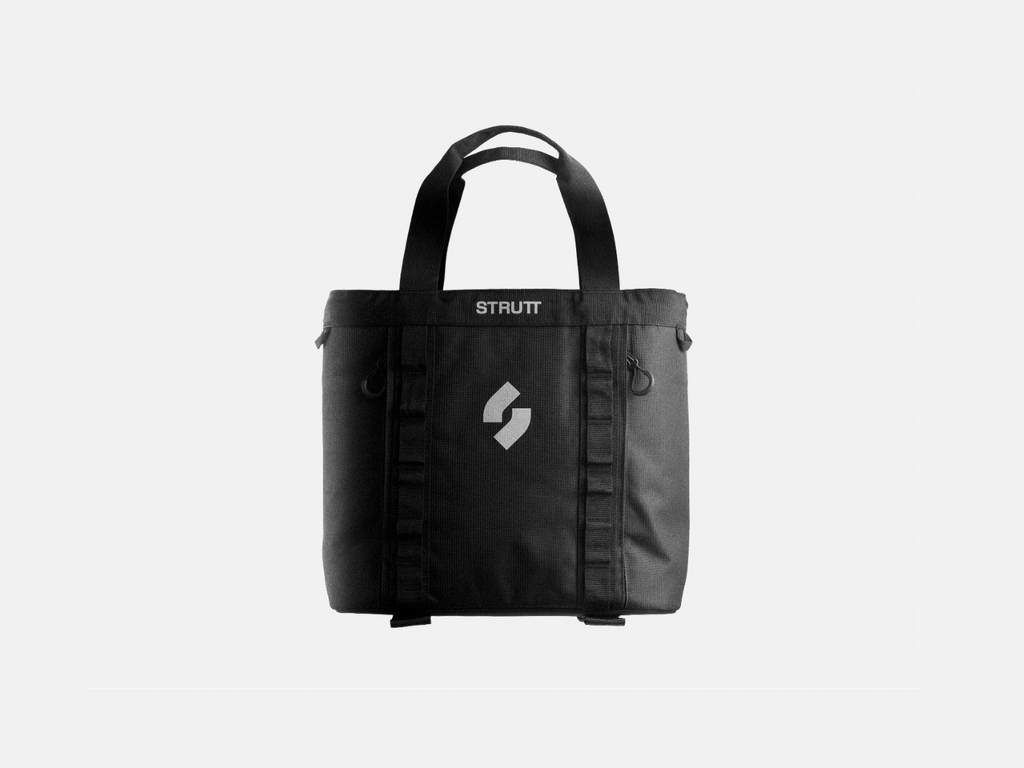

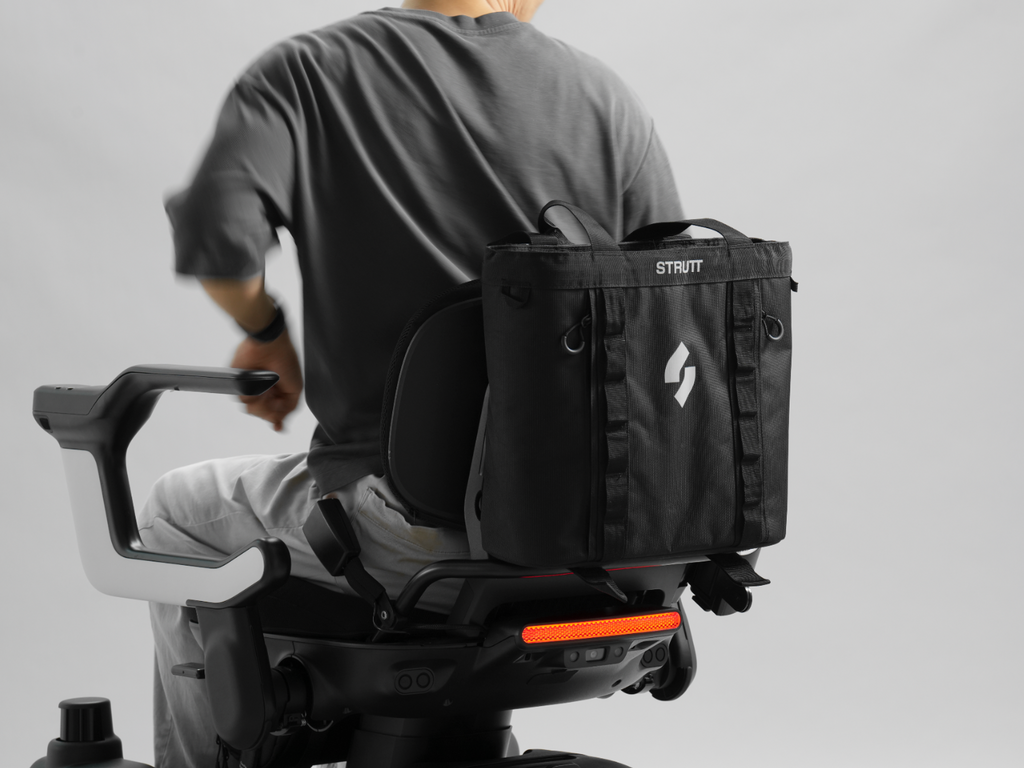

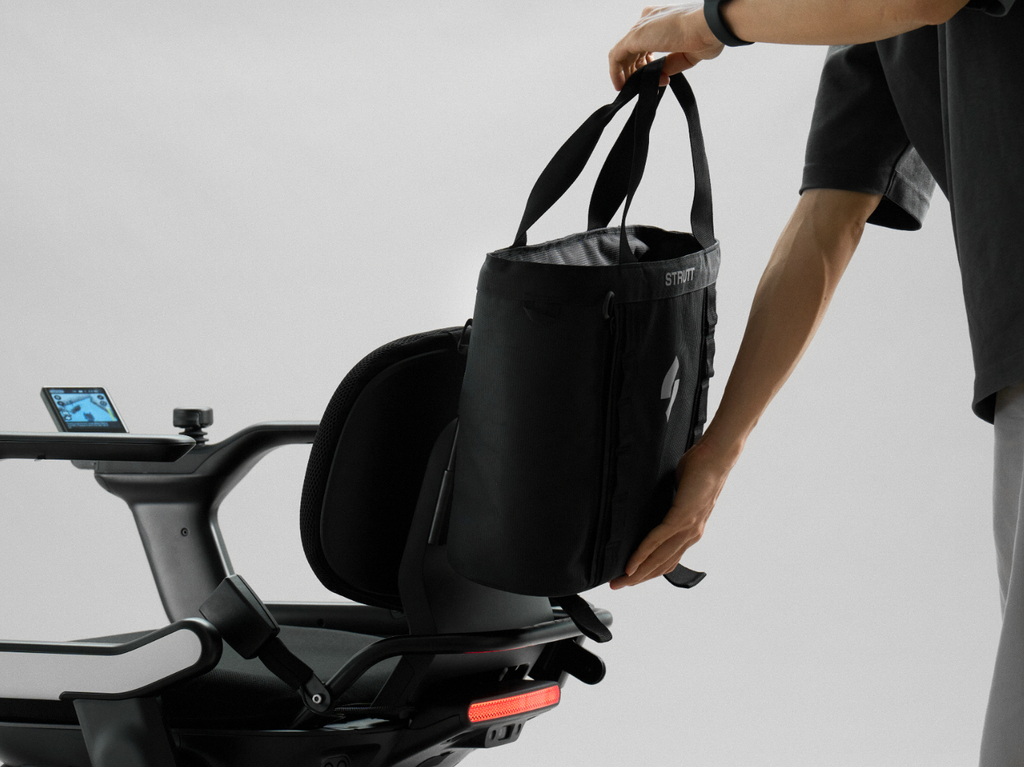

- Rear Storage: Create extra room for carrying everyday essentials.

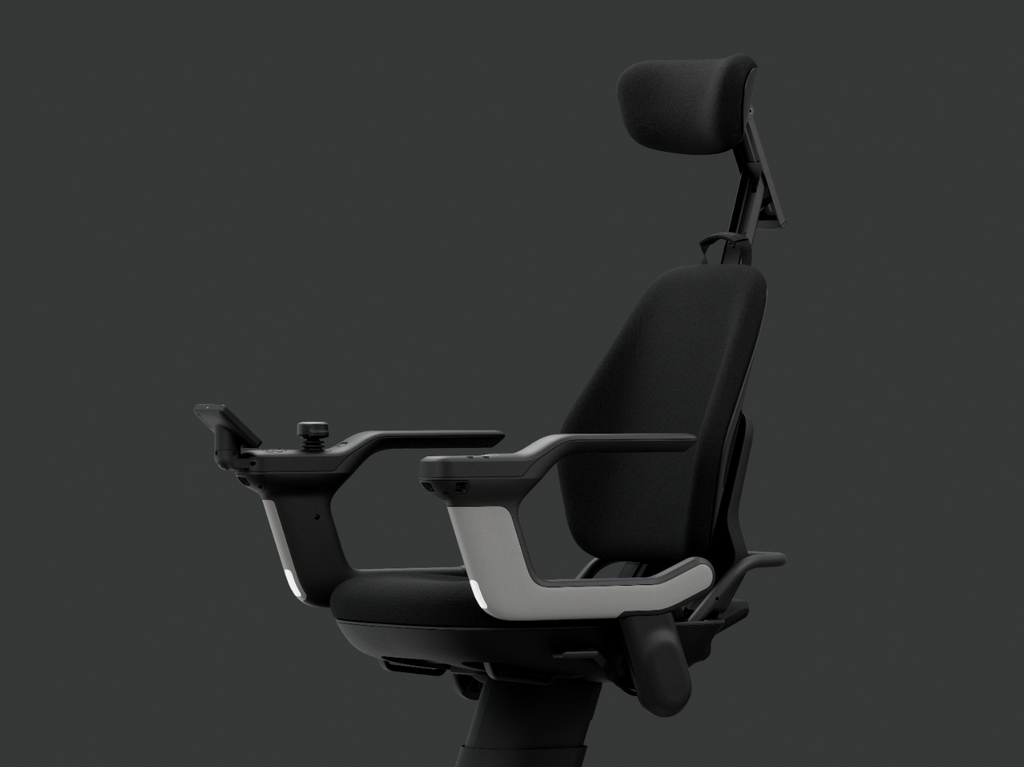

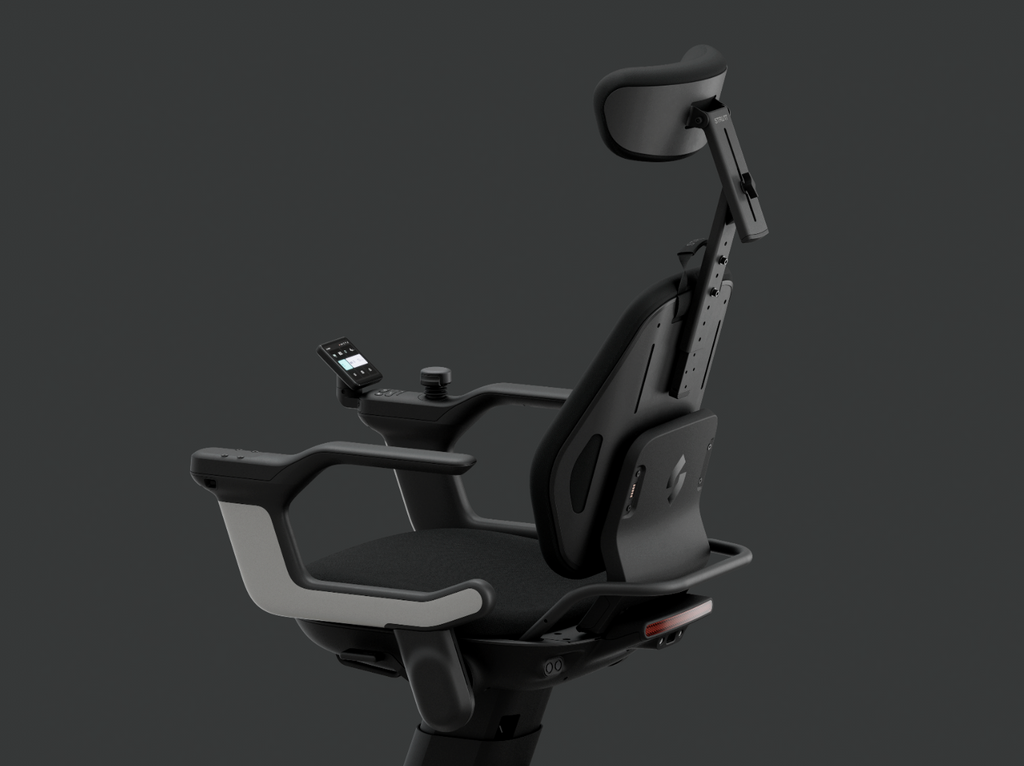

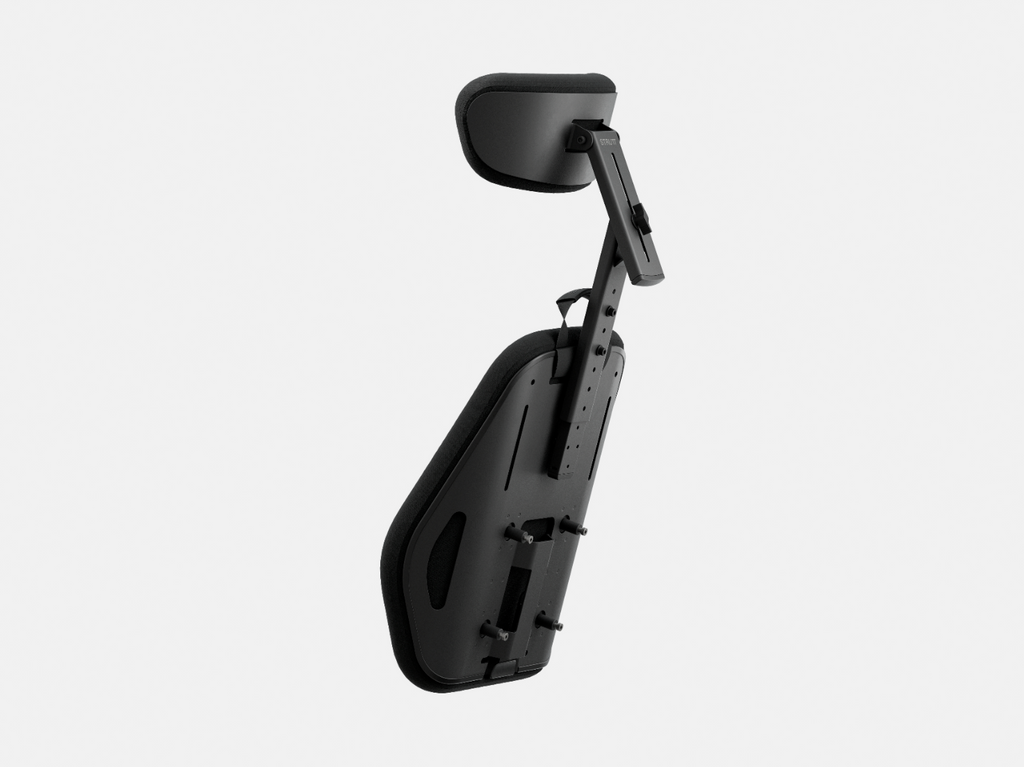

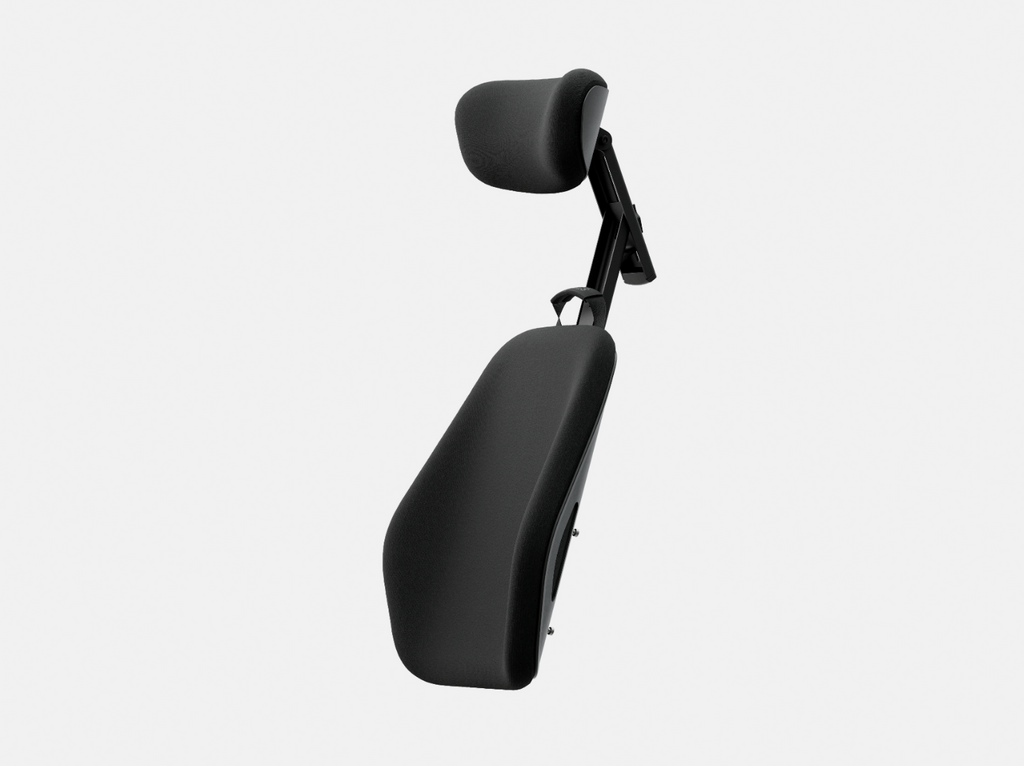

- Extended Backrest: Enjoy additional backrest support for a more personalized riding experience.
STRUTT ev¹ Smart Electric Mobility Vehicle User Manual & Warranty
Frequently Asked Questions (FAQs)
What is the maximum range of the STRUTT ev¹?
The STRUTT ev¹ offers a published range of up to 20 miles with evSense deactivated and up to 16.2 miles with evSense activated using the included 640 Wh long-range battery. Actual range may vary depending on terrain, user weight, driving conditions, and feature usage.
What is the maximum weight capacity of the STRUTT ev¹?
The STRUTT ev¹ supports a maximum user weight of 350 lbs. Its adjustable seating, armrests, and backrest also allow users to personalize the fit for greater comfort and support.
Can the STRUTT ev¹ navigate obstacles and uneven terrain?
Yes. Its Quad-Drive System combines four motors, active steering, and independent suspension to support controlled movement across varied surfaces. Intelligent sensors provide obstacle detection and braking assistance, while select navigation features offer additional steering and route guidance. Performance depends on terrain and operating conditions.
Is the STRUTT ev¹ easy to transport?
The STRUTT ev¹ separates into five modules, including the battery, for more manageable storage and transportation. The heaviest module weighs approximately 43.7 lbs. Due to the vehicle's overall weight, assistance or suitable lifting equipment may be needed when loading individual components into a vehicle.
Can I take the STRUTT ev¹ on an airplane?
The STRUTT ev¹ offers an optional 288 Wh flight-safe battery designed for air-travel-oriented use. However, airline approval is not guaranteed. Battery acceptance and travel requirements vary by airline and destination, so confirm the applicable requirements with your airline before traveling.
