Ergonomic Comfort Meets Everyday Mobility

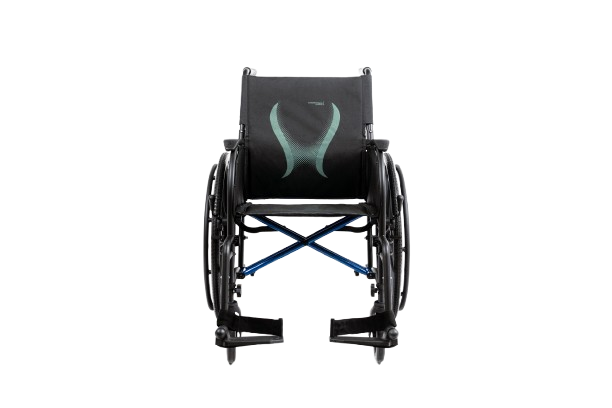

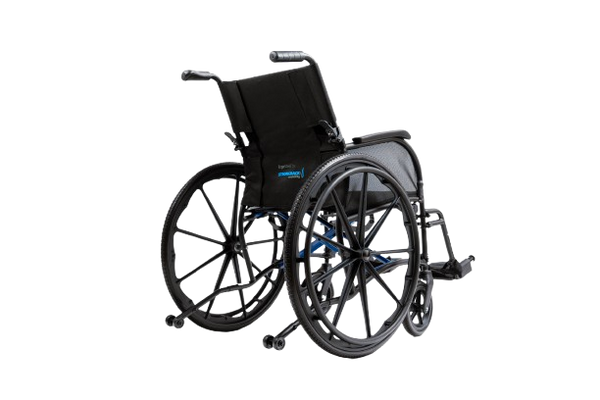

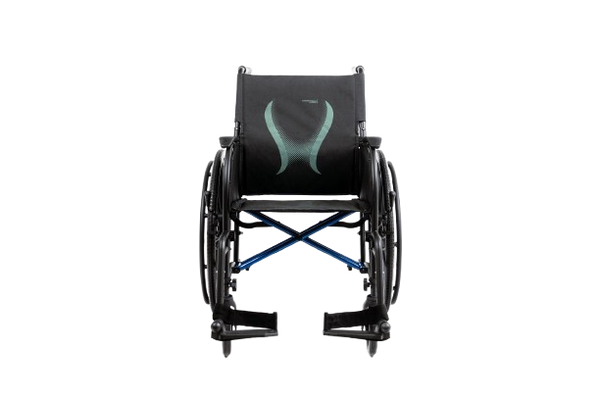

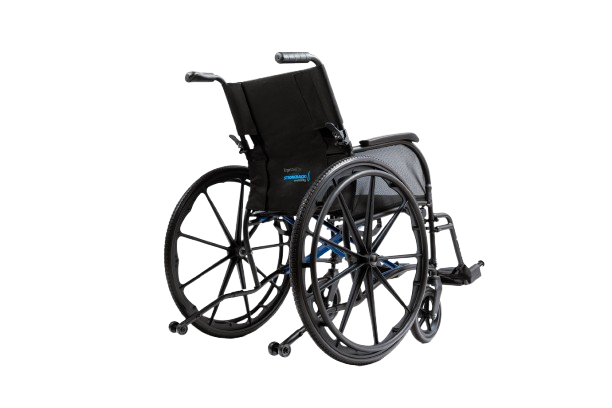

The Strongback ErgoSteel Wheelchair combines a durable steel frame with Strongback’s patented ergonomic backrest, designed to provide comfortable, supportive seating while promoting a more natural upright posture. The contoured backrest supports the lower back rather than forcing it into a flat seating position, while adjustable hook-and-loop straps allow the support to be customized for different users.
With a 300 lb weight capacity, self-propelled 24-inch quick-release rear wheels, swing-away detachable footrests, and a folding design, the ErgoSteel is well suited for everyday use at home, during transfers, and when traveling by car. The frame can be reduced to just 18.3 lb by removing the wheels, legrests, casters, and anti-tippers, making it easier to transport and store.
Built Around the Way You Move
- Patented Ergonomic Backrest: Contoured to support the natural curve of the lower back and encourage a comfortable, upright seating position.
- Adjustable Back Support: Broad hook-and-loop straps allow the backrest tension and firmness to be adjusted to better match the individual user.
- Durable Steel Frame: The steel construction provides a dependable foundation designed for everyday use while keeping the ErgoSteel at a more accessible price point.
- 300 lb Weight Capacity: Supports users weighing up to 300 lb and is tested to ISO 7176-15.
- Self-Propelled Design: Large 24-inch rear wheels with handrims allow users to propel themselves, while the chair can also be pushed by an attendant.
- Easy Vehicle Transport: The wheels, legrests, casters, and anti-tippers can be removed by hand, reducing the frame weight to 18.3 lb for easier lifting into a vehicle.

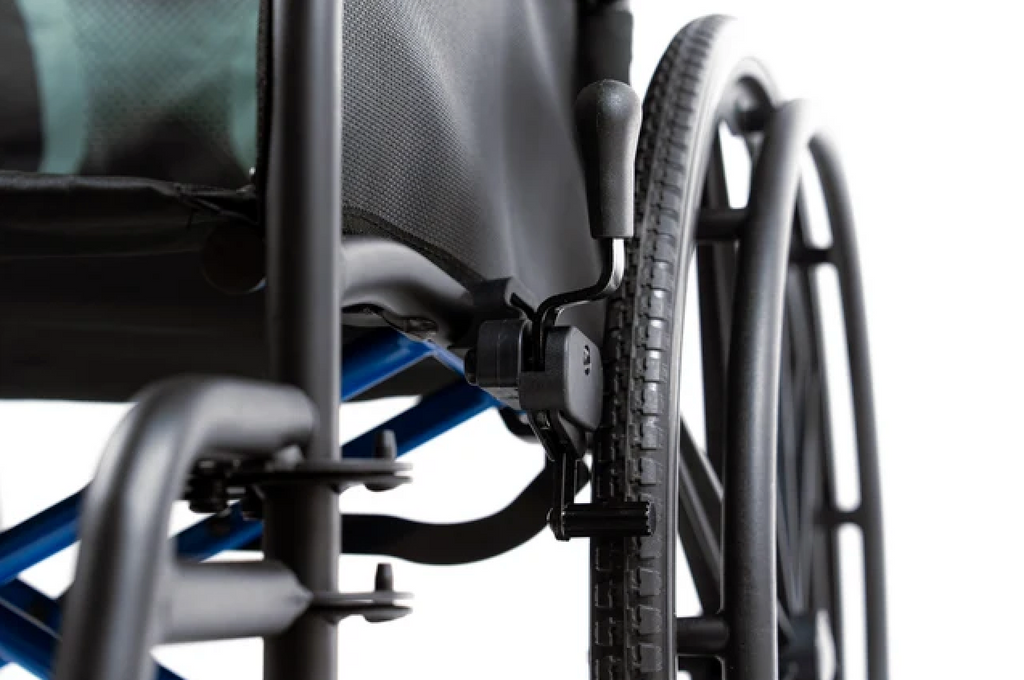

- Quick-Release Rear Wheels: The 24-inch rear wheels can be removed without tools in approximately two seconds.
- Transfer-Friendly Footrests: Swing-away, detachable footrests can be removed without tools to provide clearer access during transfers from a bed, sofa, or vehicle.
- Desk-Length Armrests: The shortened front section allows the wheelchair to pull closer to tables, desks, kitchen counters, and other work surfaces.
- Compact Folding Design: Folds to a narrow profile for storage and can fit through standard doorways, with the width reduced further when the rear wheels are removed.
- Durable Upholstery: Oxford nylon upholstery provides a hard-wearing, wipe-clean surface for everyday use.
Strongback ErgoSteel Wheelchair Specifications
| Frame Material | Steel |
| Propulsion | Self-propelled |
| User Weight Capacity | 300 lbs. |
| Testing Standard | ISO 7176-15 |
| Bare Frame Weight | 18.3 lbs. |
| Total Chair Weight | 35.7 lbs. |
| Seat Width | 18 in. |
| Seat Depth | 16.5 in. |
| Seat Height | 20 in. |
| Backrest Height | 18.5 in. |
| Seat / Backrest Angle | 12° / 24° |
| Backrest | Foldable with adjustable tension |
| Backrest Adjustment | Hook-and-loop straps |
| Seat & Backrest Upholstery | Oxford nylon |
| Armrests | Desk-length |
| Footrests | Swing-away and detachable |

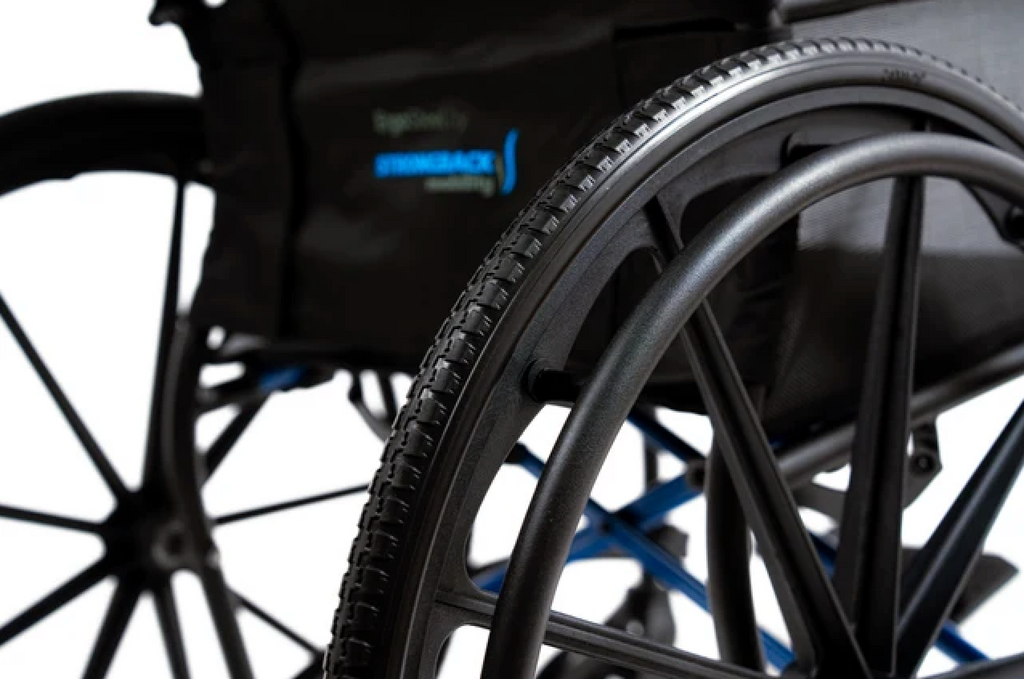

| Rear Wheels | 24 in., quick-release |
| Folded Dimensions (L × W × H) | 25 × 13 × 25 in. |
| Unfolded Dimensions (L × W × H) | 44 × 27 × 37 in. |
| Wheel Removal | Tool-free |
| Legrest Removal | Tool-free |
| Weight clarification | The 18.3 lb figure refers to the frame configuration after the wheels, legrests, casters, and anti-tippers are removed. The 35.7 lb figure represents the chair with the frame, wheels, and legrests assembled, excluding anti-tippers and shipping materials. |
| User Warranty | Frame: 2 Years, Seat, Footrests, and Other Auxiliary Parts: 12 Months |
Strongback ErgoSteel Wheelchair User Manual
Frequently Asked Questions (FAQs)
What makes the Strongback ErgoSteel Wheelchair different from a standard wheelchair?
The ErgoSteel features Strongback’s patented ergonomic backrest, which is contoured to support the natural curve of the lower back rather than using a flat back panel. This design is intended to encourage a more natural upright seating position and provide greater comfort during extended periods of sitting.
What is the weight capacity of the Strongback ErgoSteel Wheelchair?
The ErgoSteel supports users weighing up to 300 lbs and has been tested to ISO 7176-15 standards.
How much does the Strongback ErgoSteel Wheelchair weigh?
The fully assembled chair weighs 35.7 lbs with the frame, wheels, and legrests installed. For transportation, the wheels, legrests, casters, and anti-tippers can be removed by hand, reducing the frame configuration to 18.3 lbs for easier lifting and storage.
Can the Strongback ErgoSteel Wheelchair be used for self-propulsion?
Yes. The ErgoSteel is a self-propelled wheelchair equipped with 24-inch rear wheels and handrims, allowing the user to propel the chair independently when able. An attendant can also push the wheelchair from behind.
Is the backrest adjustable?
Yes. The ErgoSteel's ergonomic backrest uses broad hook-and-loop straps that allow the tension and firmness of the back support to be adjusted. This helps users customize the level of lower-back support to their individual needs.
