Description

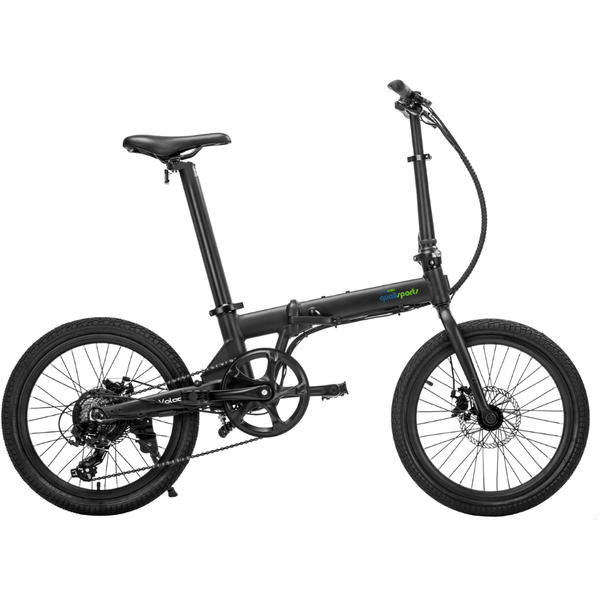

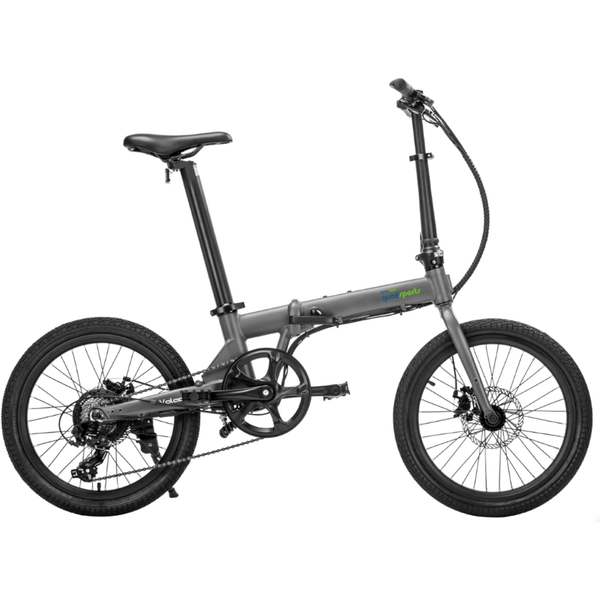

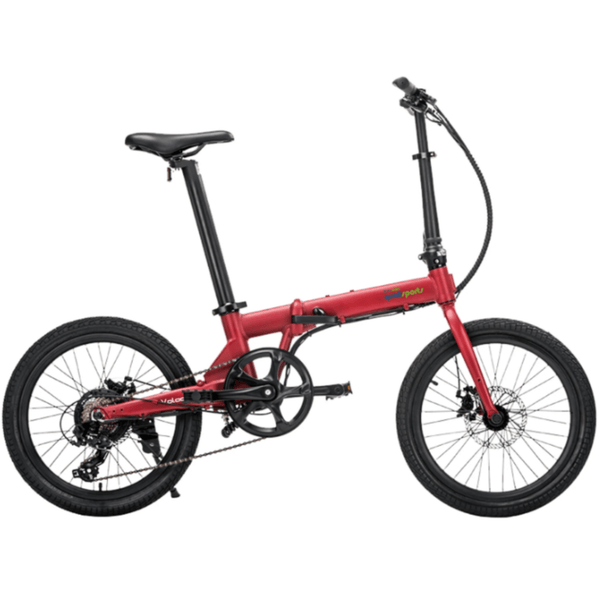

The Volador folding E-bike from Qualisports has a 31 mile range per charge, 20mph top speed and has a charging time of only 3 hours. The folding capability provides the user with ease of storage and better traveling requirements. The Volador has optional accessories to choose from.
Specifications
| Product Name: Volador | Motor: MXUS 350W Brushless Geared DC Motor | Brakes: 160mm Disc Brakes |
| Model Name: QSEB02 | Rated Output Power: 350W | Rim: 20 inch Al-alloy 13G36H |
|
Size: 58*38*44 inch |
Motor Efficiency: ≥80% | Tire: Kenda 20*1.95 |
|
Folded Size: 32.68*15.75*26.38 inch |
Rated RPM: 265±10 r/min | Chain Wheel: Prowheel 52T |
| Wheelbase: 39.5 inch | Rated Voltage: 36V | Free Wheel: Shimano 7 Speed |
| Net Weight: 38 lbs | Max Torque: 40 N.m | Front Hub: Sigma Al-alloy |
| Range: 31 miles (PAS) | Overcurrent Protection: 12±1A | Chain: KMC |
| Max. Load: 220 lbs | Low-voltage Protection: 30±1V | Handle Bar: Promax |
| Max. Speed: 20 MPH | Kwh: ≤1.2 Kw.h | Display: Kunteng LCD |
| Charging Time: 3 Hrs | Modes: 5 Levels + Throttle + Walk Assist +Cruise | Controller: Kunteng Sine Wave FOC |
| Battery Type: Samsung Lithium-ion | Tire Diameter: 20 inch | Brake levers: Al-alloy Ebike Lever |
| Battery Capacity: 36V 7Ah | Frame: 20 inch 6061 Al-alloy Foldable | Saddle: KNUS |
| Noise: ≤ 62 dB(A) | Front Fork: 20 inch 6061 Al-alloy | Pedal: Foldable |
Folding Frame
The VOLADOR frame and fork is made of industry-grade Aluminum Grade 6061. Our new design is sleek, light, and strong enough for a Cyclist weighing 220lbs to feel comfortable on it.

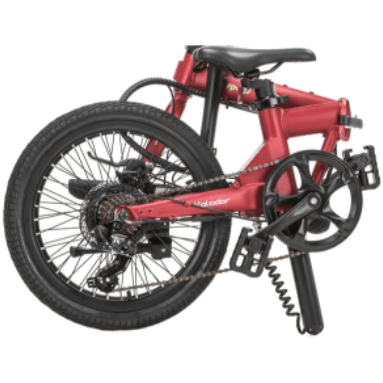

Easily folds down to a compact size for easy storage and transportation.
Professional Assembly/Tuning Recommended
Battery
The VOLADOR distinctive look is achieved through the work and dedication of our designers and engineers combined efforts to strategically place the Lithium battery within the seat-post, integrating functionality and design to power the e-bike.
Rated at 30 Miles *Results can vary based on the road conditions (flat versus inclines) as well as weather conditions such as wind or light breeze and the actual Cyclist weight.
Multifunctional LCD Display
The on-screen computer lets you easily see your speed and battery life remaining.
Motor
Customized 350W high speed geared brushless motor with enough pulling power so you can effortlessly conquer an 18° climb. Brushless motors are smoother, more efficient and no magnetic drag when you ride the bike without any power.
Shimano 7-Speed Gears
The Volador is equipped with a Shimano Tourney 7 speed mechanical gear system, so every Qualibiker can experience a much more fantastic riding especially when you are hilling.
PAS Pedal Assist System
Our multifunction fully integrated large LCD display features a 12 point sensor and “FOC” technology (Field Oriented Control). With FOC we can control and drive motors with higher efficiency and less noise and operates in sync with our PAS “Pedal Assist System”.
Four Riding Styles
You have four choices of either riding with PAS, or with the Cruise Control Mode, Pedal like a normal bicycle or throttle mode (available). The intuitive sensor can detect every mode and precisely respond creating a seamless riding experience.
Two-Ways Charging
The seat-post battery is removable so you can either charge it in the bike or separately in your room. The battery is a 36V 7Ah Samsung Battery capacity which charges in 3 Hours
Disc-Brake System
The Volador features Front and Rear disc brakes to keep you safe. When the brakes are engaged it triggers a safety mechanism that disengages the motor and shuts down the power system.
Adjustable Seat Height
This bike can comfortably accommodate a Cyclist ranging from 150 – 195 cm— (5′ to 6’3″) so mom, dad and the kids can all share it.
FRONT RACK IMAGE
