Description

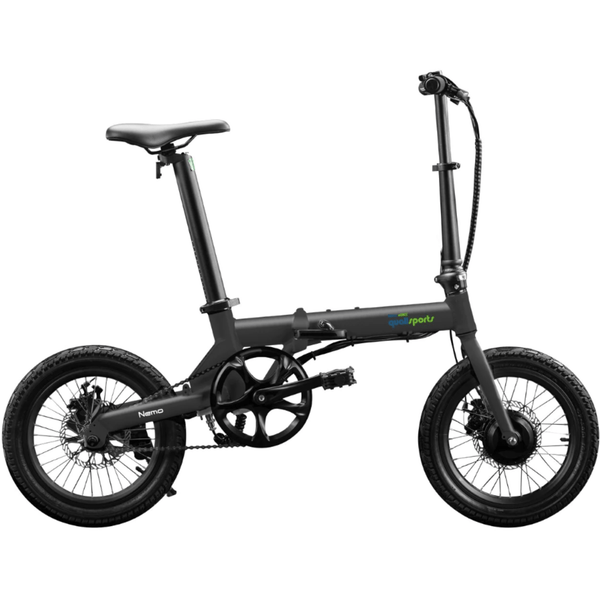

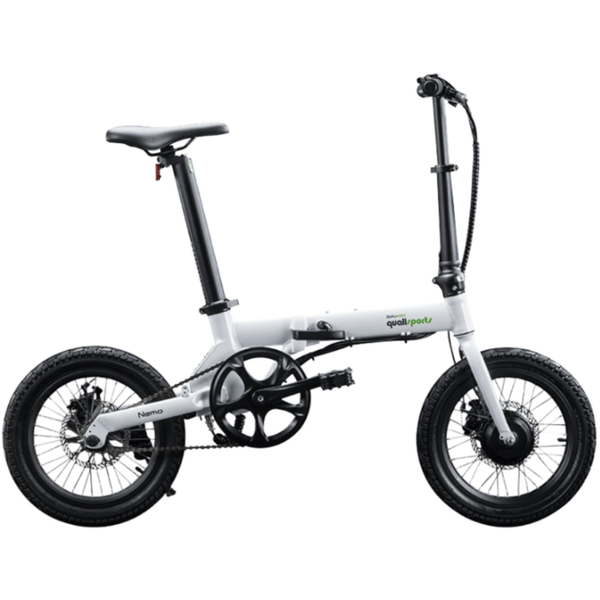

Nemo from Qualisports has a 31 mile range per charge, 16mph top speed and it is equipped with a removeable seat post battery, so you can either charge it in the bike or separately in your room. It is foldable, which makes it easier to store and travel with.
Specifications
| Product Name: Nemo | Motor : 250W Brushless Geared DC Motor | Brakes: 160 mm Disc Brakes |
| Model Name: QSEB01 | Rated Output Power: 250W | Rim: 16 inch Al-alloy 13G36H |
|
Size: 51*23*38 inch |
Motor Efficiency: ≥80% | Tire: Kenda 16*2.125 |
|
Folded Size: 29.30*15.75*25.20 inch |
Rated RPM: 300 r/min | Chain Wheel: Prowheel 52T |
| Wheelbase: 36.5 inch | Rated Voltage: 36V | Flywheel: 14T |
| Net Weight: 31 lbs | Max Torque: 40 N.m | Rear Hub: Sigma Al-alloy |
| Range: 31 miles (PAS) | Overcurrent Protection: 12±1A | Chain: KMC |
| Max. Load: 220 lbs | Low-voltage Protection: 30±1V | Handlebar: Promax |
| Max. Speed: 16 MPH | Kwh: ≤1.2 Kw.h | Display: Kunteng LCD |
| Charging Time: 3 Hrs | Modes: 5 Levels + Throttle + Walk Assist +Cruise | Controller: Kunteng Sine Wave FOC |
| Battery Type: Samsung Lithium-ion | Tire Diameter: 16 inch | Brake Levers: Al-alloy Ebike Lever |
| Battery Capacity: 36V 7Ah | Frame: 16 inch 6061 Al-alloy Foldable | Saddle: KNUS |
| Noise : ≤ 62 dB(A) | Front Fork: 16 inch 6061 Al-alloy | Pedal: Foldable |
Folding Frame
Aluminum Alloy Grade 6061 frame and front fork, totally new design, passed all vibration tests, light but strong enough to hold a 220lbs rider. It could also be folded with 3 easy steps for storage or transporting in your vehicle.
Professional Assembly/Tuning Recommended
Motor
Customized 250W high speed geared brushless motor, weight only 2.2KG but with 40 N.M torque, So you can uphill over 18°. It’s so powerful that you don’t have to worry about hills or against the wind without any sweat. What’s more, with a built-in clutch, you will never feel any magnetic resistance when riding without any power—it’s a pure, comfortable bike.
Battery
To make our Qualibike physically appealing, we created a unique seat-post lithium battery as our power system. Most people won’t recognize it’s an e-bike at their first sight. And BMS system is also important, It keeps your battery safe from over-charging, over overheat and safe from reaching high temperatures. The BMS also manages all the cells to work more efficiently to offer you a longer range. The seat-post battery is removable so you can either charge it in the bike or separately in your room.
Disc-Brake
Front and rear disc break keep you safe from any emergency with brake distance within 3 meters. Also, our e-bike levers offer another safety measure. When the brakes are applied the system disengages the Cruise, PAS and Throttle systems off.
PAS Riding System
Our multifunction fully integrated large LCD display features a 12 point sensor and “FOC” technology (Field Oriented Control). With FOC we can control and drive motors with higher efficiency and less noise and operates in sync with our PAS “Pedal Assist System”.
REAR RACK IMAGE
Nemo Review
