Description

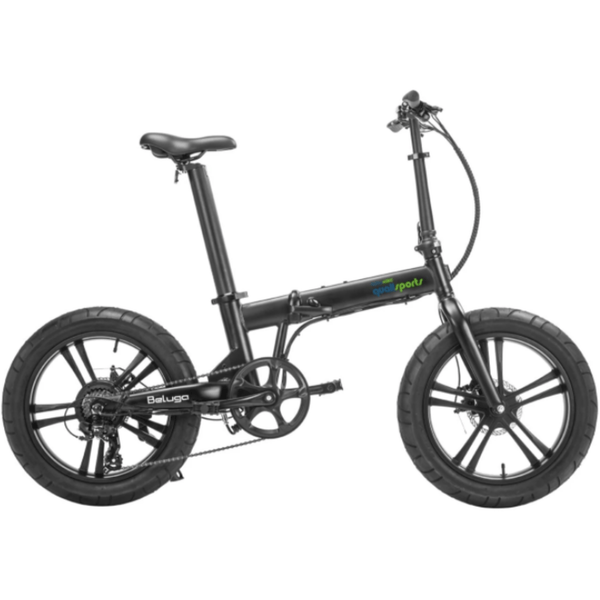

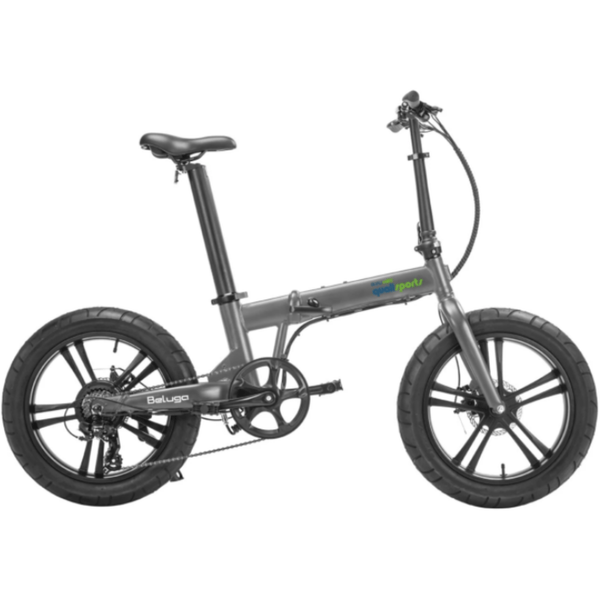

The Beluga is a folding E-bike from Qualisports. It has several notable features, such as, 25+ miles on a single charge, 20mph top speed and has a battery charge time of only 7 hours.
Please be aware the difference of the tires: The tires of our Beluga in the picture are Innova, and now they are upgraded to CST's 20*4.0 big-boat, which is more robust and puncture-proof.
Professional Assembly/Tuning Recommended
Specifications
| Product Name: Beluga | Motor: MXUS 500W Brushless Geared DC Motor | Brakes: 160mm Disc Brakes |
| Model Name: QSEB04 | Rated Output Power: 500W | Rim: 20 inch Al-alloy Blade |
|
Size: 65.5*25.5*46.5 inch |
Motor Efficiency: ≥ 78% | Tire: CST Big Boat 20 x 4" |
|
Folding Size: 34.25*18.50*28.35 inch |
Rated RPM: 310±10 r/min | Chain Wheel: Prowheel 52T |
|
Wheelbase: 43.5 inch |
Rated Voltage: 48V | Free Wheel: Shimano 14-28T |
| Net Weight: 66 lbs | Max Torque: 60 N.m | Derailleur: Shimano 7 Speed |
| Range: 25+ Miles (PAS) | Overcurrent Protection: 15±1A | Chain: KMC |
| Max. Load: 300 lbs | Low-voltage Protection: 30±1V | Handle Bar: Promax |
| Max. Speed: 20 MPH | Kwh: ≤ 1.2 Kw.h | Display: Kunteng LCD |
| Charging Time: 7 Hrs | Modes: 5 Levels + Throttle + Walk Assist + Cruise | Controller: Kunteng Sine Wave FOC |
| Battery Type: Samsung Lithium-ion | Tire Diameter: 20 x 4 inch | Brake Levers: Al-alloy Ebike lever |
| Battery Capacity: 48V 10.5Ah | Frame: 20 inch 6061 Al-alloy Foldable | Saddle: KNUS |
| Noise: ≤ 62 dB(A) | Front Fork: 20 inch 6061 Al-alloy | Pedal: Foldable |

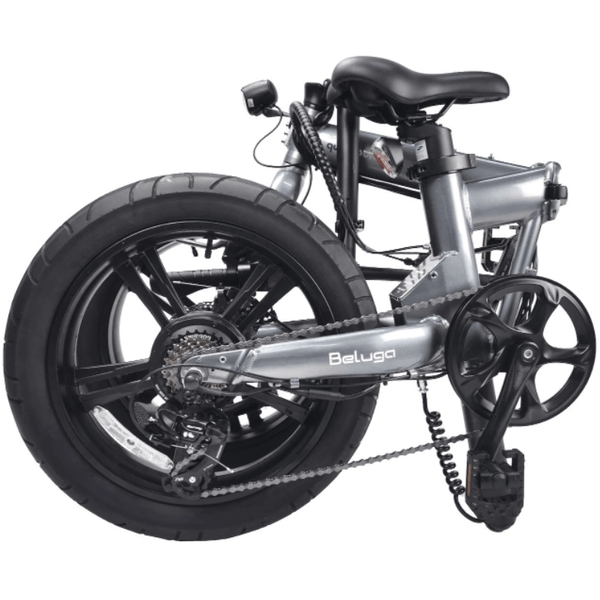

Folding Frame
The Beluga frame and fork is made of industry grade Aluminum Grade 6061. Our new design is sleek, light and strong enough for a Cyclist weighing 300lbs to feel comfortable on it.
Easily folds down to a compact size for easy storage and transportation.
MOTOR
Customized 500W high speed geared brushless motor with enough pulling power so you can effortlessly conquer a 18° climb. Brushless motors are smoother, more efficient and no magnetic drag when you ride the bike without any power.
Shimano 7-Speed Gear Shifting System
The Beluga is equipped with a Shimano Tourney 7 speed mechanical gear system, so every Quali-Biker can experience a much more fantastic riding especially when you are hilling.
PAS Pedal Assist System
Our multifunction fully integrated large LCD display features a 12 point sensor and “FOC” technology (Field Oriented Control). With FOC we can control and drive motors with higher efficiency and less noise and operates in sync with our PAS “Pedal Assist System”.
Multifunctional LCD Display
You have four choices of either riding with PAS, or with the Cruise Control Mode, Pedal like a normal bicycle or throttle mode (available). The intuitive sensor can detect every mode and precisely respond creating a seamless riding experience.
Battery
The BELUGA’s distinctive look is achieved through the work and dedication of our designers and engineers combined efforts to strategically place the Lithium battery within the seat-post, integrating functionality and design to power the e-bike.
The seat-post battery is removable so you can either charge it in the bike or separately in your room. The battery is a 48V 10.5Ah Samsung Battery capacity which charges in 7 Hours.
Braking System
The Beluga features Front and Rear disc brakes to keep you safe. When the brakes are engaged it triggers a safety mechanism that disengages the motor and shuts down the power system.
FRONT RACK IMAGE
