Complete 4-in-1 Pressure Relief Therapy for Advanced Patient Comfort

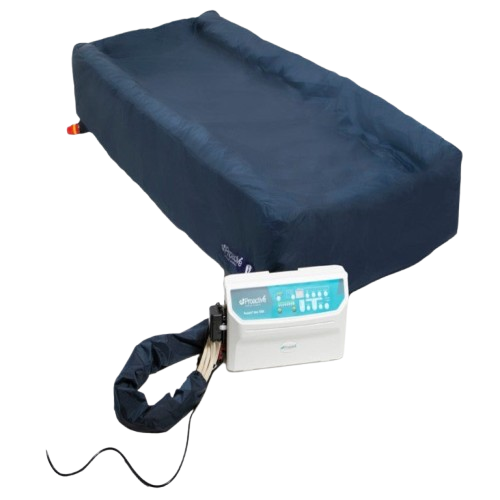

The Proactive Medical Protekt® Aire 7000 Mattress System is an advanced therapeutic support surface designed to provide comprehensive pressure relief, enhanced patient comfort, and effective skin protection in healthcare, long-term care, and home care environments.
Combining four therapeutic technologies in one complete mattress system—lateral rotation, low air loss, alternating pressure, and pulsation therapy—the Protekt Aire 7000 helps deliver a proactive approach to pressure injury prevention and patient positioning. Its integrated therapy modes work together to promote pressure redistribution, improve airflow and moisture management, and support greater comfort for patients who may spend extended periods in bed, making it an ideal solution for facilities and caregivers seeking a versatile, high-performance pressure relief mattress system.
Intelligent Pressure Relief & Personalized Patient Support
- Lateral Rotation: offers three turning modes with adjustable angles and turning cycle times from 10-95 minutes – Left Turn, Right Turn and Full Turn.
- TrueCare™ Alternating Technology: Enhances patient comfort by re-inflating the 1st set of alternating cells before the 2nd set of cells start to deflate and alternate.
- Innovative iLAL™ (independent Low Air Loss): Effectively reduces the moisture and skin heat on the support surface by periodically providing a high volume of air loss relief.
- Selectable: 10, 15, 20, 25, 30 minute alternating cycle times with LED display and static mode for easy patient transfer.
- Constant Low Pressure (CLP) Mode: puts the mattress in a low pressure static surface for patients who cannot tolerate a dynamic surface but still require a pressure redistribution surface.
- Pulsate Mode: Adjustable cycle time provides a periodic pressure changing static surface.

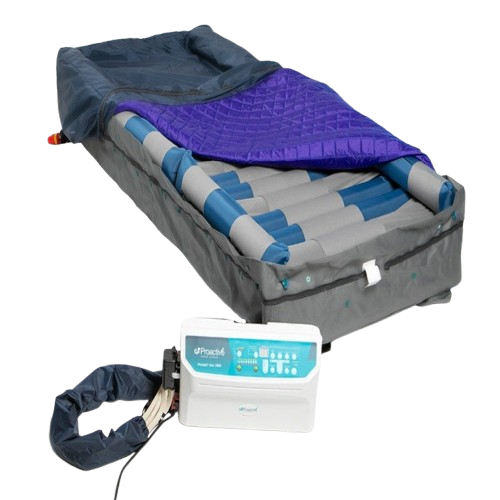

- 18 Bladder Cell-on-Cell Mattress Design: prevents patient from bottoming out in case of power failure.
- Auto-Firm Mode: provides quick set up and ease of ingress and egress from bed.

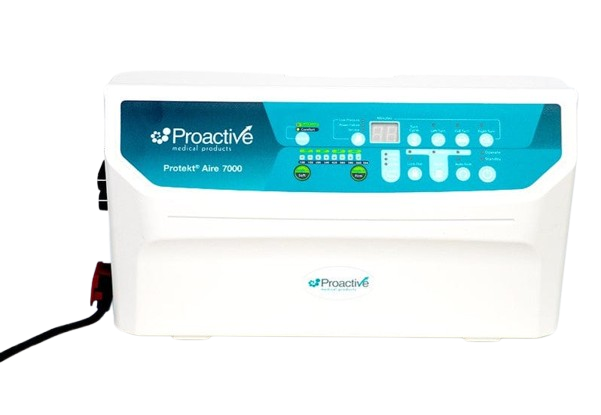

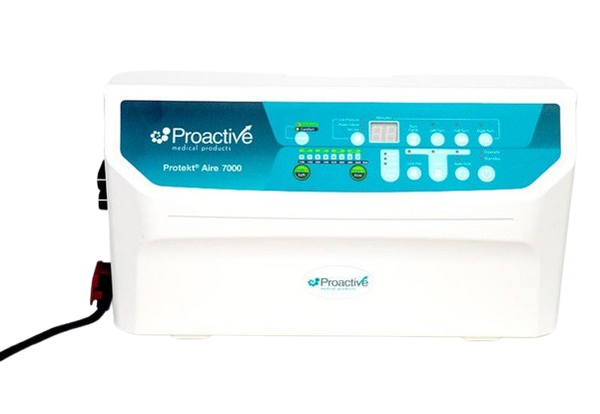

- Audio/Visual Alarms: Power failure, low pressure and service alarm with error code.
- Nylon Quilted Top Cover: fluid resistant, anti-microbial/anti-bacterial, vapor permeable and fire retardant.
- Two-Stage Fowler Detector: automatically stops turning at 20 degrees and increases the pressure output at 45 degrees to prevent “bottoming out.”
- Auto-Lockout: Ensures patient safety by locking the panel to prevent accidental setting changes.
Proactive Medical Protekt Aire 7000 Alternating Pressure Mattress System Specifications
| Airflow | 18 LPM (liters per minute) |
| Pump Type | Dual Compressor |
| Cycle Times | 10, 15, 20, & 25 minutes |
| Turn Times | Customizable from 10 to 95 minutes |
| Lateral Rotation | Up to 40 degrees |
| Air Loss | Basic Low Air Loss |
| Pump Alarms | Audio / Visual |
| Dimensions (WxLxH) [Model 80070] | 36 x 80 x 8 in. |
| Dimensions (WxLxH) [Model 80070-42] | 42 x 80 x 8 in. |
| Mattress Cover | Fluid-resistant nylon, washable |
| Weight Capacity | 660 lbs. |
| Decibel Sound Level | 33 dB |
| User Warranty | 2 Year Non-Prorated Manufacturer Warranty |
Proactive Medical Protekt Aire 7000 Alternating Pressure Mattress System User Manual & Brochure
Frequently Asked Questions (FAQs)
What therapeutic features does the Protekt Aire 7000 Mattress System provide?
The Protekt Aire 7000 combines four advanced therapies in one mattress system: lateral rotation, alternating pressure, low air loss, and pulsation therapy. These features work together to redistribute pressure, support skin protection, manage heat and moisture, and enhance comfort for patients who spend extended periods in bed.
How does the lateral rotation feature work?
The lateral rotation function provides Left Turn, Right Turn, and Full Turn modes with adjustable turning angles and cycle times from 10 to 95 minutes. The system can automatically reposition the support surface to help with patient positioning and pressure redistribution.
Does the Protekt Aire 7000 help with moisture and heat management?
Yes. The integrated iLAL™ Independent Low Air Loss technology periodically delivers a high volume of air through the support surface to help reduce moisture and heat buildup around the patient. This can contribute to a cooler, drier, and more comfortable support environment.
What is the weight capacity of the Protekt Aire 7000 mattress?
The Protekt Aire 7000 has a maximum weight capacity of 660 lbs., making it suitable for a wide range of patients. Always ensure the mattress is used according to the manufacturer's specifications and appropriate clinical guidelines.
What happens if there is a power failure?
The Protekt Aire 7000 features an 18-cell cell-on-cell mattress design intended to help prevent the patient from bottoming out in the event of power loss. The system also includes audio and visual alarms for conditions such as power failure, low pressure, and service requirements.
