High-Capacity Electric Patient Lift for Safe, Efficient Transfers

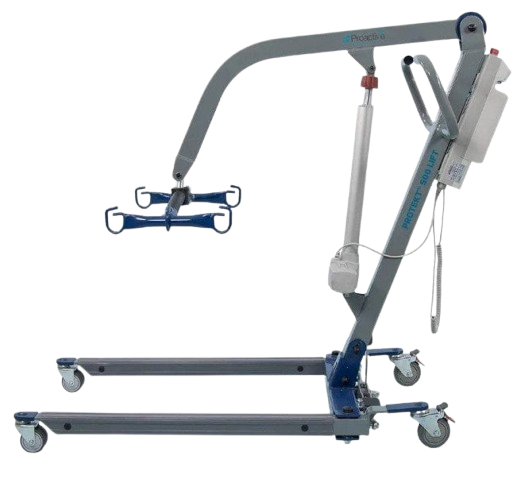

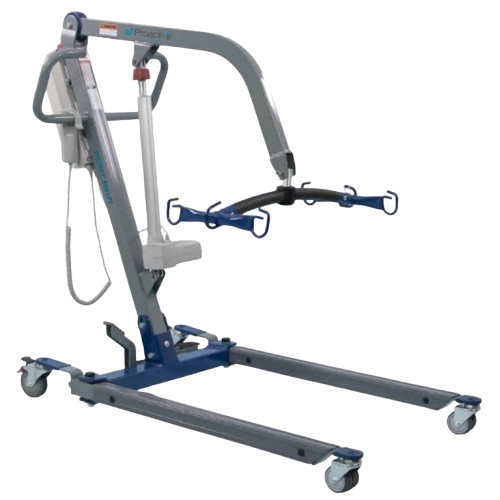

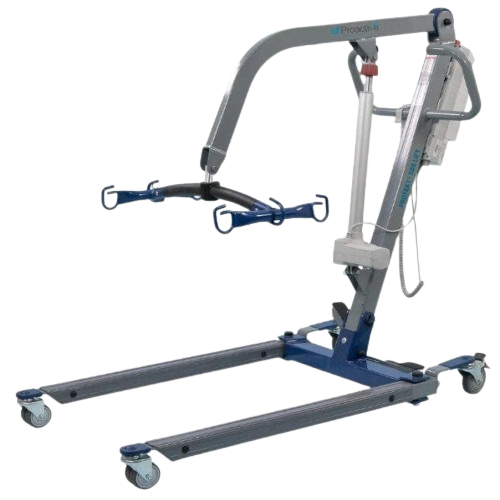

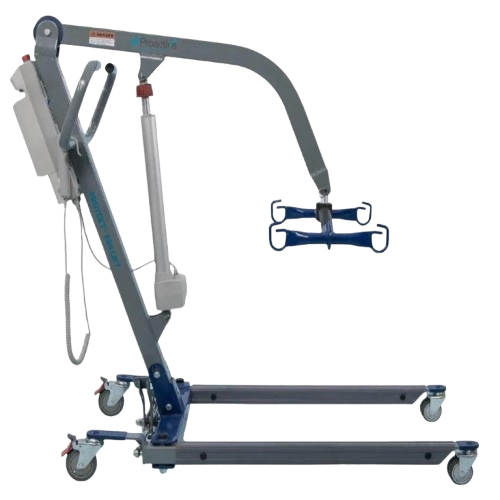

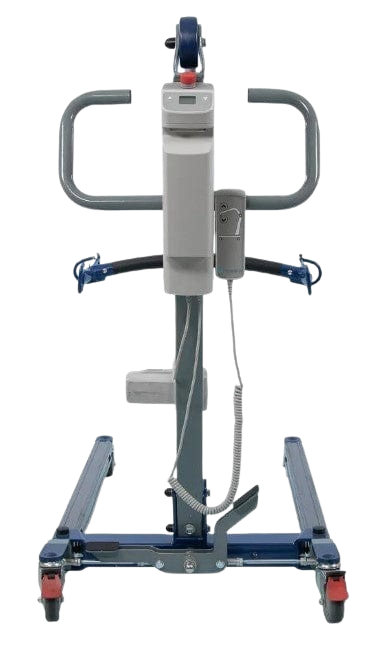

The Protekt® 500 and Protekt® 600 Lifts provide dependable electric-powered assistance for safer, more efficient patient transfers in homecare and institutional environments. Both models feature floor-lifting capability, an adjustable base designed to fit beneath most beds, and a 6-point spreader bar that accommodates multiple sling configurations. Choose the Protekt 500 for patients weighing up to 500 lbs. or upgrade to the Protekt 600 for a higher 600 lb. weight capacity and a lower minimum lifting height of 22.8".
Advanced Support for Safer, More Confident Patient Transfers
- Two Weight Capacity Options: Choose the Protekt 500 with a 500 lb. capacity or the Protekt 600 with a 600 lb. capacity to accommodate different patient needs.
- Electric-Powered Transfers: Powered lifting helps caregivers perform patient transfers more efficiently while reducing physical strain.
- Floor-Lifting Capability: Both models can lift patients directly from the floor, providing valuable assistance for fall recovery.
- Low-Profile Design: The adjustable base is designed to fit underneath most beds in their lowest position, making the lifts well suited for rooms with low beds and limited space.
- 6-Point Spreader Bar: Provides multiple sling attachment options for greater flexibility, improved positioning, and safer patient handling.
- Hands-Free Base Adjustment: An ergonomic foot pedal allows caregivers to open and adjust the base without using their hands.
- Manual Emergency Lowering: Provides a safe way to lower the patient in the event of a power failure.
- Secure Maneuverability: Dual front casters and locking rear casters provide stability while allowing caregivers to position the lift around beds and furniture.
- Clip-Free Sling Connections: Streamlined sling hookups help simplify setup and reduce downtime between transfers.
- Advanced Electronic Controls: Auxiliary up/down controls provide additional options for operating the lift.
- Modular Construction: Components are designed for easier replacement and long-term serviceability.

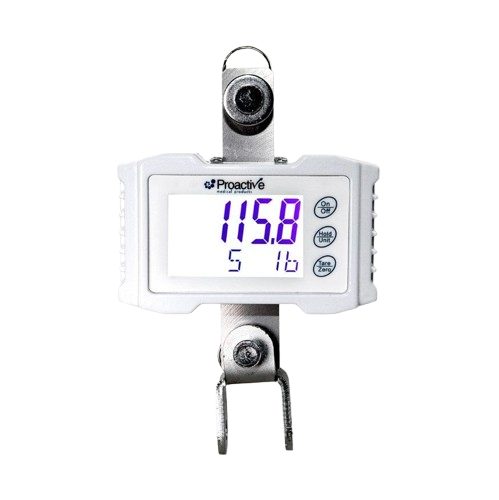

- Optional Digital Scale: An available digital scale provides a convenient way to monitor patient weight during transfers.
- Designed for Tight Spaces: The compact base and maneuverable design make both models practical for smaller rooms and challenging transfer environments.
Which Lift Is Right for You?
- Choose the Protekt 500 if you need a lighter-weight patient lift with a 500 lb. capacity and a slightly higher maximum lifting height. At 109 lbs., it can be easier to move and position than the 600 model.
- Choose the Protekt 600 if you need additional weight capacity or a lower minimum lifting height. Its 600 lb. capacity provides an extra 100 lbs. of support, while its 22.8" minimum lifting height makes it particularly useful for transfers involving lower surfaces.
- Both models offer the same core safety and convenience features, including electric lifting, floor-lift capability, a 6-point spreader bar, adjustable base, emergency lowering, and optional digital scale.
Proactive Medical Protekt 500/600 Power Patient Lift Specifications
| Protekt Power 500 | Protekt Power 600 HD | |
| Weight Capacity | 500 lbs. | 600 lbs. |
| Unit Weight | 109 lbs. | 126.5 lbs. |
| Base Length | 47.3 in. | 47.3 in. |
| Base External Width - Closed | 26.4 in. | 26.4 in. |
| Base External Width - Opened | 39.3 in. | 39.3 in. |
| Mast Height | 51.3 in. | 51.3 in. |
| Front Caster Height | 4.9 in. | 4.9 in. |
| Lifting Height - Lowest | 28.7 in. | 22.8 in. |
| Lifting Height - Highest | 71.3 in. | 68.6 in. |
| Base Opened Turning Diameter | 62.8 in. | 63.4 in. |
| Base Closed Turning Diameter | 58.3 in. | 58.4 in. |
| User Warranty | Electronics; 2 Year. Frame; 3 Year. Battery; 1 Year. | Electronics; 2 Year. Frame; 3 Year. Battery; 1 Year. |
Proactive Medical Protekt 500/600 Power Patient Lift User Manuals & Brochures
Frequently Asked Questions (FAQs)
What is the difference between the Protekt 500 and Protekt 600?
The primary differences are weight capacity and lifting range. The Protekt 500 supports up to 500 lbs., while the Protekt 600 supports up to 600 lbs. The Protekt 600 also has a lower minimum lifting height of 22.8", compared with 28.7" for the Protekt 500.
Can the Protekt 500 and 600 lift a patient from the floor?
Yes. Both models are capable of lifting patients directly from the floor, making them useful for fall recovery as well as routine transfers between beds, chairs, wheelchairs, and other surfaces.
Are these patient lifts suitable for use with low beds?
Yes. Both models feature an adjustable base designed to fit underneath most beds in their lowest position. The Protekt 600 offers an especially low minimum lifting height of 22.8", making it a strong choice for transfers involving lower surfaces.
How do I choose between the Protekt 500 and Protekt 600?
Choose the Protekt 500 if a 500 lb. capacity meets the patient's needs and you prefer the lighter 109 lb. unit. Choose the Protekt 600 if you need a higher 600 lb. weight capacity or a lower minimum lifting height. Both models provide the same core electric lifting and safety features.
What safety features do the Protekt 500 and 600 include?
Both models include a 6-point spreader bar, clip-free sling connections, locking rear casters, hands-free base adjustment, and manual emergency lowering in the event of power loss. Their electric operation also helps reduce the physical strain associated with patient transfers for caregivers.
