Compact Solution for Safer Home Transfers
The Protekt Onyx is a highly cost-effective patient lift that prioritizes durability and user-friendliness. It is particularly well-suited to small spaces or rooms with low beds, which makes it an excellent choice for in-home use and rehabilitation settings alongside other heavy duty patient lifts for home.

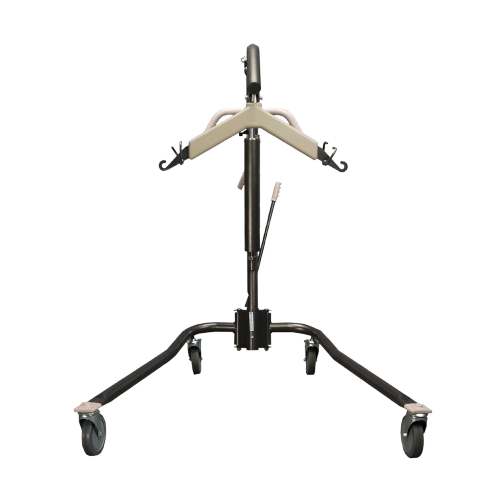

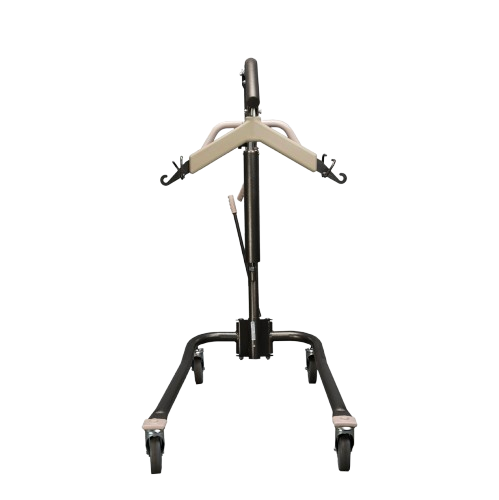

One of its standout features is the hand-operated spreader bar, which effortlessly opens and closes the arched legs. This lift can achieve a maximum width of 42.25 inches, ensuring excellent stability, while the closed width of 22 inches enables it to navigate through most doorways with ease, making it a practical portable lift for elderly users in home care settings. The actuator utilizes high-performance hydraulics to provide a gradual and secure lift and descent for patients.
Everything You Need for Confident Patient Transfers
- 450 lb. Weight Capacity: Supports patients up to 450 pounds for dependable home care transfers.
- 4- & 6-Point Sling Compatibility: The versatile spreader bar accommodates both 4- and 6-point slings for safer handling and a wider range of transfer needs.
- Smooth Hydraulic Lifting: High-performance hydraulics provide gradual, controlled raising and lowering from a stationary position.
- Easy Base Adjustment: Hand-operated controls make it simple to open, adjust, and securely lock the lift’s base.
- Stable & Secure Mobility: Dual rear locking casters help keep the lift stable and secure during patient transfers.
- Secure Chain Connections: Included chain connections provide a straightforward and dependable way to attach compatible slings.
- Heavy-Duty Construction: Sturdy welded construction is designed for reliable performance and safe patient transfers.
- Clip-Free Sling Setup: Chain connections eliminate loose clips that can be misplaced, simplifying sling attachment and setup.
- Tool-Free Assembly: Designed for quick, convenient assembly without requiring additional tools.
Proactive Medical Onyx Hydraulic Lift Specifications
| Weight Capacity | 450 lbs. |
| Unit Weight | 85 lbs. |
| Base Legs Length | 40.5 in. |
| Base Closed External Width | 22 in. |
| Base Open External Width | 42.25 in. |
| Mast Height | 51 in. |
| Base Height | 5.25 in. |
| Min. Lifting Height | 17 in. |
| Max. Lifting Height | 61 in. |
| User Warranty | Hydraulic Pump; 1 Year Limited. Frame; Limited Lifetime. |
Proactive Medical Onyx Hydraulic Lift User Manual & Brochure
Frequently Asked Questions (FAQs)
What is the weight capacity of the Protekt Onyx Hydraulic Lift?
The Protekt Onyx has a 450-pound weight capacity, making it suitable for a wide range of patient transfer needs in home care and rehabilitation settings.
What types of slings are compatible with the Protekt Onyx?
The Onyx features a versatile spreader bar that accommodates 4-point and 6-point slings. Its included chain connections provide a secure attachment method without relying on clips that can be misplaced.
Is the Protekt Onyx suitable for use in small spaces?
Yes. The lift is particularly well-suited for homes and rooms with limited space. Its base can close to 22 inches wide for navigating through most doorways and opens to 42.25 inches for increased stability during transfers.
How does the hydraulic lifting system work?
The Protekt Onyx uses high-performance hydraulics to raise and lower patients gradually and in a controlled manner. The hydraulic system operates manually, so no electrical power is required for lifting.
How high can the Protekt Onyx lift a patient?
The Onyx has a 17-inch minimum lifting height and a 61-inch maximum lifting height, providing a broad range of vertical adjustment for common patient transfer situations.
