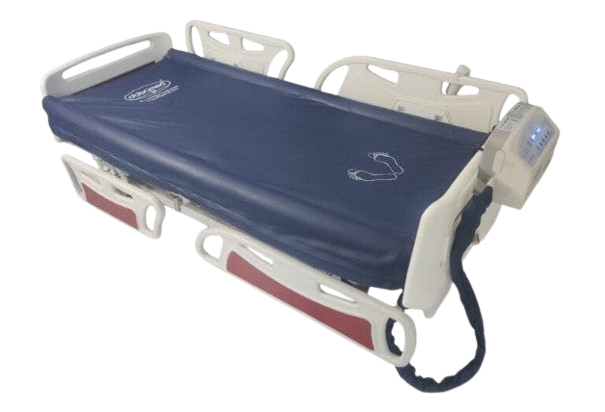

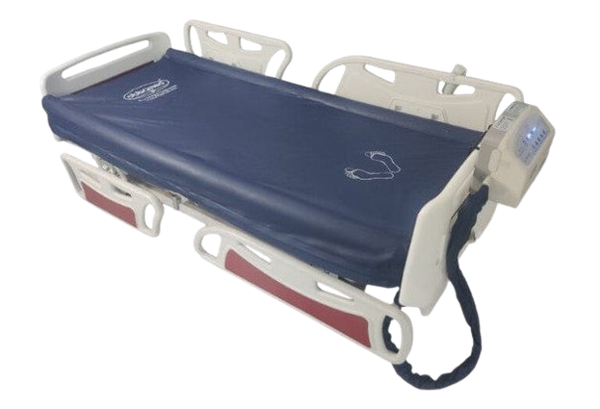

Advanced Pressure Relief Mattress for Extended Care Patients
The ObboMed OB-1600 UtilityAir Ulcer Prevention Mattress is a premium therapeutic support surface designed for patients managing Stage 1–4 pressure ulcers who spend 15 or more hours per day in bed. Engineered as a complete pressure injury prevention and treatment system, this advanced mattress combines clinical-grade comfort with targeted pressure redistribution to help reduce skin breakdown and promote patient safety.
Ideal for long-term care, home healthcare, and medical facility use, the OB-1600 delivers consistent support, enhanced circulation, and reliable performance for individuals requiring extended bed rest and advanced wound care support.
Advanced Therapeutic Technologies for Continuous Pressure Relief & Patient Safety
- Alternating Pressure Function: This mattress offers customizable alternating pressure cycles of 10, 20, 30, and 40 minutes. By cyclically inflating and deflating air cells, it continuously redistributes pressure, preventing prolonged stress on vulnerable areas. This dynamic action stimulates blood flow, significantly reducing the risk of pressure sores for bedridden or immobile individuals. Users can select the cycle time that best suits their comfort and therapeutic needs.

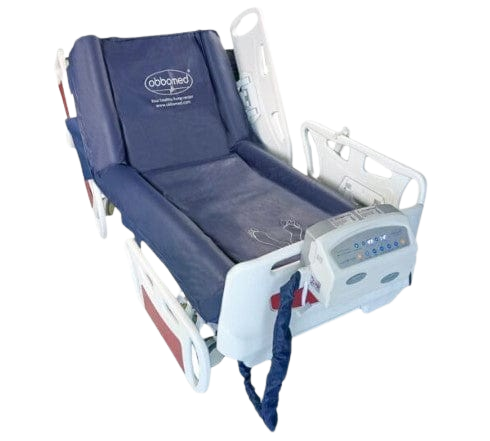

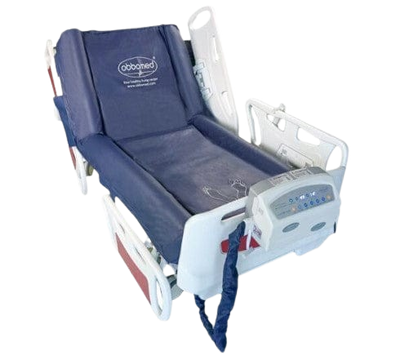

- Fowler & Seating Support: The Fowler function enhances support in the seat and torso sections when the head of the bed is elevated. This design aims to prevent patients from bottoming out, ensuring consistent support and reducing the risk of pressure injuries in seated positions.
- Comfort-Focused True Low Air Loss (LAL) Therapy: Positioned beneath the cover layer, the Comfort-Focused LAL system delivers airflow at 15 liters per minute, this powerful ventilation system effectively removes humidity and regulates moisture and heat around the patient’s skin, helping to maintain a dry and comfortable microclimate. The result is enhanced comfort and improved skin protection—especially vital for individuals of all ages dealing with stage 1 to stage 4 pressure ulcers.
- 15° Self-Lateral Rotation: Utilizing specialized air cells, the mattress provides a 15-degree self-lateral rotation by continuously inflating and deflating specific cells. This gentle wave-like motion redistributes the user’s weight, helps improve sleep, alleviates pressure points, stimulates blood circulation, and aids in the prevention of bedsores.
- Sinking Feature with Centralization: The mattress incorporates a sinking feature that lowers the surface up to 4 inches, create a 4-inch deep soft barrier. This design ensures patient centralization during alternating pressure and self-lateral rotation, maintaining safety even during 15-degree rotations while allowing easy access for caregivers.

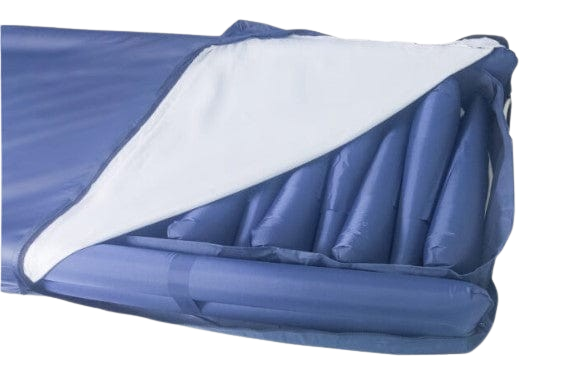

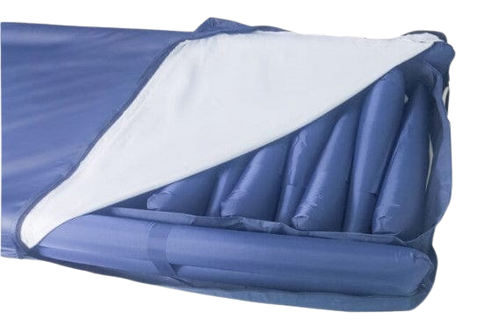

ObboMed OB-1600 Mattress Cover Features
- Antimicrobial properties.
- Free of latex, lead, and mercury; biocompatible.
- Anti-allergic and anti-irritating.
- Liquid-proof barrier.
- Machine washable.
- 4-way stretchable PU fabric made in Germany, Quilted underside top cover to minimize frictions and shearing of skin.
- Fireproof polyurethane (Complies with US standards: 16 CFR 1632, 16 CFR 1633, TB129).
- Permeable allow Perspiration vacates through the top cover and between the cover boundary to remove moisture and body heat by Low Air Loss function (LAL).

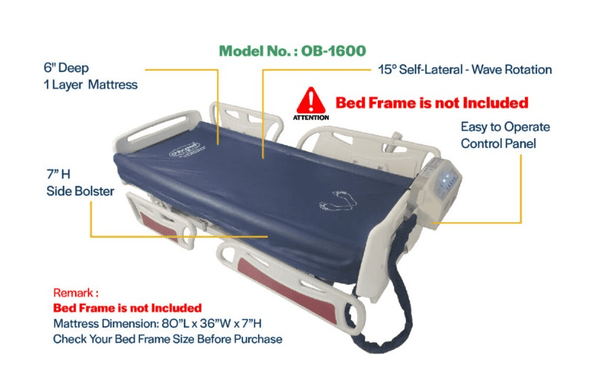

ObboMed OB-1600 Specifications
| Mattress Dimensions (LxWxH) | 80 x 36 x 7 in. |
| Pump Capacity | 25 LPM |
| Weight Capacity | 450 lbs. |

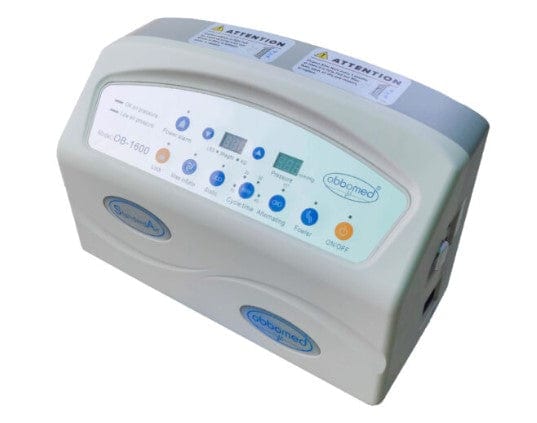

| Control Unit Weight | 10.2 lbs. |
| Functions | Alteration, 15° Self-lateral Rotation |
| Rotation Angles | 15 Degrees |
| Alternating & Rotation Cycle Time | 10, 20, 30, and 40 Minutes |
| Pump | 30 LPM |
| Low Air Loss | 15 LPM |
| Mattress Weight | 12.8 lbs. |
| Unit Package Weight | 24.7 lbs. |
| Unit Package Dimensions (LxWxH) | 18.5 x 16.5 x 21.3 in. |
| User Warranty | 60 Day Manufacturer Warranty |
ObboMed OB-1600 Low Air Loss Alternating Pressure Mattress with Lateral Rotation Brochure
Frequently Asked Questions (FAQs)
What conditions is the ObboMed OB-1600 mattress designed to treat or prevent?
The ObboMed OB-1600 UtilityAir Mattress is designed for the prevention and treatment of Stage 1–4 pressure ulcers. It is ideal for patients who spend extended periods in bed and require advanced pressure redistribution, moisture management, and positioning support in home care, long-term care, or clinical environments.
How does the alternating pressure and self-lateral rotation work?
The OB-1600 uses patented alternating pressure therapy with selectable cycle times of 10, 20, 30, or 40 minutes, continuously inflating and deflating air cells to redistribute pressure and improve circulation. In addition, the mattress provides 15° self-lateral rotation, creating a gentle wave-like motion that helps reduce pressure points, stimulate blood flow, improve sleep quality, and aid in bed sore prevention.
What safety features help keep the patient centered during rotation?
The mattress includes a sinking feature that lowers the surface up to 4 inches, combined with a patented 4-inch side bolster, creating an 8-inch deep soft barrier. This design ensures patient centralization and stability during alternating pressure and lateral rotation, maintaining safety while still allowing easy caregiver access.
How does the Low Air Loss (LAL) system improve comfort and skin health?
The Comfort-Focused True Low Air Loss system delivers 15 liters per minute of airflow, working beneath the top cover to regulate heat and moisture around the patient’s skin. This ventilation helps maintain a dry, comfortable microclimate, reducing humidity buildup and supporting skin integrity—especially important for patients with pressure ulcers or sensitive skin.
What are the mattress size, weight capacity, and warranty details?
The OB-1600 mattress measures 80” L x 36” W x 7” H and supports up to 450 lbs (200 kg). The mattress weighs 12 lbs, and the control unit weighs 10 lbs, making it easy to manage during setup and care. The product includes a 1-year warranty on the top cover and a 2-year warranty on the mattress and control unit.
