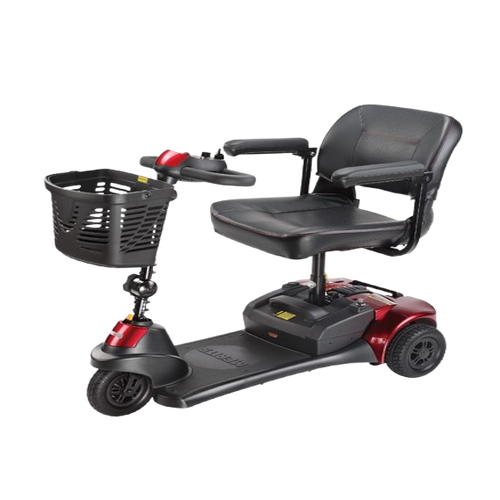

Merits Roadster 3 Mobility Scooter

Merits Health Products is driven to improve lives - every day, all over the world - We provide reliable, expertly engineered solutions for nearly every need. Our innovative designs constitute years of experience and research to fully understand the special needs of individuals. Through years of consultations, personal contacts and studies, Merits Health Products has adapted every way conceivable to satisfy our customers efficiently with quality and professionalism.

Key Details

• Adjustable Tiller: Tiller angle adjustable for ergonomic driving position and easy on and off.
• Easy Maneuverability: Loop tiller with throttle lever to maneuver by palm or finger.

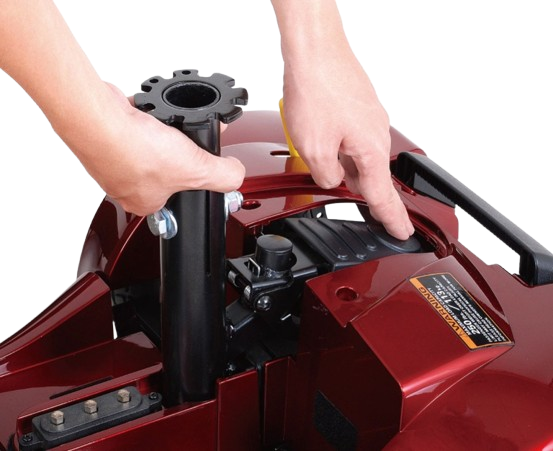

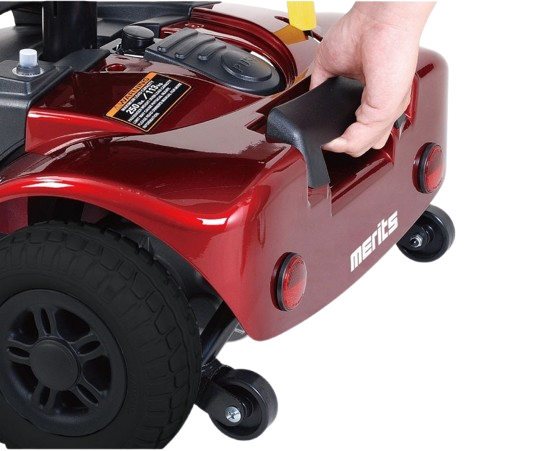

• Transportability: Transport and store easily with auto latching lockup design.
• Battery: Detachable battery pack with built in charging port.
• Storage: Large plastic basket.

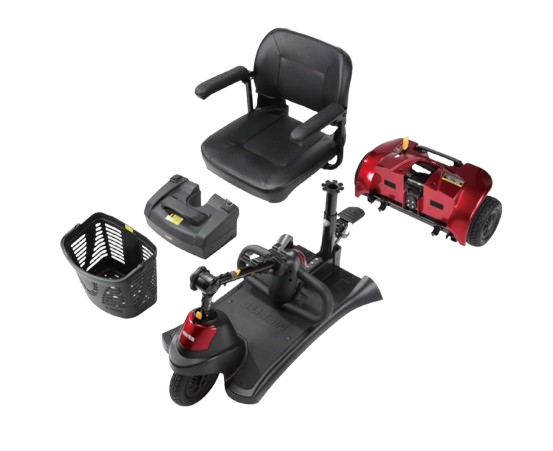

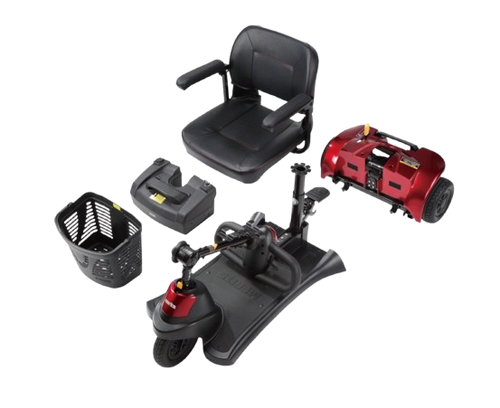

• Lightweight: Easily disassembles into 5 pieces.
• Easy Charging: Extra charging port under dashboard for easy plug in.
• Non-slip foot mat.
• Easy To Ready Dashboard: Simple dashboard easy to read.
• High Ground Clearance: 1.9in.

Specifications

• Weight Capacity: 300 lbs.
• Product Weight: 94 lbs.
• Driving Range: 6 mi.
• Max Speed: 4 mph
• Battery Type: 12V / 12AH x 2pcs
• Motor: DC 24V, 110W (Rating) / 420W (Max)
• Max Climbing Angle: 6°
• Turning Radius: 36"
• Ground Clearance: 2"
• Controller: PG S-Drive 45A
• Charger: 1.5A off-board
• Front Wheel: 8" x 2" Solid tire
• Rear Wheel: 8" x 70 mm Solid tire
• Base: 53 lbs.
• Battery: 11 lbs.
• Seat: 20 lbs.
• Brake: Intelligent, regenerative, electromagnetic brakes

Dimensions

• Seat Width: 18"
• Seat Depth: 15"
• Seat Height: 20"-22"
• Backrest Height: 18"
• Footrest Extension Length: 15"-19"
• Overall Length: 37.5"
• Overall Width: 21.5"
• Overall Height: 36"
