Elevate Comfort & Style with the Merits Regal Power Chair

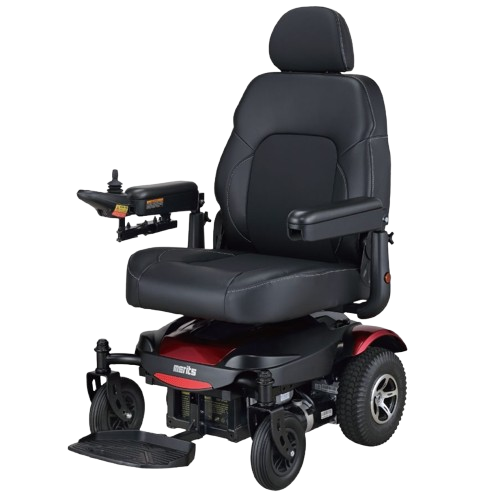

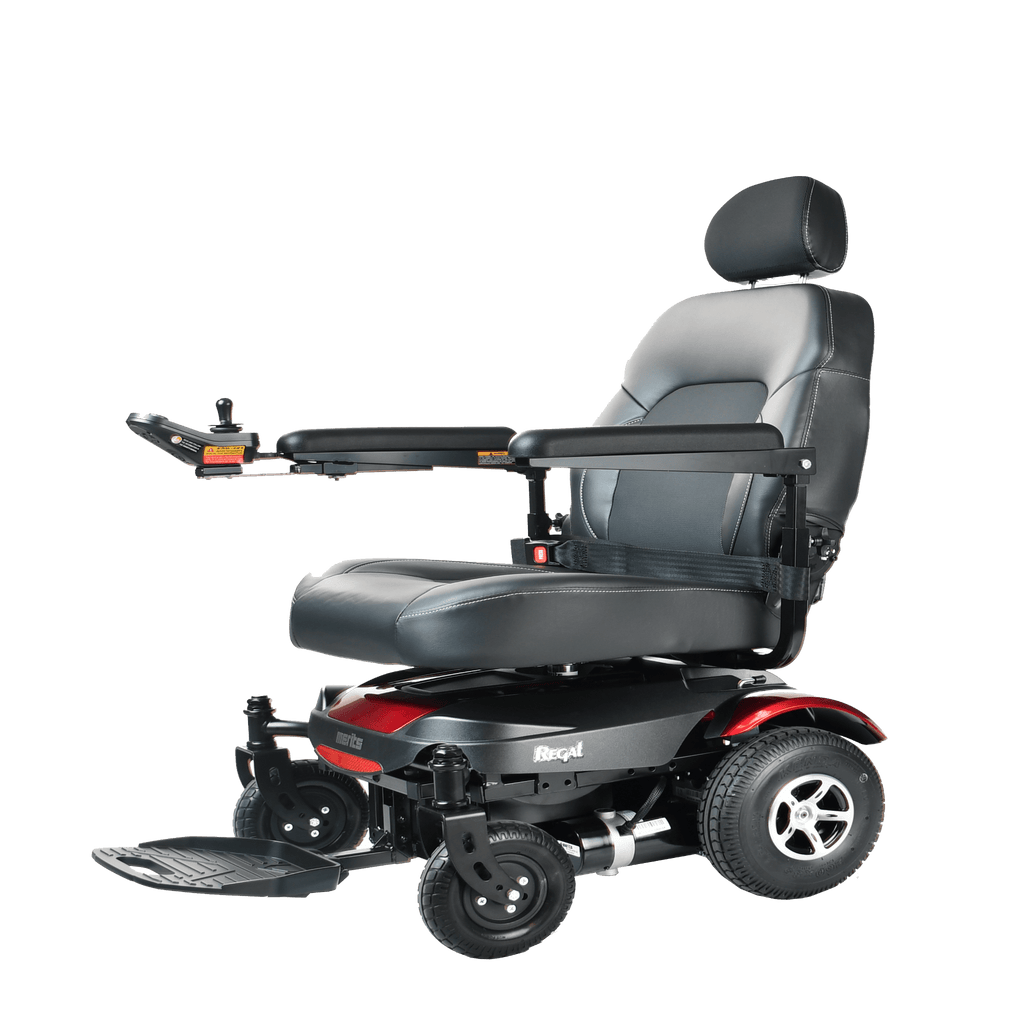

The Merits Regal Power Chair is a stylish, compact, and highly maneuverable mobility solution designed for everyday independence and comfort. With its sleek rear-wheel drive system and 10” alloy-rimmed drive wheels, this chair delivers both performance and style. A low center of gravity not only improves stability but also offers a lower seat height—perfect for easier side transfers.
The deluxe captain's seat is both sturdy and comfortable, featuring a reclining back and flip-up, height-adjustable armrests for customizable support. Optional power seat elevation further enhances accessibility and convenience. Built to exceed expectations, the Regal has been crash-tested and meets ANSI RESNA standards, making it a safe and reliable choice for a wide range of users.
Key Features That Set the Regal Apart

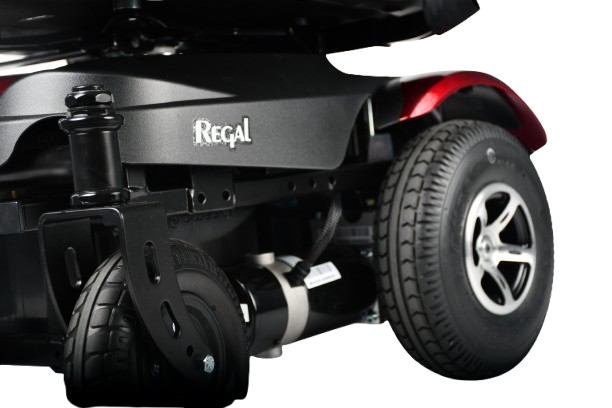

- Stylish & Compact Design: Rear-wheel drive system paired with 10” alloy-rimmed wheels provides a modern look and tight turning radius for indoor and outdoor use.
- Comfortable Deluxe Seating: Equipped with a sturdy captain’s seat, angle-adjustable backrest, and flip-up armrests with height adjustability for optimal posture and support.

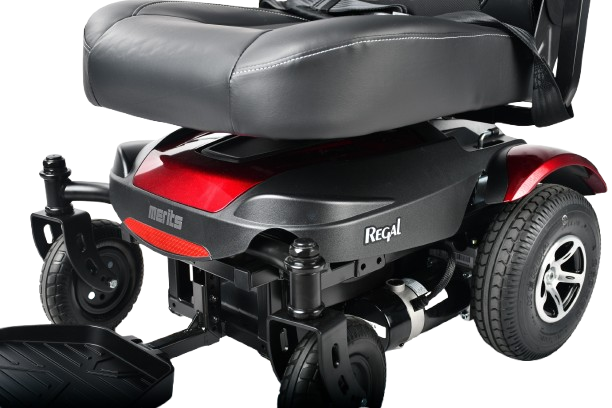

- Low Center of Gravity: Offers enhanced stability and a lower seat height, making side transfers safer and more manageable.
- Exceptional Maneuverability: Designed to navigate tight spaces with ease while maintaining smooth, stable control over various terrains.
- Certified Safety Standards: Tested and approved to meet and exceed ANSI RESNA standards; crash-tested models are also available for added peace of mind.
Merits Regal Power Chair Specifications
| Driving Range | 18 miles |
| Maximum Speed | 5 mph |
| Battery Type | 12V / U1 x 2 pcs |
| Motor | DC 24V, 180W (Rated) / 630W (Max) |
| Maximum Climbing Angle | 12° |
| Turning Radius | 21 in. |
| Ground Clearance | 3 in. |

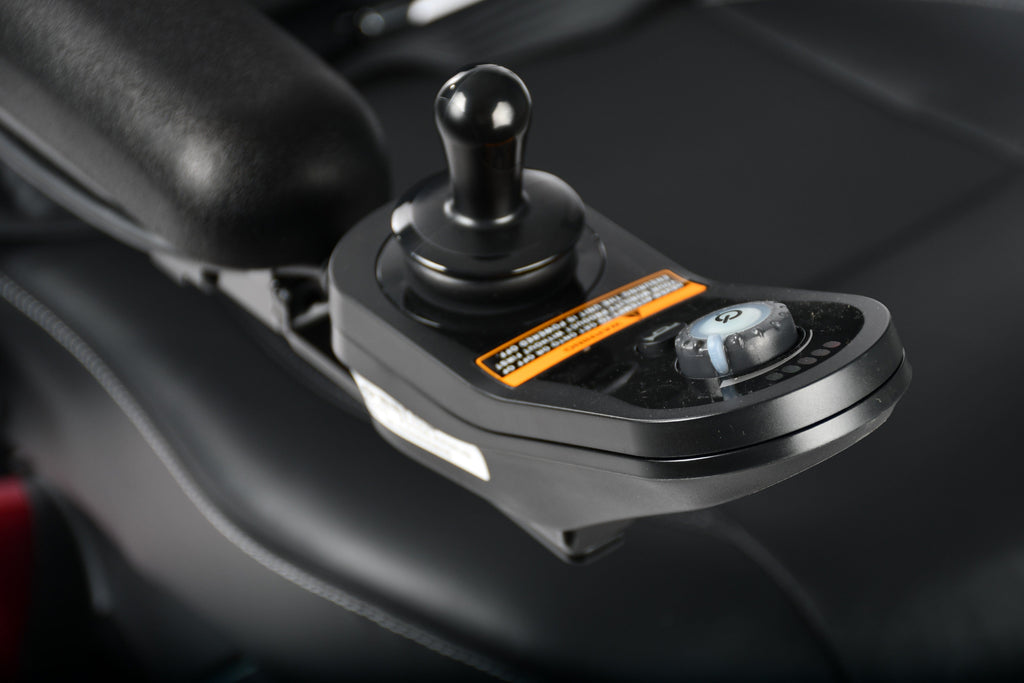

| Controller | PG nVR2 50A / DY LiNX |
| Charger | 5A off-board |
| Weight Capacity | 300 lbs. |
| Total Weight | 187 lbs. |
| Front Wheel | 8" (200 x 50) PU tire |
| Drive Wheel | 10" (260 x 85) Foam-filled tire |
| Seat Width | 18 in. |
| Seat Depth | 17 in. |
| Overall Length | 38 in. |
| Overall Width | 24 in. |
| Overall Height | 41 in. |
Merits Regal Power Chair Warranty
Frequently Asked Questions (FAQs)
What is the maximum driving range and speed?
The Regal offers a driving range of up to 18 miles per full charge, with a top speed of about 5 mph.
What weight capacity does it support?
This full-size power wheelchair has a weight capacity of 300 lbs.—making it suitable for a wide range of users.
How maneuverable is the Regal?
With a turning radius of just 21" and rear-wheel drive construction, the Regal is highly maneuverable—great for tight indoor spaces and smooth control overall.
Is the seat height and transfer mobility optimized?
Yes—thanks to its extremely low center of gravity and lower seat height, the Regal facilitates safer and easier side transfers, offering excellent stability.
Is the Merits Regal Power Chair approved for travel and transport?
Yes. Select models of the Regal Power Chair are crash-tested and approved for safe use in accessible vehicles. It also meets and exceeds ANSI RESNA safety standards, making it a reliable option for both personal and clinical transport needs. However, due to its weight and size, it's more suitable for transport in vehicles equipped with lifts or ramps rather than as a lightweight travel chair.
