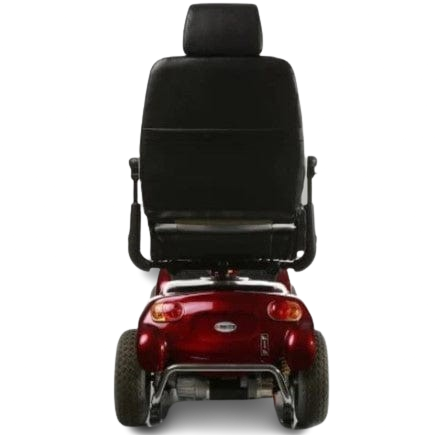

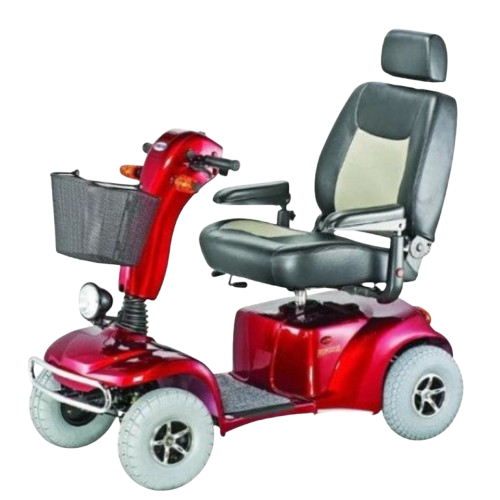

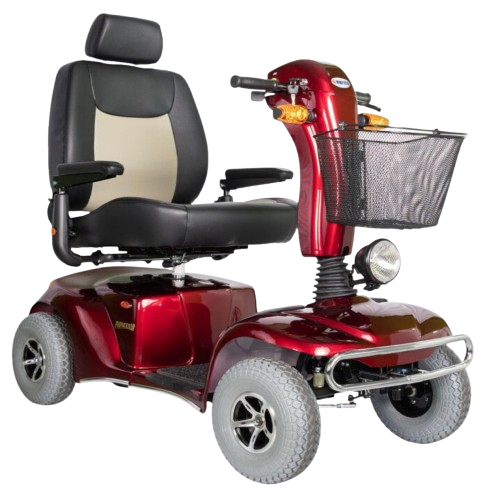

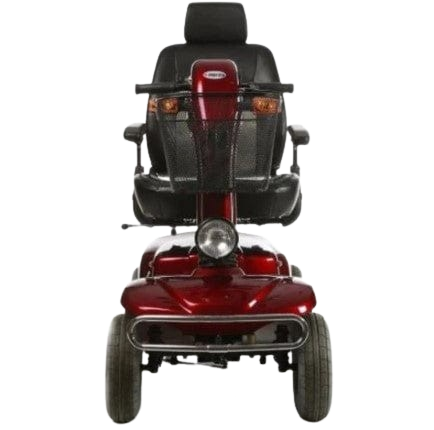

Merits Pioneer 10 Mobility Scooter

Merits Health Products is driven to improve lives - every day, all over the world - We provide reliable, expertly engineered solutions for nearly every need. Our innovative designs constitute years of experience and research to fully understand the special needs of individuals.

Key Details

• Durability: One-piece frame for increased strength.

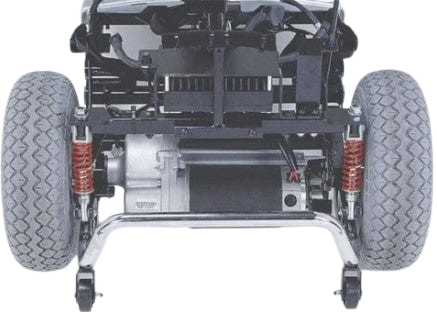

• Smooth Riding: Suspension system offer smoother ride, more support.
• All-Terrain: Large wheels with knobby tread tackle rough terrain
• High Weight Capacity: Weight capacity up to 500 lbs.
• Incline: 12°
• Extra Stability: 4 wheels add stability.
• Safety: Safety sensor assures half-speed turns.

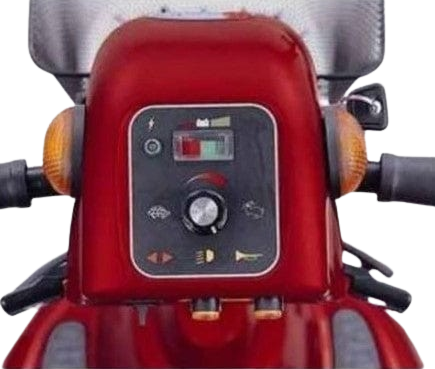

• Added Lights: Headlights and tail lights, turn signals and hazard lights
• Unique Details: Chrome detailing and carpet floor mat.
• Seat: Swivel and sliding captain seat.
• Storage: Shopping basket included.

Specifications

• Weight Capacity: 500 lbs.
• Product Weight: 290 lbs.
• Driving Range: 32 mi.
• Max Speed: 7.5 mph
• Battery Type: 12V / 75AH x 2 pcs
• Motor: DC 24V, 400W (gear ratio 1/19.5)
• Max Climbing Angle: 12°
• Turning Radius: 62"
• Ground Clearance: 4"
• Controller: Dynamic Rhino 2 160A
• Charger: 6A off-board
• Front Wheel: 12" (4.00-5) pneumatic tire
• Rear Wheel: 12" (4.00-5) pneumatic tire
• Base: 121 lbs.
• Battery: 55 lbs.
• Seat: 60 lbs.
• Brake: Intelligent, regenerative, electromagnetic brakes

Dimensions

• Seat Width: 22"
• Seat Depth: 20"
• Seat Height From Ground: 22"-25"
• Seat Height From Deck: 16"-19"
• Seat Height: 22"
• Wheel Base: 45"
• Overall Length: 54"
• Overall Width: 27"
• Overall Height: 47"
