Kinetec Spectra XL™ Knee CPM Machine: Empowering Recovery for Every Body
Engineered for excellence, the Kinetec Spectra XL™ Continuous Passive Motion (CPM) Machine redefines post-operative rehabilitation for bariatric patients. With its extra-wide ergonomic carriage and exceptional weight capacity, the Spectra XL™ ensures that no patient is left behind on the road to recovery.
Inspired by Kinetec’s trusted Spectra design, this advanced CPM system combines precision mechanics with effortless usability, delivering a gentle, consistent range of motion that helps reduce stiffness, improve circulation, and accelerate healing—without discomfort or strain.

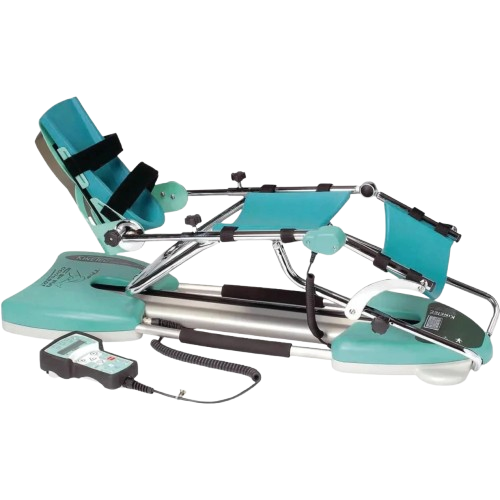

The included premium patient pad kit is soft, secure, and intuitively designed, making setup seamless and treatment incredibly comfortable. Whether in hospital settings or at home, the Spectra XL™ provides an empowering experience for users and peace of mind for clinicians.
Recover with Confidence: The Kinetec Spectra XL™ CPM Machine is Built for Strength, Safety, and Total Range of Motion
- Wide Carriage And High User Weight Capacity: The Spectra XL™ boasts a 12.5" wide carriage, accommodating patients up to 500 lbs. safely.
- Kinetec Data Capture™ USB Technology Ready: Equipped with advanced technology, allowing for efficient data capture and analysis.
- Range Of Motion (ROM): Offers a range from -10° to 120°, catering to various therapeutic needs.

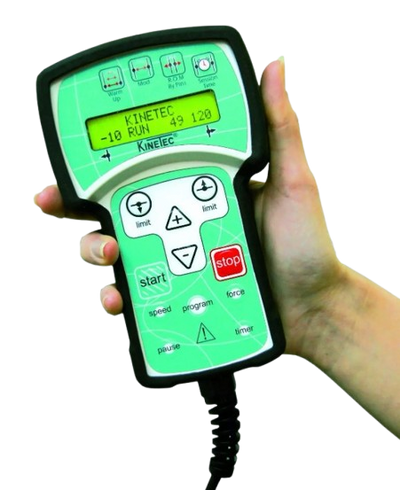

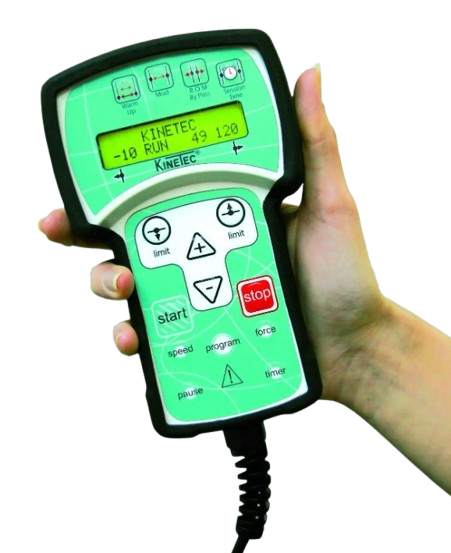

- Controlled Functionality: A digital handset enables control over a wide range of functions, including speed, ROM, force, pause in extension/flexion, timer, programming, warm-up, bypass, and session timing.
- Patient Safety Features: The handset can be securely locked to prevent unauthorized parameter alterations during use.
- Outstanding Range Of Motion: Provides an exceptional range of motion from -3 degrees of hyperextension to 130 degrees of flexion, facilitating treatment for a variety of knee and hip pathologies.
Kinetec Spectra XL™ Knee CPM Machine Specifications
| Product Weight | 28 lbs. |
| Motor | Long Lasting DC Motor |
| Product Splint Dimensions | 37 x 14.5 x 13 in. |
| Product Angular Limits | -10 to 120° |
| Product Speed | 60 to 170° per minute |
| Product Patient Measurements | Full leg from 30″ to 39″, Tibia from 15″ to 21″, Femur from 13" to 18″ |
| Maximum User Weight | 500 lbs. |
| Power Supply | 100-240 V~ |
| Frequency | 50-60Hz |
| Power Consumption | 20W |
| Device Type | B Class 1 |
| IP Rating | 20 |
| Storage/Transport Conditions | Temperature -40 to 70°C / -40 to 160°F, Relative Humidity Up to 90% |
| Operating Conditions | Room Temperature 10 to 40°C (50 to 105°F), Relative Humidity Up to 80% |
| User Warranty | Full 2-Year Manufacturer's Warranty |
Kinetec Spectra XL™ Knee CPM Machine Brochure
Frequently Asked Questions (FAQs)
What is the maximum user weight and carriage width?
The Spectra XL™ features a 12.5″ (32 cm) extra‑wide carriage and supports patients up to 500 lb.
What is the available range of motion (ROM)?
It provides an outstanding ROM from –3° hyperextension to 130° flexion, with standard settings from –10° to 120°.
What functions and settings can I control?
Through its digital handset, you can precisely adjust: speed (approximately 45–155°/min) ROM limits force/resistance warm-up and bypass modes pause in flexion/extension timer and session settings programming up to 16 custom therapy programs.
Is the device USB data‑capture ready?
Yes—the Kinetec Data Capture™ system allows you to record session data via a USB stick and analyze it with compatible software.
How is patient safety and control ensured?
he handset can be securely locked to prevent parameter changes during therapy, and includes a STOP/REVERSE button for immediate patient-initiated control.
What sizes are available?
The device accommodates leg lengths: full leg: 71–99 cm (28–39″) tibia: 38–53 cm (15–21″) femur: 33–46 cm (13–18″)
