Accelerate Knee Recovery with the Kinetec Spectra CPM Machine – Advanced Post-Op Rehabilitation Technology

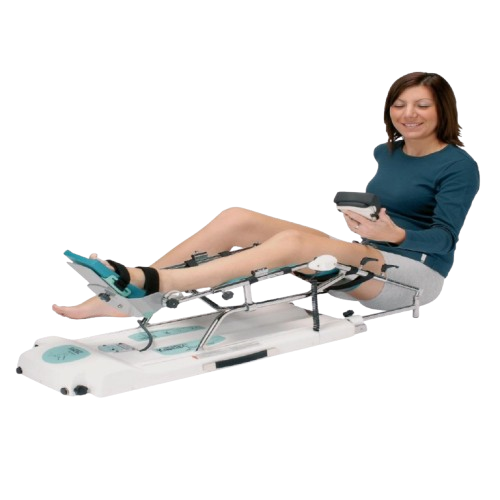

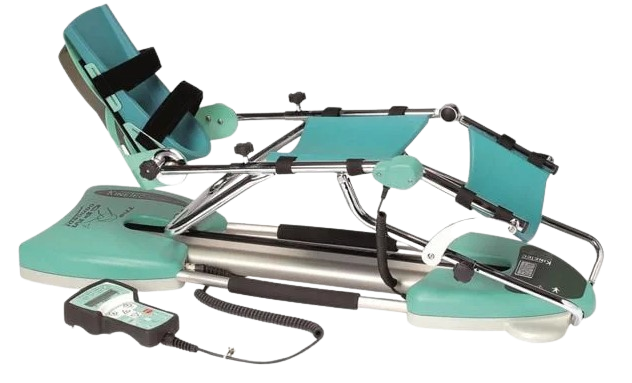

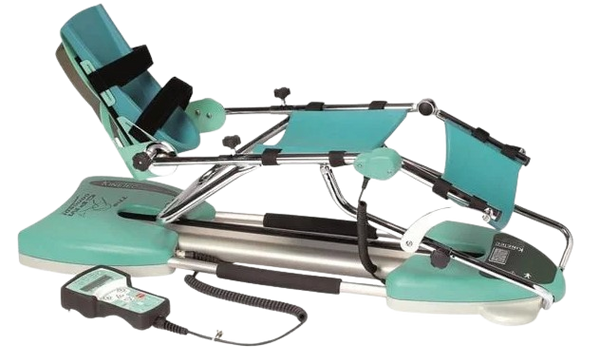

The Kinetec Spectra Knee CPM (Continuous Passive Motion) Machine is a leading-edge rehabilitation device designed to support faster, safer, and more effective knee recovery after surgery. Engineered with precision mechanics and advanced digital controls, the Spectra enhances healing by gently and consistently moving the knee joint to prevent stiffness, reduce pain, and restore range of motion.

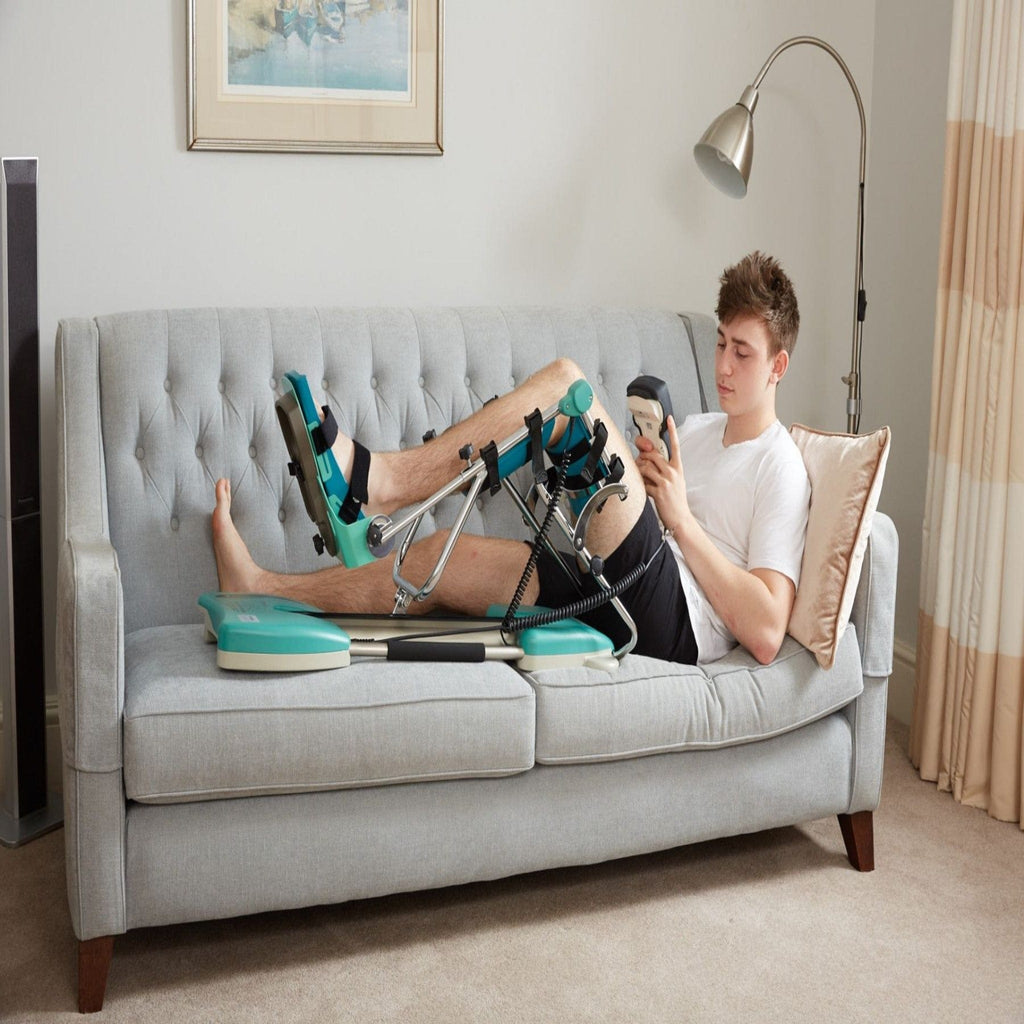

Ideal for patients recovering from ACL repair, total knee replacement, or other knee procedures, this high-performance CPM machine offers customizable settings for optimal comfort and rehabilitation outcomes. Trusted by hospitals, physical therapy clinics, and at-home users alike, the Kinetec Spectra sets the standard in modern post-operative care.
Advanced Therapy Control Features of the Kinetec Spectra Knee CPM Machine
- Full Range of Movement Options: Offers a wide range of movement options and controls, providing flexibility in therapy sessions.
- Additional Functionalities: Includes advanced features such as a warm-up function, 20 pre-set programs, session timing, and ROM bypass for enhanced customization.
- USB Compatibility: Utilizes USB accessory and software for capturing individual patient session information, ensuring precise monitoring and analysis.
- Precise Control: Allows users to set and adjust extension and flexion limits, speed, resistive force, timer, and pause durations during therapy sessions.

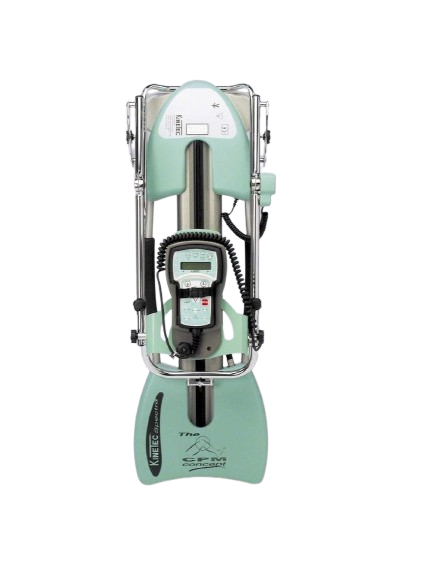

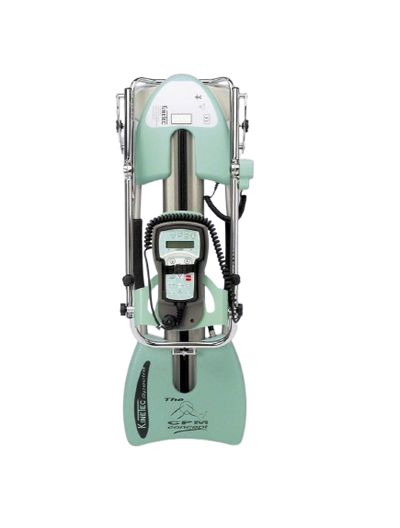

- Intuitive Hand Control: Features clear start and stop buttons for straightforward operation.
- Multiple Functions: Enables selection of pre-set programs, warm-up function, ROM bypass, and session timing directly from the handset, streamlining the therapy process.
Kinetec Spectra Knee CPM Machine Specifications

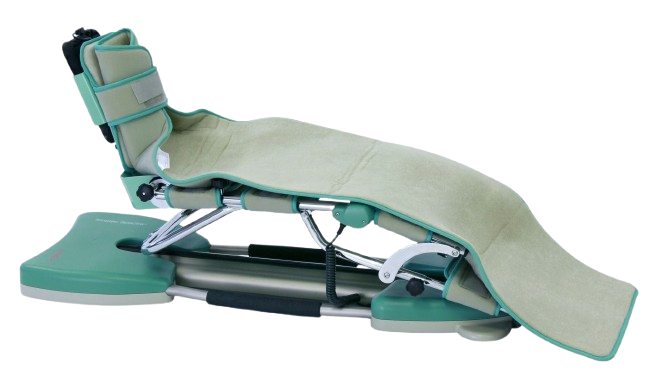

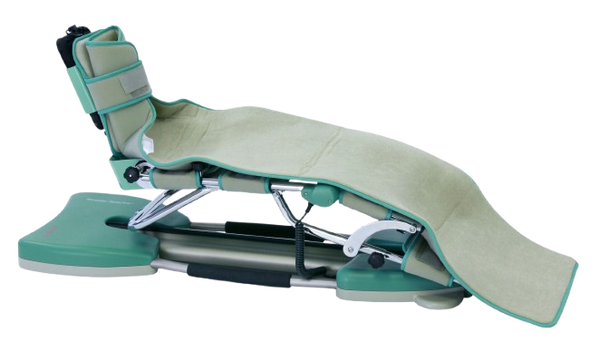

| Comfort & Safety | Anatomically correct system reduces pressure points for greater patient comfort. Patient lock-out prevents accidental setting changes and enhances safety. |
| Movement & Adjustability | Precise adjustment of extension/flexion limits, speed, pauses, and resistance. Advanced ROM settings including warm-up, modulation, and ROM bypass modes. Force reversal allows patient-triggered movement based on muscle contraction. |
| Programs & Control | 16 customizable therapy programs with session timer and pause controls. Start/Stop and reverse functions always accessible from hand control. Intuitive handset allows program selection and real-time adjustments. |
| Power & Safety Features | Internal medical-grade transformer; no external components needed. Type BF Class II electrical safety classification. |
| Motor & Mechanism | Long-life DC motor with screw-drive system ensures durable, smooth operation. |
| USB Compatibility | USB accessory and software included for capturing and monitoring patient sessions. |
| Range of Motion (ROM) | Knee: -10° to 120° Hip: 75° to 10° |
| Foot Positioning | Plantar Flexion: 40° Dorsal Flexion: 30° Abduction/Adduction: 30° |
| Speed Range | Adjustable from 45° to 155° per minute |
| Device Dimensions | 37″ L × 13″ W × 13″ H |
| Device Weight | 26 lbs. |
| Patient Sizing | Height: 57″ to 77″ Full leg: 28″ to 39″ Tibia: 15″ to 21″ Femur: 13″ to 18″ |
| Maximum User Weight | 298 lbs. |
| User Warranty | Full 2-Year Manufacturer's Warranty |
Kinetec Spectra Knee CPM Machine Manual
Frequently Asked Questions (FAQs)
How do I activate and set the session timer?
To enable the timer, use the TIMER button on the hand control. If the display shows “00H00,” the timer is inactive. Simply set a session duration between 00H01 and 24:00 hours, and the timer will activate.
What is the Warm-Up feature and how does it work?
The Warm-Up mode gradually increases knee motion. Starting at 70 % of your preset ROM, it increments by 5 % every other movement cycle until it reaches full range—typically in about seven cycles.
How can I override the preset ROM mid-session?
Use the ROM Bypass (By-Pass) mode during an active session. By pressing and holding the respective flexion or extension buttons, you can manually adjust to a new ROM limit based on patient comfort, then save it mid-cycle.
How do I lock and unlock the hand control to prevent accidental changes?
Press the lock/unlock key combination (usually [▲] + [▼]) on the hand control. The display will show LOCK when locked and UNLOCK when unlocked. It automatically locks each time the device is powered on. This prevents unintended adjustments.
How do I set up and run a personalized therapy program?
To create or modify one of 16 stored therapy profiles: Turn off the machine, then power it on while holding the Program button. Select a program slot (1–16), set ROM, speed, force, pauses, and timer. Press Program again to save, then restart the device to use your custom settings.
What safety features prevent injury during resistance increases?
The device includes a Force Reversal feature: if the patient resists or muscles contract beyond the set threshold, the machine automatically reverses movement to protect against strain.
