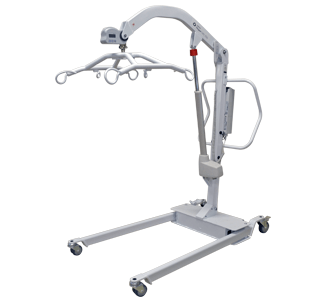

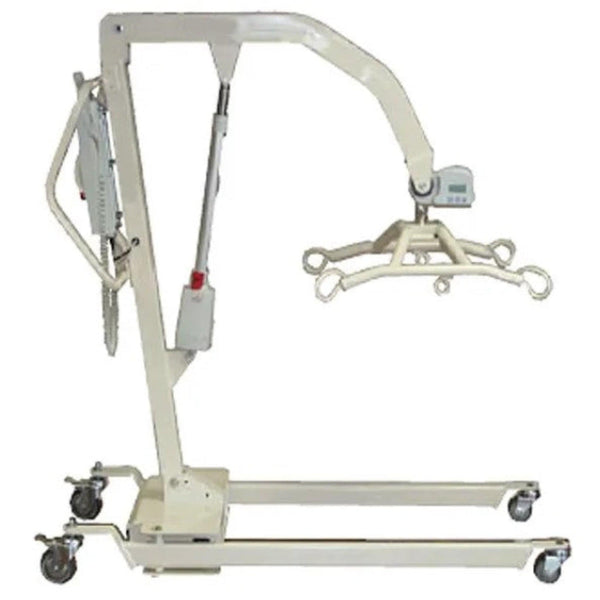

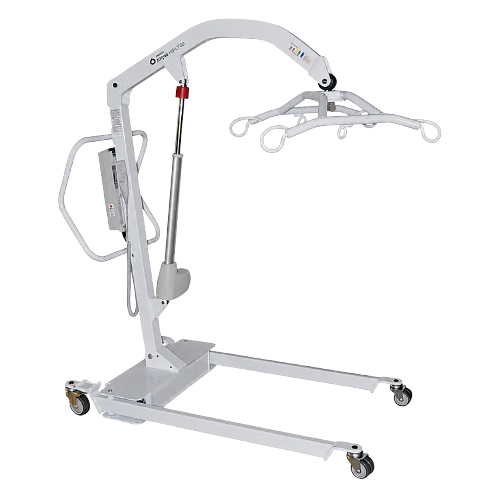

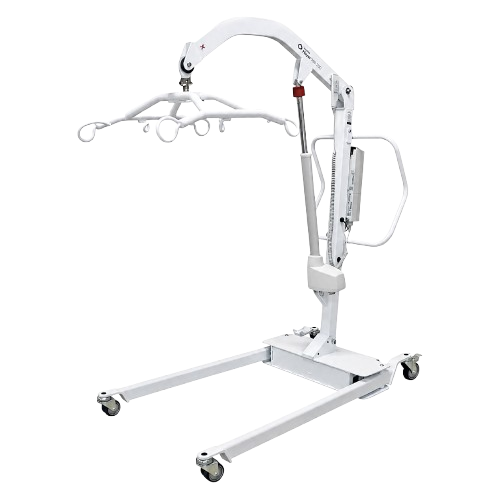

HPL700 Heavy-Duty Bariatric Patient Lift | 700 lb Electric Patient Lift with Optional Digital Scale
The HPL700 Heavy-Duty Bariatric Patient Lift is an electronically powered patient lift designed to provide safe, efficient transfers for larger patients in hospitals, rehabilitation centers, long-term care facilities, and home care settings. With a 700 lb. safe working load, it offers exceptional strength, stability, and smooth lifting to improve patient comfort while reducing caregiver strain.
The HPL700 is available with or without an integrated digital weigh scale, featuring easy-to-read dual-sided displays and intuitive controls for convenient weight monitoring during patient transfers.
Heavy-Duty Bariatric Patient Lift Features & Benefits

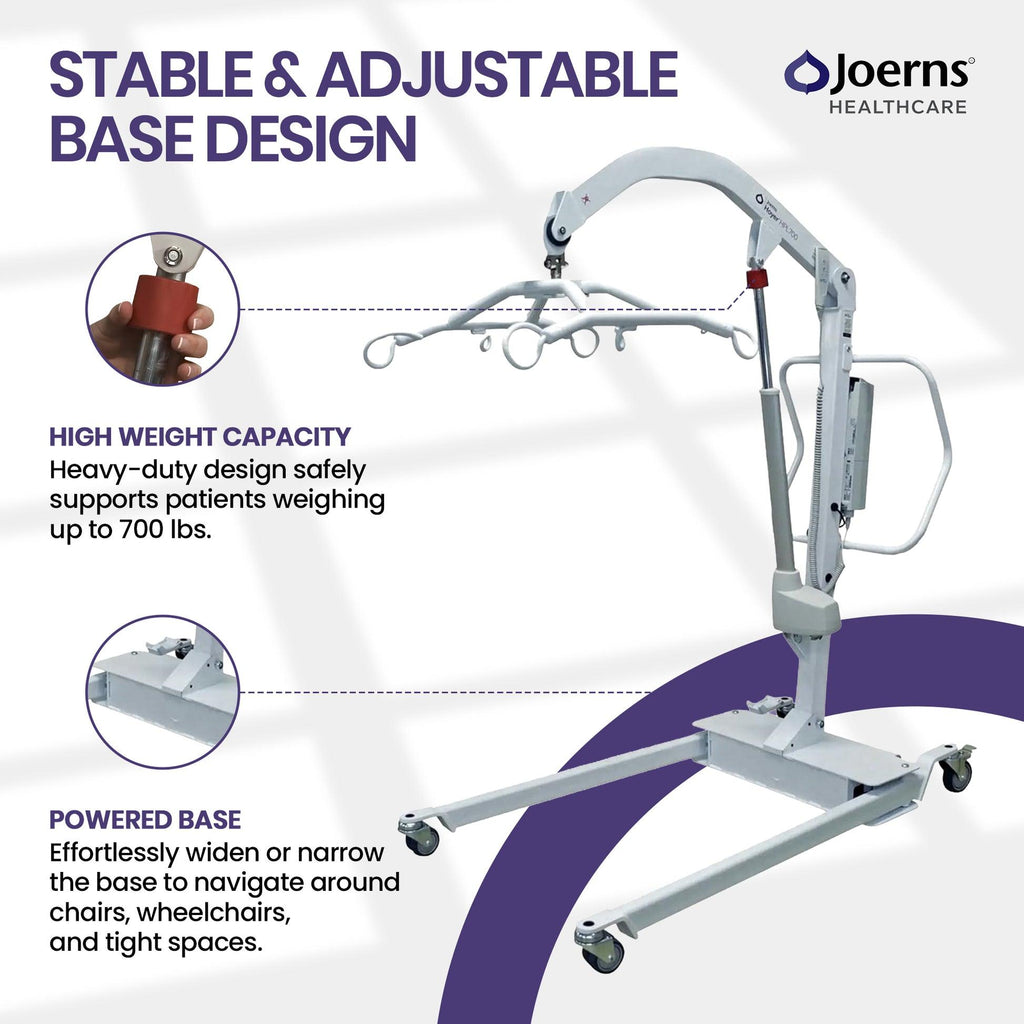

- Powered Base Mobility: Electronically powered base allows caregivers to easily widen or narrow the lift legs for smooth positioning around beds, wheelchairs, and other furniture.
- 700 lb. Weight Capacity: Heavy-duty design safely supports patients weighing up to 700 lbs., making it ideal for bariatric care.
- Extra-Wide Patient Cradle: Spacious cradle provides enhanced stability, comfort, and support for larger patients during lifting and transfers.
- Ergonomic Oversized Handles: Large, easy-grip handles offer improved maneuverability and greater control when positioning or transporting the lift.
Joerns Hoyer® Power 700 HD Bariatric Patient Lift Specifications
| Safe Working Load | 700 lbs. |
| Maximum Overall Length | 56 in. |
| Minimum Overall Length | 55 in. |
| Maximum Overall Height | 81 in. |
| Minimum Overall Height | 57.75 in. |
| Reach at Maximum Height | 28.5 in. |
| Reach at Minimum Height | 27 in. |
| Maximum Reach | 37.75 in. |
| Safety Standard | Tested to EN ISO 10535, the internationally recognized standard for patient lifts |
Joerns Hoyer® Power 700 HD Bariatric Patient Lift User Manual, Warranty & Brochure
Frequently Asked Questions (FAQs)
What is the weight capacity of the HPL700 Bariatric Patient Lift?
The HPL700 Heavy-Duty Bariatric Patient Lift has a 700 lb. safe working load, making it an ideal solution for safely transferring bariatric patients in hospitals, rehabilitation centers, long-term care facilities, and home care environments. Its reinforced construction provides exceptional stability and dependable performance during every transfer.
Does the HPL700 include a built-in patient weigh scale?
The HPL700 is available with or without an integrated digital weigh scale. Models equipped with the scale feature dual-sided digital displays and intuitive controls, allowing caregivers to accurately monitor patient weight during transfers without the need for a separate weighing device.
What types of patient transfers can the HPL700 perform?
The HPL700 is designed to safely transfer patients between beds, wheelchairs, recliners, stretchers, commodes, and other care surfaces. Its powered lifting mechanism, electronically adjustable base, and extra-wide cradle provide smooth, stable transfers while improving patient comfort and reducing caregiver strain.
Is the HPL700 suitable for home care as well as healthcare facilities?
Yes. The HPL700 is designed for use in hospitals, rehabilitation centers, skilled nursing facilities, bariatric care units, and home healthcare settings. Its powered base, ergonomic controls, and heavy-duty construction make it a versatile solution wherever safe, high-capacity patient lifting is required.
What safety features does the HPL700 offer?
The HPL700 is engineered with safety as a priority. It features a 700 lb. safe working load, an electronically powered adjustable base for enhanced stability, an extra-wide patient cradle for secure support, ergonomic maneuvering handles, and has been tested to EN ISO 10535, the internationally recognized safety standard for patient lifts. These features help ensure safe, reliable patient transfers while promoting confidence for both caregivers and patients.
