Elevate Patient Care with Fluid Immersion Comfort

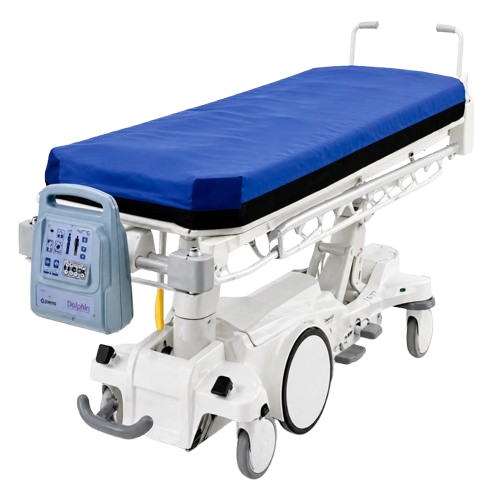

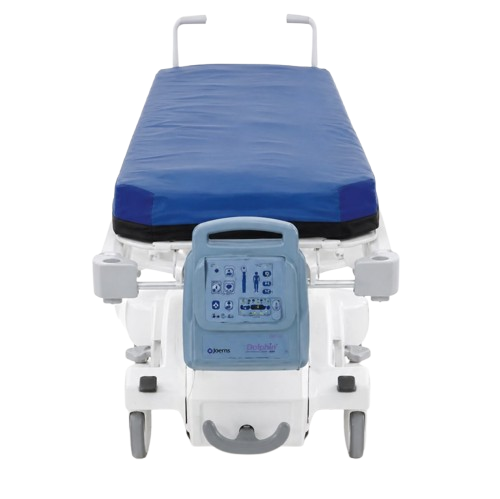

The Joerns Dolphin Fluid Immersion Simulation (FIS) Stretcher Pad System is an advanced therapeutic support surface designed to deliver superior comfort and protection during patient transport and transfers. By simulating a fluid-like environment, it automatically conforms to each patient’s body shape, weight, and movement—providing exceptional pressure redistribution, improved circulation, and effective pain management.
With an intelligent control unit that requires no manual adjustments, this system helps prevent and treat wounds while enhancing overall patient care.
Powerful Features That Redefine Patient Support
- Fluid Immersion Technology: Simulates a neutrally buoyant environment, allowing the patient to “float” while reducing pressure on vulnerable areas and improving overall comfort.
- Automatic Patient Adaptation: Continuously adjusts to each patient’s body shape, weight, and position in real time—no manual input required.
- Advanced Pressure Redistribution: Minimizes pressure points and soft tissue stress, helping prevent and treat pressure ulcers, burns, grafts, and other wounds.
- Enhanced Pain Management: Reduces discomfort by evenly distributing body weight and minimizing pressure on sensitive areas such as the ischial tuberosity.
- Improved Circulation Support: Promotes healthy blood flow while reducing tissue deformation, supporting faster healing and better patient outcomes.
- Low Friction & Shear Protection: Smooth nylon surface reduces friction and shear forces to help protect delicate skin during movement and transport.
- Breathable, Moisture-Wicking Material: Keeps patients cool and dry, preventing skin maceration and maintaining a healthier microclimate.

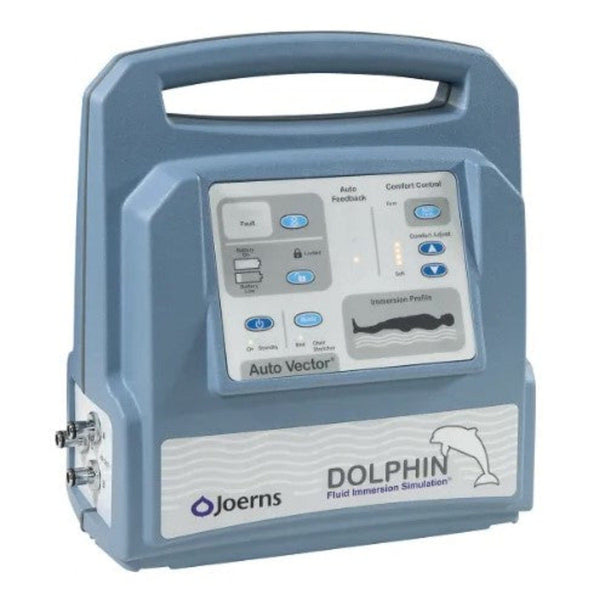

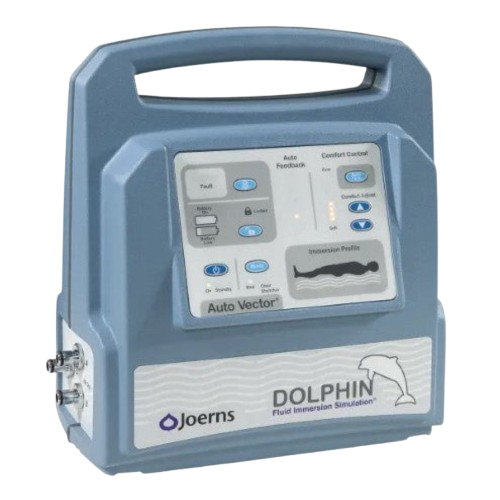

- Intuitive Therapy Control Unit: User-friendly interface with automatic operation eliminates the need for caregiver adjustments.
- Battery Backup & Safety Alerts: Rechargeable battery provides up to 12 hours of operation during power loss, with audible and visual alerts for added safety.
Joerns Dolphin FIS Stretcher Pad System Specifications
| Stretcher Pad Dimensions | 76" L x 31" W x 5" D |
| Stretcher Pad Weight | 14 lbs. |
| Maximum Weight Capacity | 700 lbs. |
| Electrical Requirements | 90–240 VAC, 50/60 Hz |
| Operating Temperature | 50°F – 104°F (10°C – 40°C) |
| Operating Humidity | 30% – 75% (Non-Condensing) |
| Storage Temperature | 50°F – 104°F (10°C – 40°C) |
| Storage Humidity | 10% – 100% |
| Compliance (North America) | UL 60601-1, CAN/CSA C22.2 No. 601.1 |
Joerns Dolphin Fluid Immersion Simulation Stretcher Pad System Additional Information
Frequently Asked Questions (FAQs)
How does Fluid Immersion Simulation (FIS) technology benefit patients?
Fluid Immersion Simulation technology creates a “floating” effect by evenly distributing the patient’s weight across the surface. This significantly reduces pressure points, minimizes tissue stress, improves circulation, and enhances overall comfort—making it highly effective for both wound prevention and pain management.
Does the stretcher pad require manual adjustments?
No, the system is fully automatic. The intelligent therapy control unit continuously adapts to each patient’s body shape, weight, and position in real time. Caregivers do not need to make manual adjustments, which saves time and ensures consistent, optimal support.
What types of patients or conditions is this system best suited for?
This stretcher pad is ideal for patients at risk of or currently experiencing pressure ulcers, burns, grafts, or other skin integrity issues. It’s also highly beneficial for individuals requiring pain management or extended support during transport, including bariatric patients (up to 700 lbs capacity).
What happens if there is a power outage during use?
The system includes a built-in rechargeable battery backup that provides up to 12 hours of operation in the event of a power loss. It also features audible and visual alerts to notify caregivers of any power disruption, ensuring patient safety at all times.
How does the material help protect the patient’s skin?
The stretcher pad is made with a breathable, moisture-wicking nylon fabric that helps keep the skin dry and reduces the risk of maceration. Its low-friction, low-shear surface minimizes skin irritation and damage during movement and transfers.
