Smart Fluid Immersion Technology for Pediatric Pressure Care and Wound Management
The Dolphin FIS (Fluid Immersion Simulation) Pediatric Mattress is an advanced therapeutic support surface designed to mimic the effects of floating in fluid—without using any liquid. By continuously adapting to each patient’s body weight, shape, and movement, the system delivers exceptional pressure redistribution and pain relief.
This intelligent, fully automated mattress promotes healthy blood flow, reduces tissue stress, and supports vital bodily functions, all while eliminating the need for manual adjustments. Designed for both patient comfort and caregiver ease, it sets a new standard in pediatric pressure care and wound management.
Advanced Features Designed for Superior Pediatric Care
- Fluid Immersion Therapy: Replicates the benefits of water immersion to provide superior pain relief, pressure redistribution, and improved circulation.
- Advanced Wound Care Support: Helps treat and prevent pressure injuries by reducing tissue breakdown and promoting healing.
- Fully Automated System: Continuously adapts to each patient’s weight, shape, and movement with no manual input required.
- Real-Time Monitoring: Control unit adjusts the surface over 100 times per second to maintain optimal immersion and support.
- No Manual Adjustments Needed: Simplifies caregiver workflow while ensuring consistent therapeutic performance.
- Extended Battery Backup: Up to 12 hours of operation during power loss for uninterrupted therapy.
- Comprehensive Pressure Management: Reduces friction and shear forces while enhancing overall patient comfort.
- Wide Clinical Applications: Effective for conditions such as burns, grafts, pressure ulcers, amputations, arthritis, and oncology-related care.
- Enhanced Safety Features: Audible alarms and LED indicators alert caregivers in case of power disruption or system disconnection.
Joerns Dolphin FIS Pediatric Mattress System Specifications
| Primary Mattress Dimensions | 82" L x 35" W x 10" D |
| Primary Mattress Weight | 22 lbs. |
| Primary Mattress Weight Capacity | 300 lbs. |
| Crib Mattress Dimensions | 57" L x 29.5" W x 5" D |
| Crib Mattress Weight Capacity | 300 lbs. |
| Operating Temperature | 50°F to 104°F (10°C to 40°C) |
| Operating Humidity | 30% – 75% (non-condensing) |
| Storage Temperature | 50°F to 104°F (10°C to 40°C) |
| Storage Humidity | 10% – 100% |
| Battery Backup | Up to 12 hours |
Joerns Dolphin Fluid Immersion Simulation Pediatric Mattress System Additional Information
Frequently Asked Questions (FAQs)

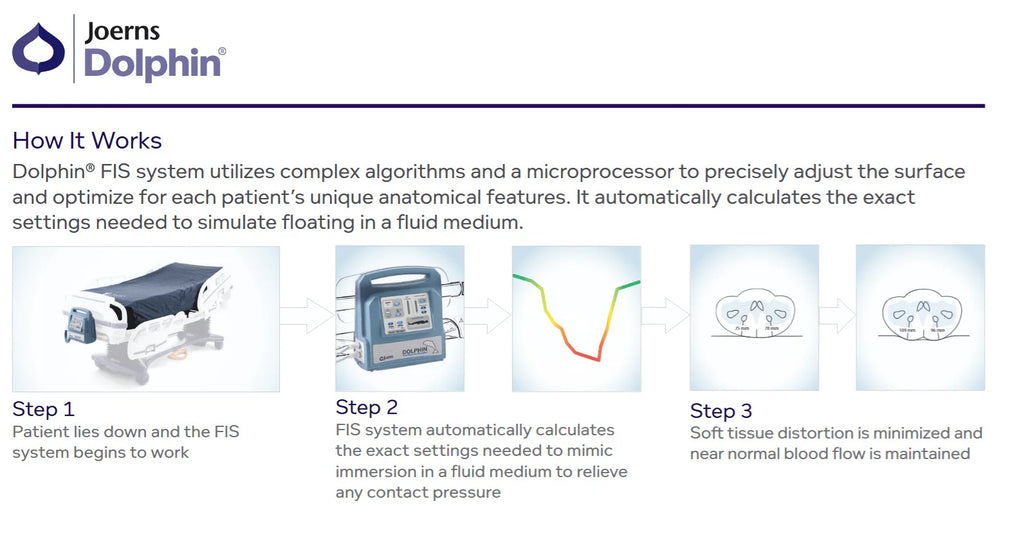

How does Fluid Immersion Simulation (FIS) technology work?

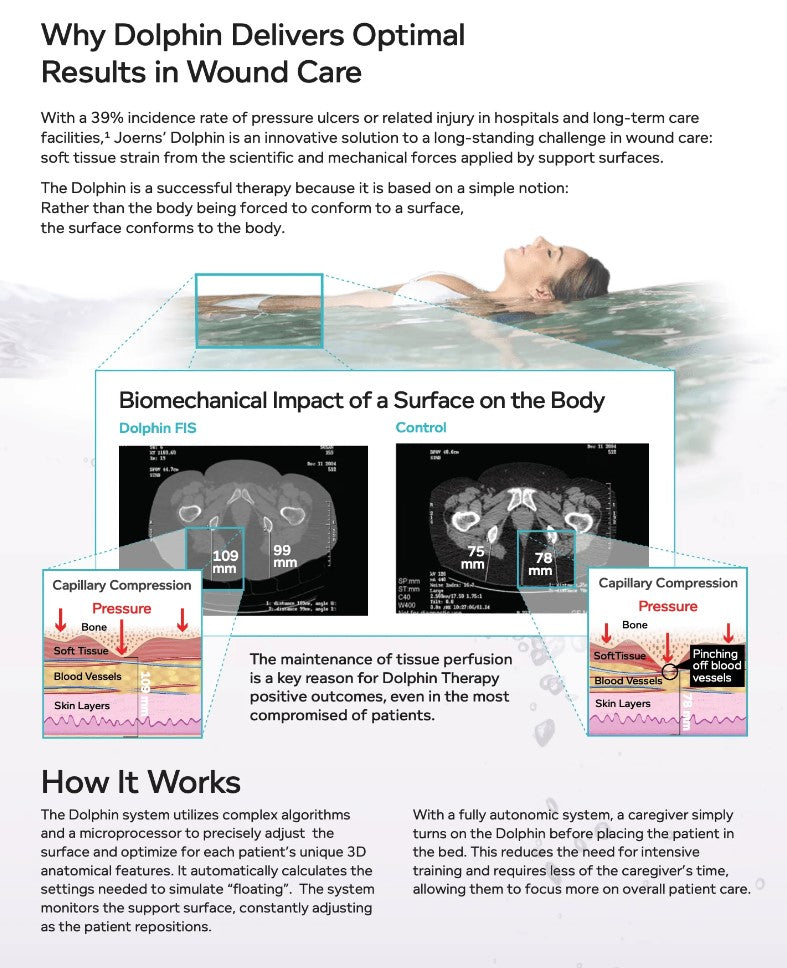

The Dolphin FIS Pediatric Mattress simulates the sensation of floating in fluid—without using any liquid. It continuously adapts to the patient’s body weight, shape, and movement, creating a near-neutral pressure environment that reduces tissue stress, improves circulation, and enhances overall comfort.
Is the mattress fully automatic, or does it require manual adjustments?

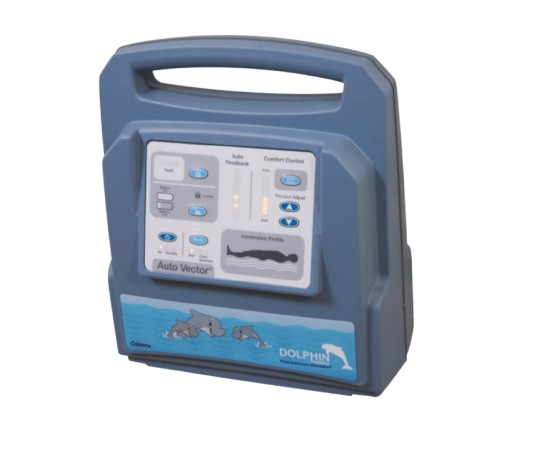

The system is completely automated and requires no manual adjustments. The control unit monitors and adjusts the support surface over 100 times per second, ensuring optimal pressure redistribution and immersion at all times without caregiver intervention.
Can this mattress help treat or prevent pressure injuries?
Yes, the Dolphin FIS system is specifically designed to help treat and prevent pressure injuries. By minimizing pressure, friction, and shear forces, it supports wound healing, reduces tissue breakdown, and promotes healthier skin integrity.
What types of patients or conditions is this mattress best suited for?
This mattress is ideal for pediatric patients requiring advanced pressure care, including those with burns, grafts, pressure ulcers, amputations, arthritis, or undergoing oncology treatments. It’s designed to provide both therapeutic support and enhanced comfort across a wide range of clinical needs.
What happens if there is a power outage?
The system includes a built-in rechargeable battery backup that provides up to 12 hours of continuous operation during power interruptions. It also features audible alarms and LED indicators to alert caregivers of any power loss or system disconnection.
