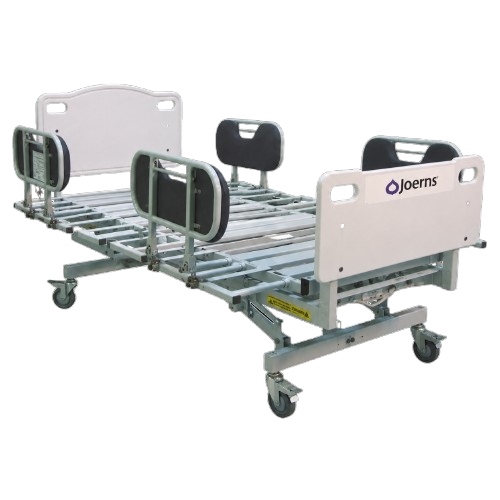

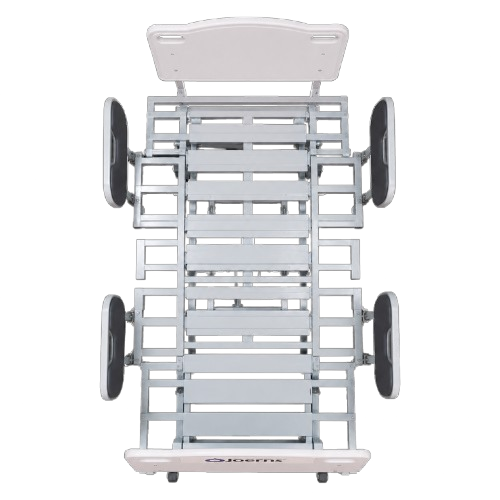

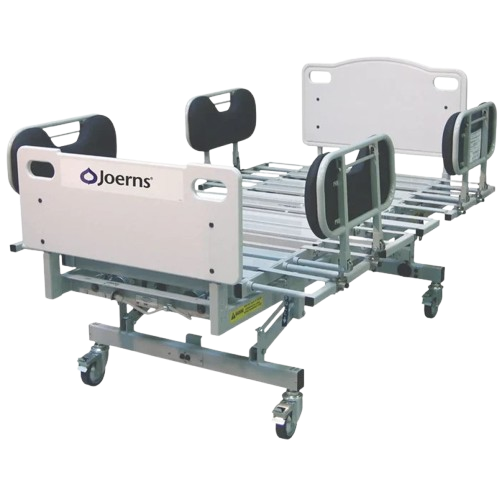

Smart, Strong, and Versatile: The Joerns RC 750 Bariatric Bed Solution
The Joerns RC 750 Bariatric Healthcare Bed System is a durable, high-capacity solution designed to deliver reliable comfort, safety, and flexibility in demanding care environments. Built to support up to 750 lbs, this electric bed features an adjustable width design that easily adapts to different patient needs while maintaining smooth transport through tight spaces.
With essential positioning functions, caregiver-friendly features, and a cost-effective design, the RC 750 is an ideal choice for home care and alternate care settings.
Engineered for Strength, Safety, and Everyday Ease
- High Weight Capacity: Supports up to 750 lbs., making it ideal for bariatric patient care.
- Adjustable Width Design: Expands from 39" to 54" using a simple pull-pin system for customizable comfort.
- Three-Function Electric Control: Enables hi-low, head (Fowler), and knee gatch positioning for improved patient support.
- Split Frame Construction: Allows for easier delivery, setup, and storage.
- Expandable Bed Deck: Navigates through doorways as narrow as 40" for smooth transport.
- Wide Mattress Compatibility: Accommodates mattresses up to 54" wide for enhanced comfort.
- Padded Side Rails: 3-position wing-style rails provide added safety and patient security.
- Integrated Accessories: Includes IV pole and Foley bag holder for convenience in care.
- Optional Trapeze Support: Available add-on to assist with patient mobility and repositioning.
- Cost-Effective Solution: Designed to deliver bariatric care performance at an affordable price point.
Joerns Bariatric Healthcare Bed System RC 750 Specifications
| Mattress Width Options | 37", 39", 42", 48", 54" |
| Bed Deck Length | 84" standard, 96" with optional extender |
| Overall Frame Size | 39.5" – 56.5" W x 88" L |
| Deck Height Range | 17 – 30 in. |
| Head/Footboard Width | 38 in. |
| Weight Capacity | 750 lbs. |
| Total Bed Weight | 483 lbs. |
| Power Requirements | 115 VAC, 60 Hz, 10.5 AMP |
| User Warranty | Covered by a 5-year warranty for workmanship and materials, and a 1-year warranty for the electrical system, ensuring product quality and customer satisfaction. |
Joerns Bariatric Healthcare Bed System RC 750 User Manual & Warranty
Frequently Asked Questions (FAQs)
What is the maximum weight capacity of the Joerns RC 750 bed?
The RC 750 is built to support up to 750 lbs., making it a reliable and safe solution specifically designed for bariatric patient care in both home and clinical settings.
Can the bed fit through standard doorways?
Yes, the RC 750 features an expandable bed deck and split frame design that allows it to be transported through doorways as narrow as 40 inches, making delivery and setup much easier.
How does the adjustable width feature work?
The bed width can be quickly adjusted from 39" to 54" using a simple pull-pin system. This allows caregivers to customize the bed for different patient sizes without complicated tools or setup.
What positioning functions does the bed offer?
The RC 750 includes three electric functions: height adjustment (hi-low), head elevation (Fowler position), and knee gatch. These features help improve patient comfort, circulation, and ease of care.
Does the bed come with a warranty?
Yes, the bed is backed by a 5-year warranty on workmanship and materials, along with a 1-year warranty on the electrical system, providing added peace of mind and long-term reliability.
