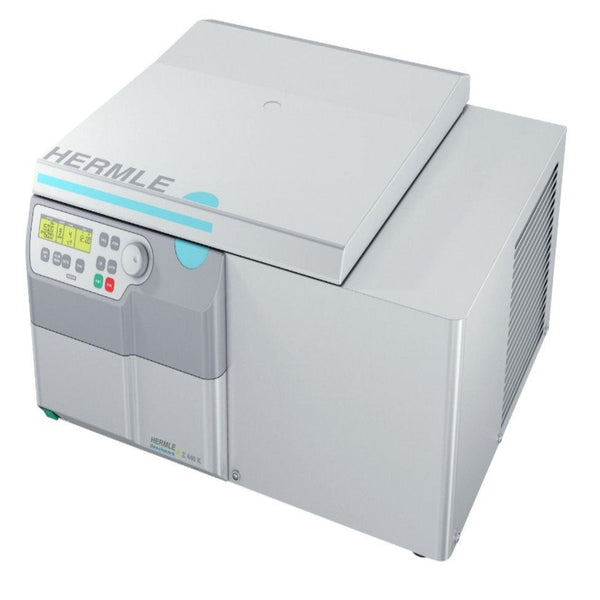

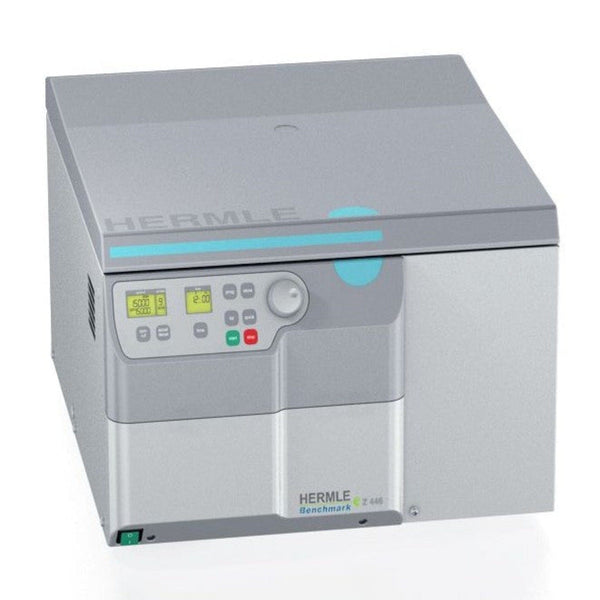

Hermle Z446 Universal High Capacity Centrifuge

The Z446 series of universal centrifuges by Hermle-Benchmark is the ultimate benchtop model with the highest capacity available. It features a durable premium alloy construction commonly used in aircraft. The 4 x 750ml swing-out rotor can handle centrifugal forces of up to 4,500 xg, accommodating loads of up to 28 x 50ml tubes, 68 x 15ml tubes, or 20 x microplates.

With advanced microprocessor controls, this centrifuge instantly recognizes the rotor and adjusts the rotational speed to the appropriate g-force (rcf), preventing users from exceeding the rotor's capabilities. The user-friendly front panel allows easy access to saved programs and enables adjustments to acceleration, deceleration rates, and the end-of-run alarm tone. Swapping rotors is quick, taking less than a minute, and an included rotor wrench facilitates easy installation. Upon placing a rotor on the motor shaft, the identification process activates, displaying the corresponding rotor code on the backlit LCD screen.

Please note: One rotor is required for Z446 Series Centrifuges. Please select a rotor found in the accessories tab.

Key Details

• Maintenance-free induction drive
• Microprocessor with a large LCD display
• Motor-driven lid lock
• Automatic radio-frequency rotor identification system (RFID) with over speed protection, activated immediately upon rotor insertion
• Audible signal at the end of each run with multiple melody options
• Noise level below 65 dBA (depending on the rotor)
• Manufactured in compliance with international safety regulations
• Stainless steel chamber

 Z446-K Features

• Temperature range: -20°C to 40°C
• CFC-free refrigeration system
• Preselection of temperature with 1°C increments
• Indication of sample temperature
• Pre-cooling program option

Distinct Control Panel

• Simple one-handed operation
• Easy programming even while wearing gloves
• Foil keyboard for easy input
• Permanent indication of preset and actual values
• Speed selection in both rpm and g-force, with increments of 10
• Ten acceleration and deceleration rates
• Pre-selection of running time from 10 seconds to 99 hours 59 minutes or continuous operation
• Quick-key for short runs
• Storage capacity for up to 99 runs, including rotor information
• Timer function: the centrifuge starts at the preselected time

Specifications

• Dimensions Z446 and Z446-E: 21.3 x 26.4 x 15.4 in.
• Dimensions Z446-K and Z446-K-E: 28.7 x 26.4 x 15.4 in.
• Speed: 200 to 16,000rpm
• Power Requirement Z446 and Z446-K: 115V
• Power Requirement Z446-E and Z446-K-E : 230V
