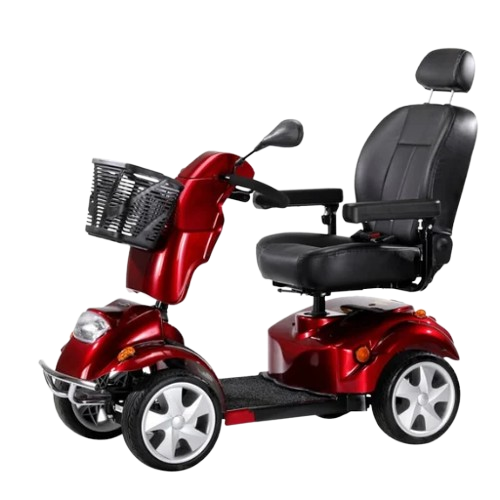

Powerful, Comfortable Mobility Built for Bigger Adventures
The FreeRiderUSA FR510F II Mobility Scooter is designed for riders who want extra space, stability, and dependable performance for everyday mobility. With a 500-lb. weight capacity, comfortable captain’s seat, and 12.5-inch flat-free tires, the FR510F II delivers a confident and comfortable ride.
Front and rear suspension help absorb bumps and vibrations, while the delta tiller provides easy steering and control. With an 8 mph top speed and 20-mile travel range, this rear-wheel-drive scooter is well suited for longer outings and everyday use.
Designed for Comfort, Confidence & Everyday Freedom
- 500-Lb. Weight Capacity: Provides sturdy support for a wide range of riders.

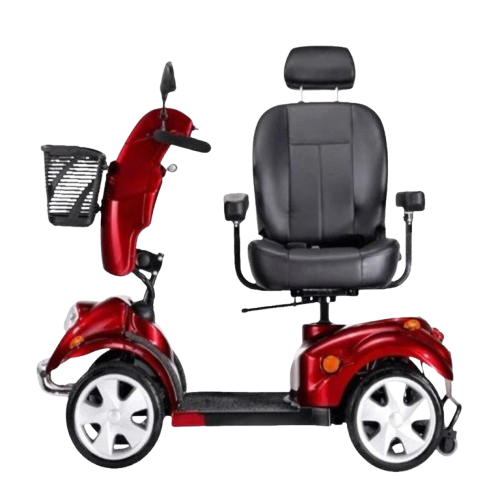

- Comfortable Captain’s Seat: The adjustable swivel captain’s seat offers supportive seating and makes getting on and off easier.
- Smooth Suspension: Front and rear suspension help absorb bumps and vibrations for a more comfortable ride.
- 12.5-Inch Flat-Free Tires: Maintenance-free PU tires eliminate the need to worry about punctures and frequent tire maintenance.

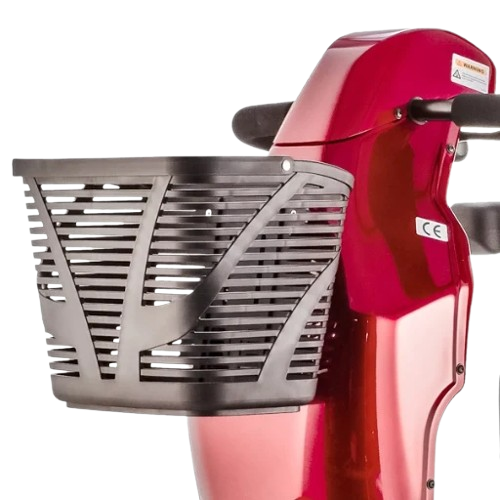

- Easy-to-Use Delta Tiller: Ergonomic delta tiller design makes steering and operating the scooter easier.
- 8 MPH Top Speed: Provides dependable speed for navigating sidewalks, neighborhoods, shopping areas, and other everyday destinations.
- 20-Mile Range: Offers enough travel range for extended outings without frequent recharging.
- Spacious 20-Inch Seat: Provides additional seating room for a more comfortable riding experience.
- Rear-Wheel Drive: The 24-volt motor and sealed mini-transaxle deliver reliable everyday performance.
- Convenient USB Ports: Built-in USB ports on the tiller provide convenient access to device charging while you're on the go.
FreeRiderUSA FR 510F II Mobility Scooter Specifications
| Weight Capacity | 500 lbs. |
| Travel Range | 15 or 20 miles |
| Battery | 36ah or 50ah |
| Top Speed | 8 mph |
| Seat Dimensions (WxD) | 20 x 20 in. |
| Seat Type | Adjustable Swivel Captain Seat |
| Motor | 24-Volt DC Motor, Sealed Mini-Transaxle |
| Drive System | Rear-Wheel Drive |
| Suspension | Front and Rear Suspension |

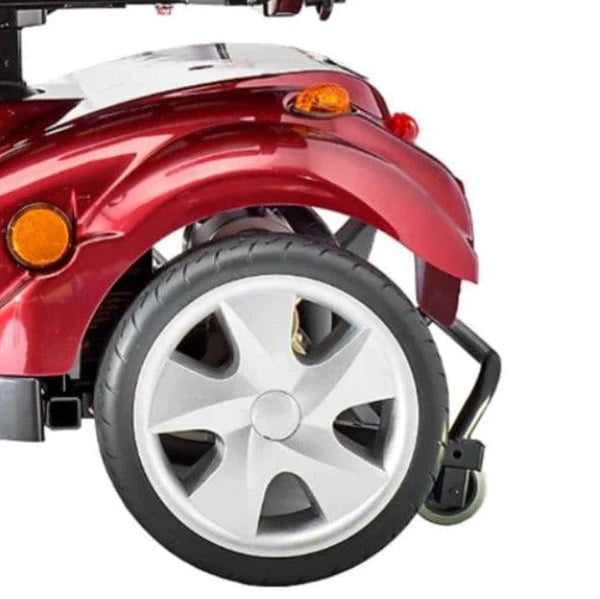

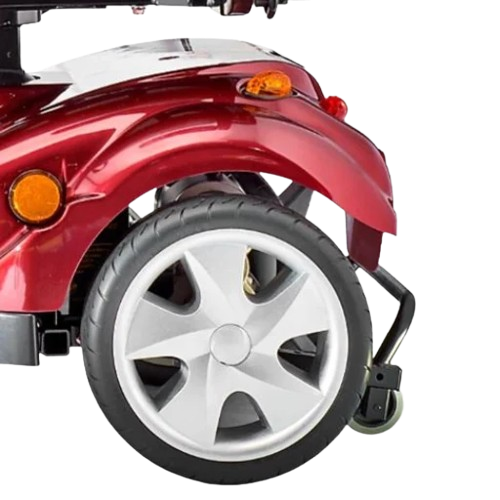

| Tires | 12.5" PU Flat-Free |
| Turning Radius | 64 in. |
| Ground Clearance | 3.5 in. |
| Maximum Incline | 6° |
| Scooter Weight | 170.3 lbs. |
| USB Ports | On Tiller |
FreeRiderUSA FR 510F II Mobility Scooter User Manual & Warranty
Frequently Asked Questions (FAQs)
What is the weight capacity of the FreeRiderUSA FR510F II Mobility Scooter?
The FR510F II has a 500-lb. weight capacity, making it a suitable option for riders who need a sturdy, heavy-duty mobility scooter.
How far can the FR510F II travel on a single charge?
The FR510F II offers a 20-mile travel range on a full charge, providing plenty of range for everyday errands, shopping trips, and longer outings.
What is the top speed of the FR510F II Mobility Scooter?
The scooter has a top speed of 8 mph, allowing you to travel efficiently while maintaining comfortable and controlled mobility.
Is the FR510F II comfortable for extended rides?
Yes. The FR510F II features a 20-inch adjustable swivel captain’s seat, along with front and rear suspension designed to absorb bumps and vibrations for a smoother, more comfortable ride.
Do the tires on the FR510F II require regular maintenance?
The scooter uses 12.5-inch PU flat-free tires, which eliminate the risk of traditional pneumatic tire punctures and reduce routine tire maintenance.
