Safe, Convenient Stair Transport Without Leaving the Wheelchair
The Atlas Portable Wheelchair Stairlift by Mobile Stairlift is our newest innovation into transporting individuals using a wheelchair or patient transport device up or down a flight of stairs, offering a practical solution similar to a portable lift for elderly individuals in multi-level homes and care environments.
Designed to accommodate a wheelchair or transport chair with seat sizes of 16" 18" or 20" widths.

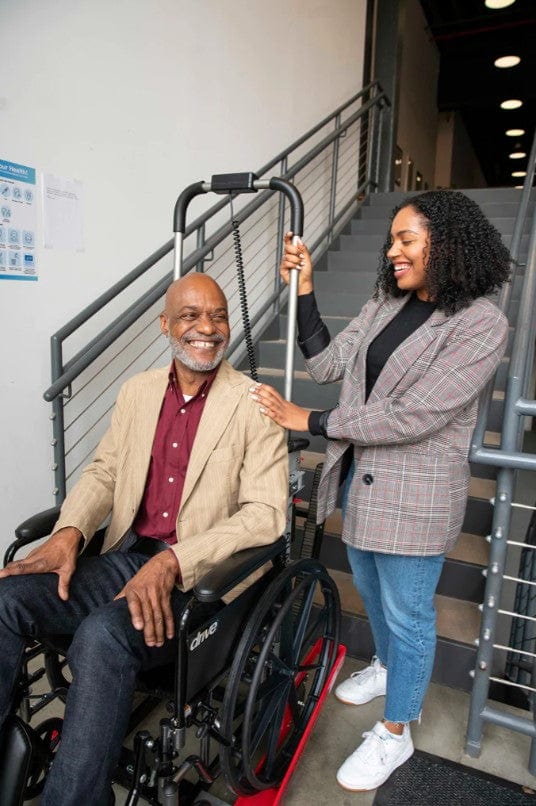

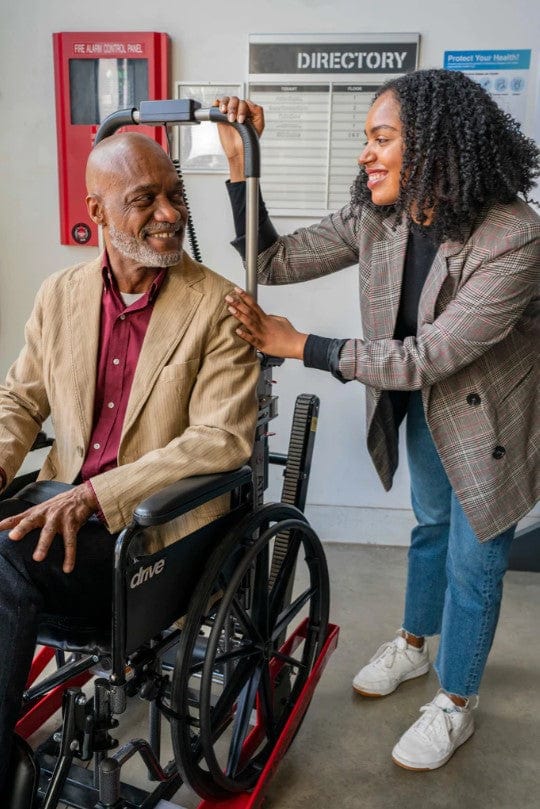

The Atlas Wheelchair Lift offers wheelchair users the added ability to remain in their wheelchair reducing the need to transfer in and out of the wheelchair to the stair climbing chair lift, making it a practical alternative to a mechanical lift for patients in multi-level environments. To prevent injury, it is recommended that the operator be properly trained in the Stairlift's use, and that they first practice descending stairs without a rider.

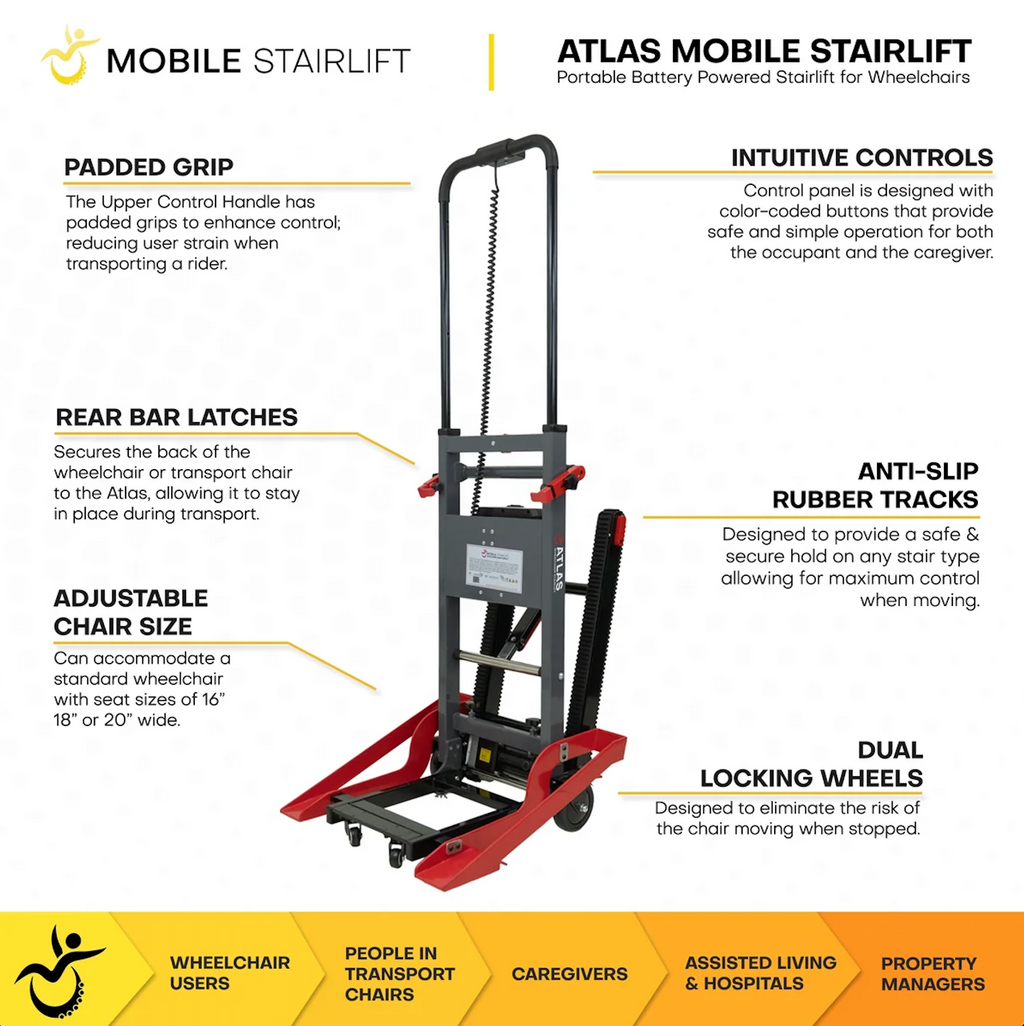

Designed for Safer, Easier Wheelchair Stair Transport

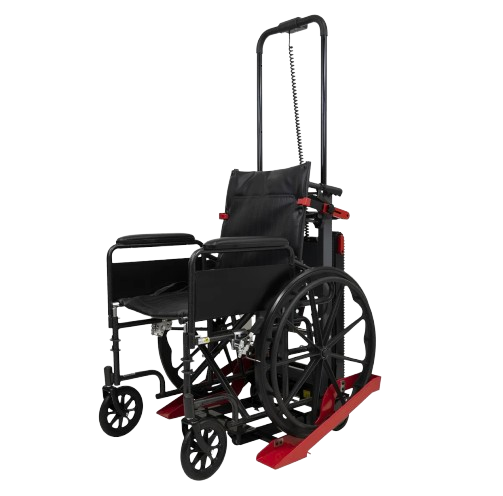

- Designed for Wheelchair Users: Allows riders to remain fully seated in their own wheelchair during stair transport, eliminating the need for transfers before or after use.

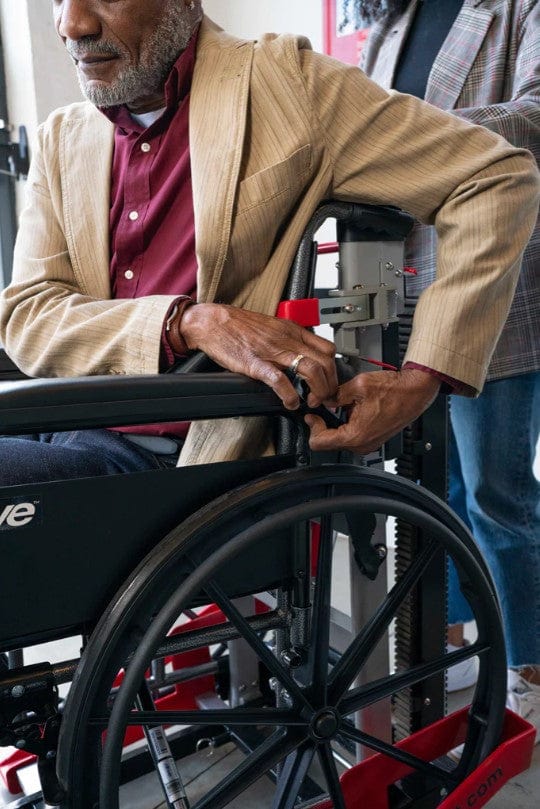

- Safe Wheelchair Securing System: Integrated wheelchair frame clasps, wheel supports, and seatbelt restraints securely lock the wheelchair in place for stable and controlled stair travel.
- Powered Up & Down Stair Movement: Motorized anti-slip rubber tracks provide smooth, controlled ascent and descent on stairs without the need for manual lifting.
- Straight Staircase Compatibility: Designed specifically for straight staircases and operates safely on wood, carpet, tile, concrete, and most standard indoor and outdoor stair surfaces.

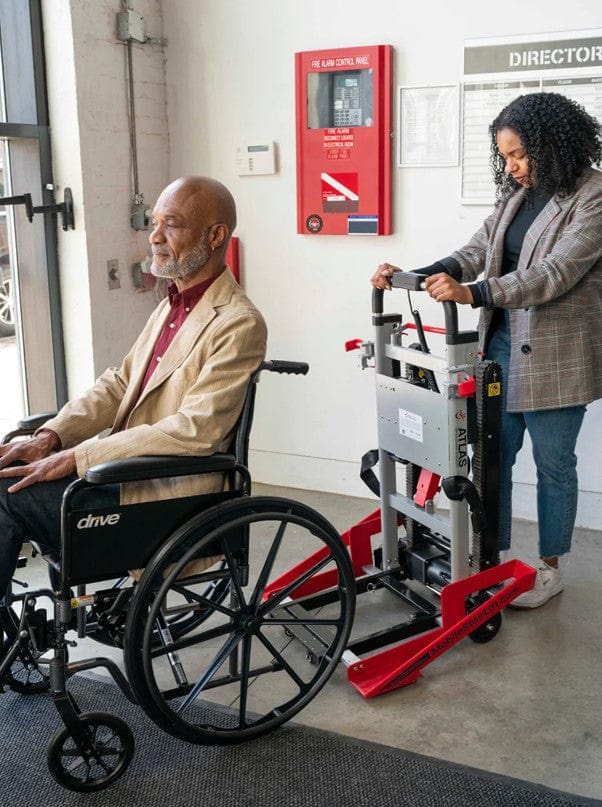

- Flat Surface Transport Function: A four-wheel base allows the Atlas to transport wheelchair users across flat surfaces before and after stair travel for seamless mobility.

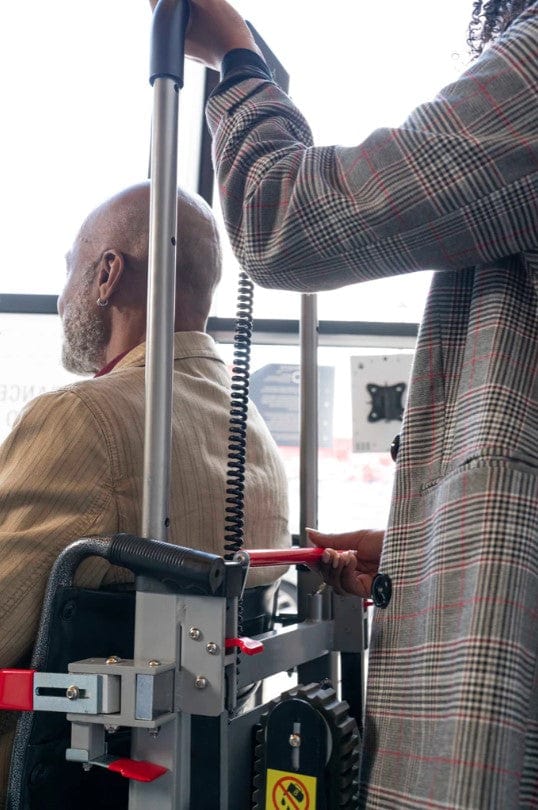

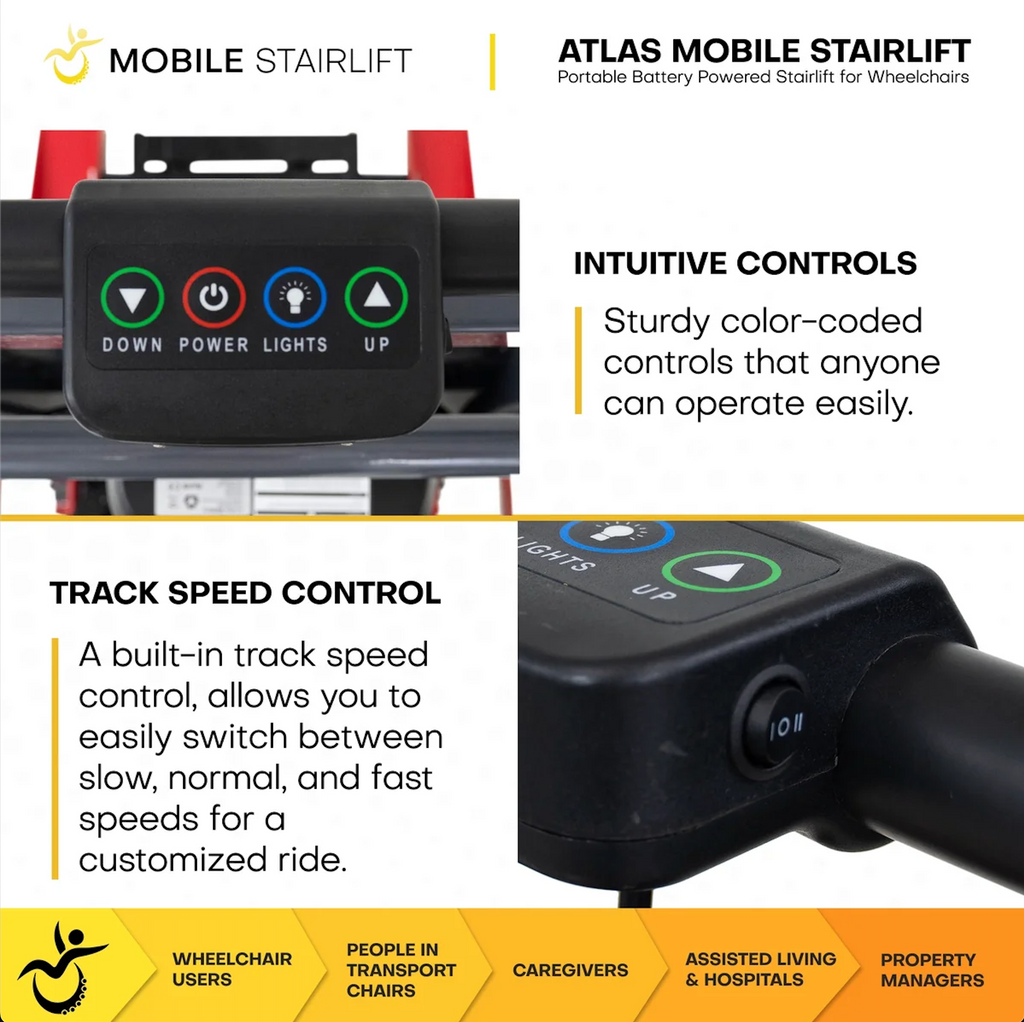

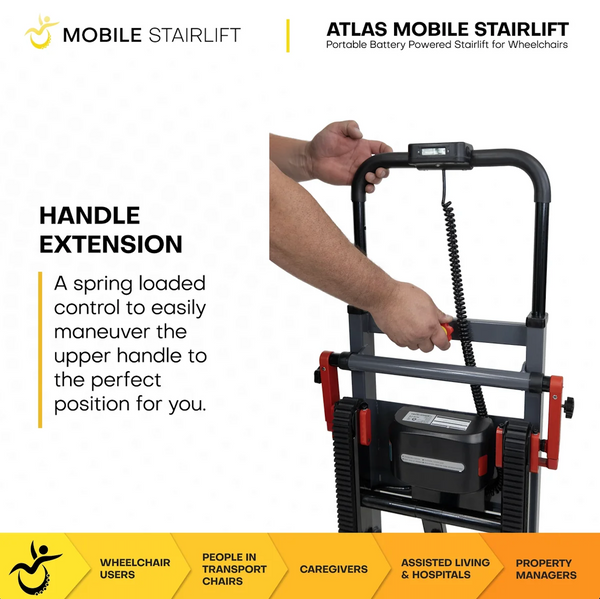

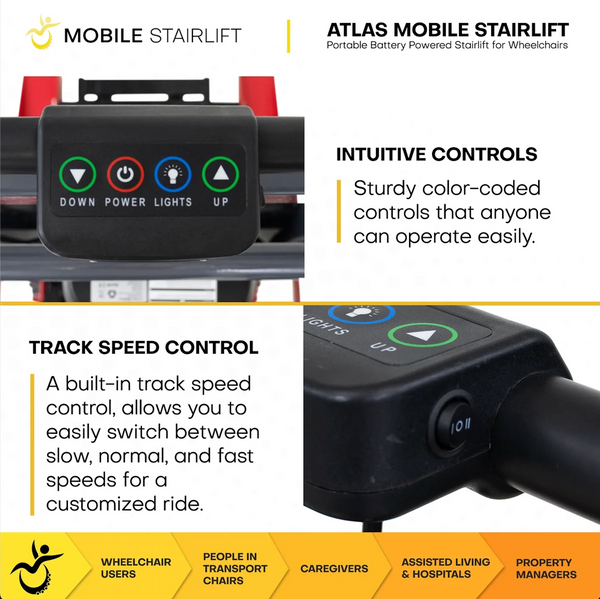

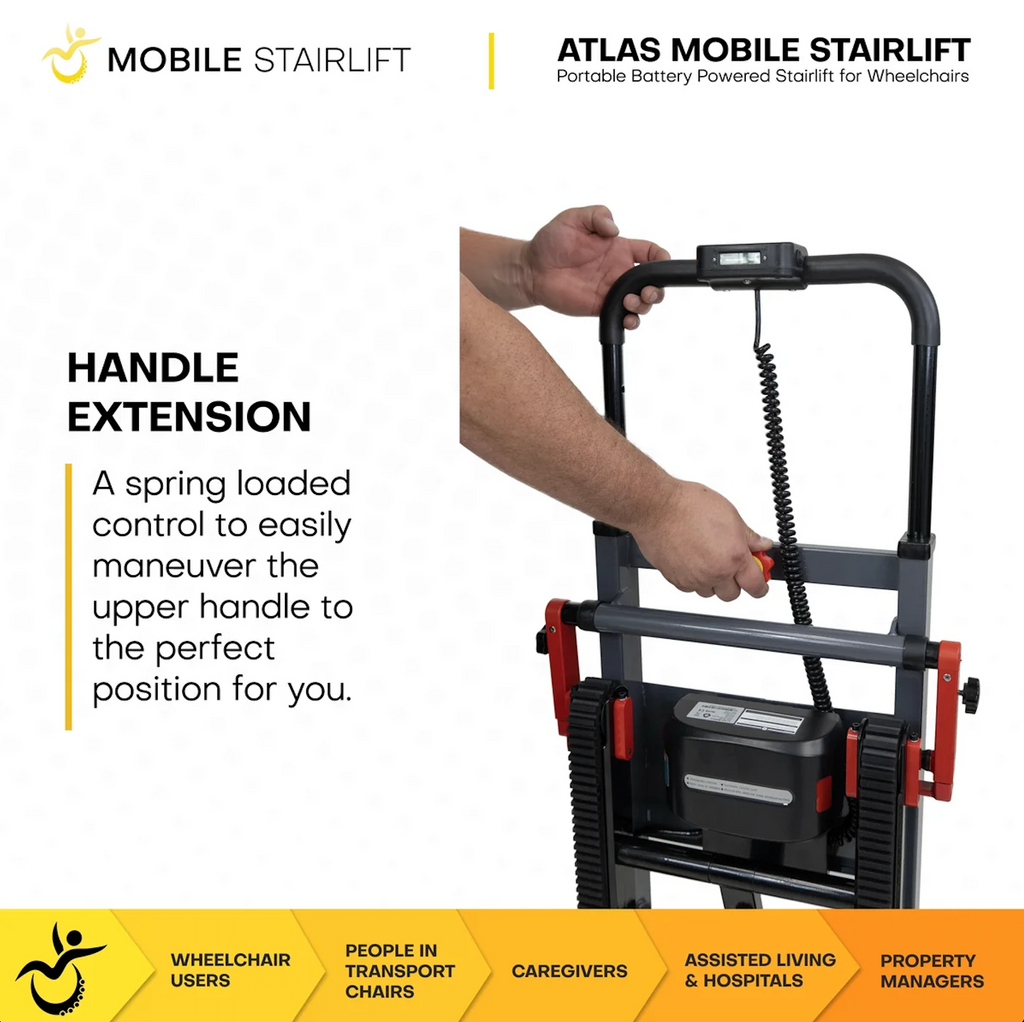

- Operator-Controlled Handle System: Adjustable push handles provide caregivers with full control and maneuverability during both flat-ground movement and stair operation.
- Anti-Slip Track & Wheel Lock Safety: Track tension controls, rear wheel brakes, and handlebar locking mechanisms provide multiple layers of protection for both riders and operators.
- No Transfer Required: Eliminates one of the highest-risk mobility challenges by allowing users to remain safely seated in their wheelchair throughout the entire transport process.
- Home, Facility & Emergency Use Ready: Ideal for private homes, assisted living communities, rehabilitation centers, hospitals, schools, public buildings, and emergency evacuation situations.

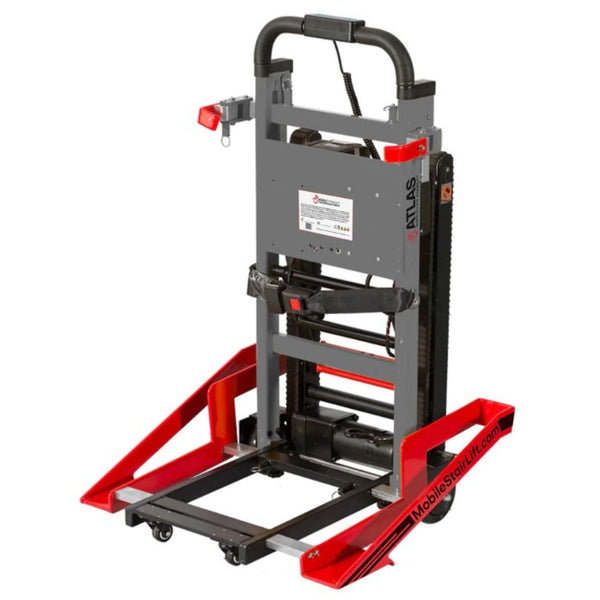

Atlas Stair Climbing Wheelchair Lift Specifications
| Weight Capacity | 440 lbs. |

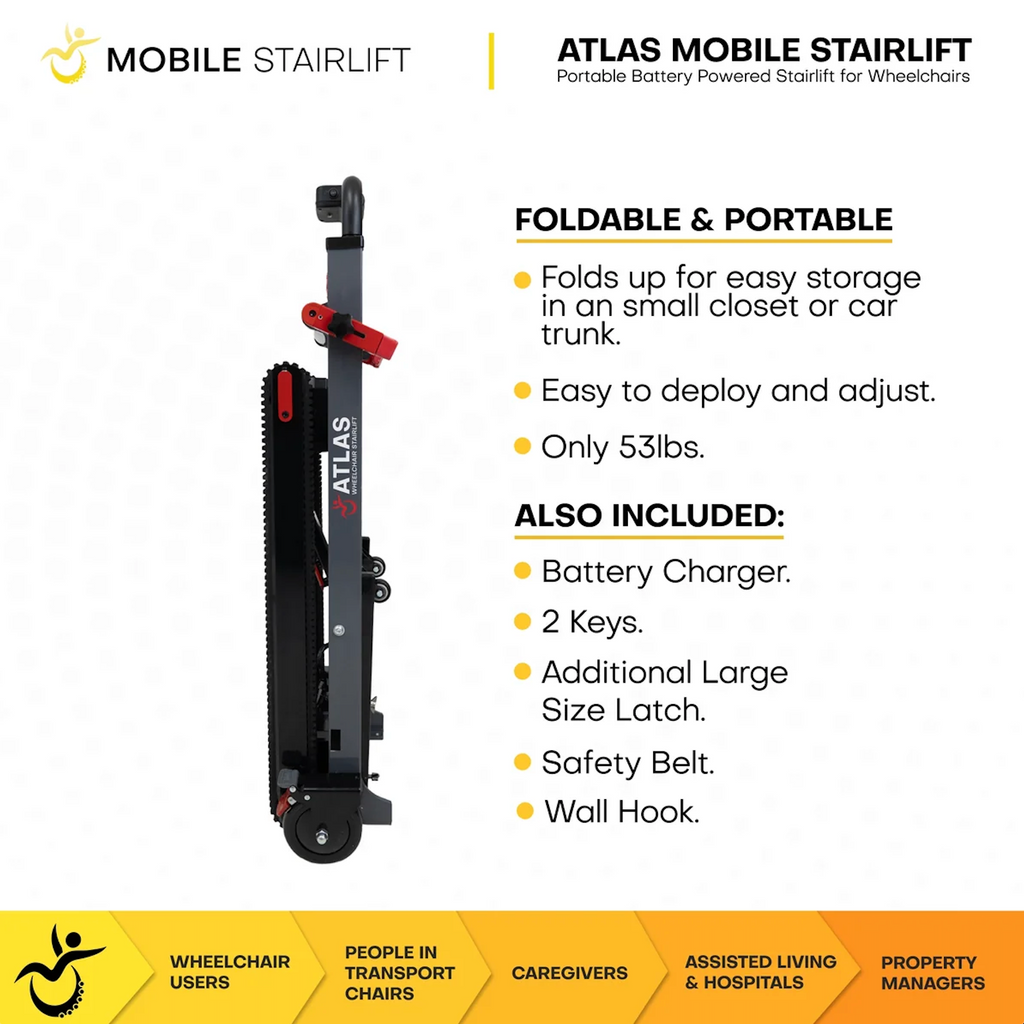

| Unit Weight | 53 lbs. |
| Wheelchair Seat Width Compatibility | 16, 18, 20 in. |
| Adjustable Base Width | 23 to 31 in. |
| Push Handle Length | 8 in. |
| Front Wheel Height | 1.5 in. |
| Rear Wheel Height | 5 in. |
| Rear Bar Latch Width | 4.75 to 6.5 in. |
| Track Length | 32 in. |
| Overall Height | 63 in. |
| Handle Heights | 41, 47, 57, 63 in. |
| Rear Handle Length | 8 in. |
| Climbing Distance | Up to 120 flights per charge |
| Minimum Landing Area | 44 × 44 in. |
| Frame Material | Steel |
| Climbing Speed | 0.4 meters per second |
| Battery Type | Lithium Ion |
Atlas Stair Climbing Wheelchair Lift User Warranty
Frequently Asked Questions (FAQs)
Can the Atlas Stairlift transport someone while they remain in their wheelchair?
Yes. The Atlas is designed to transport users while they remain seated in their own wheelchair, eliminating the need for a transfer into a separate stair-climbing chair. The wheelchair is secured using integrated frame clasps, wheel supports, and seatbelt restraints.
What size wheelchairs are compatible with the Atlas?
The Atlas is designed to accommodate wheelchairs and transport chairs with seat widths of 16, 18, or 20 inches. Its adjustable base width ranges from 23 to 31 inches to help accommodate compatible wheelchair configurations.
How much weight can the Atlas Portable Wheelchair Stairlift support?
The Atlas has a 440 lb. weight capacity, which includes the wheelchair and rider. Always verify the combined weight of the user and wheelchair before operation.
Can the Atlas be used on any type of staircase?
The Atlas is designed specifically for straight staircases and can operate on many common surfaces, including wood, carpet, tile, and concrete. A minimum landing area of 44 × 44 inches is recommended. The operator should also be properly trained and practice using the unit without a rider before transporting a person.
How far can the Atlas travel on a single battery charge?
The Atlas uses a lithium-ion battery and can climb up to 120 flights per charge, depending on operating conditions, rider and wheelchair weight, and other factors. Its powered anti-slip tracks provide controlled movement both up and down compatible staircases.
