ACOPOWER 800W Mono Black Solar System

Save $902.00

Sale price$4,798.00 Regular price$5,700.00
local_shipping Delivery By 4 - 6 days

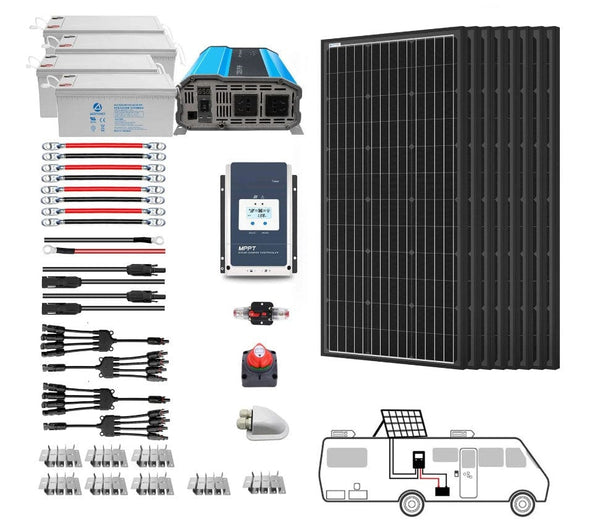

ACOPOWER 800 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 800 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 8pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 4pcs 200Ah Gel Deep Cycle Battery, 60-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
  • Solar charging will provide about 3840 Watt Hours (Wh) or 320 Amp hours of charge per day (depends on sunlight availability)
  • Perfect kit for having an off-grid 12 volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, back-up and remote power use
  • Bundle and save! Purchase all the components together and save time and money!
  • Complete kit includes: 8pcs 100 Watt Monocrystalline Solar Panel, 4pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 60-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets;
  • California, USA based company in 11+ years solar industry supplies technical support, customer service and warranty; Reliable & trustable local business.


100W Monocrystalline Black Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

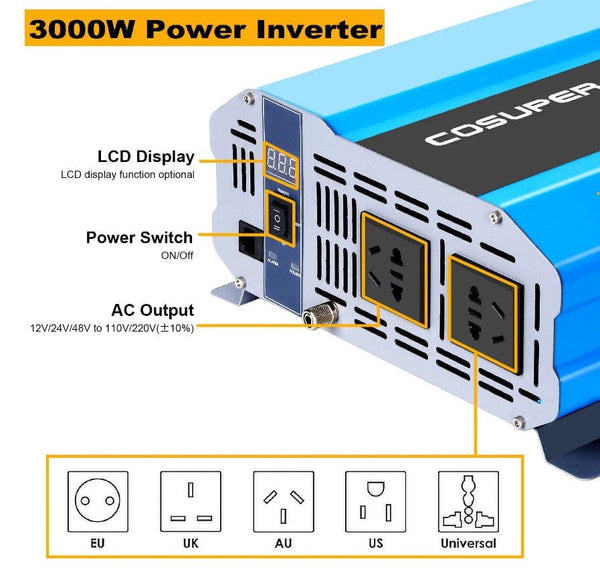

3000W Inverter 12VDC to 120VAC
 Continuous output 3000W
 Surge Power 6000W
 Wave Form: Pure Sine Wave
 Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
 Weight: 12.1lb
 dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

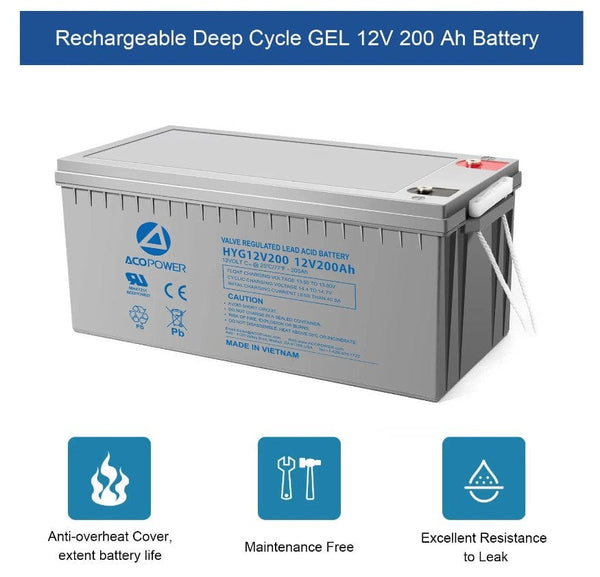

12V 200 Ah Rechargeable Deep Cycle GEL Battery
 Nominal Voltage 12V
 Rated capacity (10 hour rate): 200Ah
 dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
 Approx. Weight: 62.5kg(137.5lbs)±3%

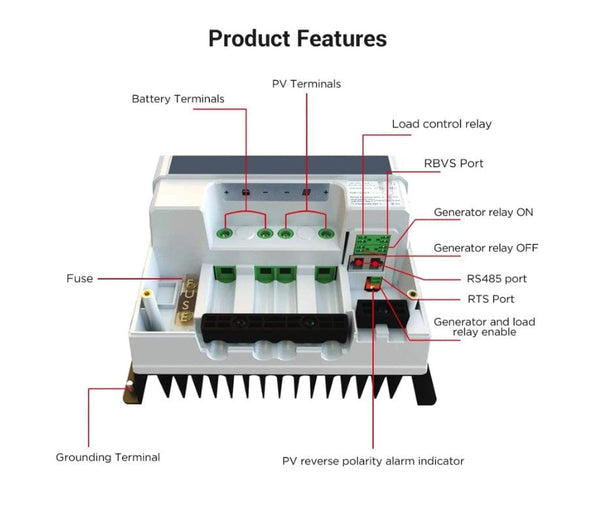

MPPT 60A Charge Controller
• Rated charge current: 60A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

Package List:
• 8PCS 100W Mono Solar Panel
• 1PC 3000W Inverter
• 4PC 200Ah Gel Battery
• 1PC 60A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 8 Sets Mounting Z Bracket
• 1 Pairs 30ft 12AWG PV Cable
• 4 Pairs 1Ft 2AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 7 Pairs y branch solar panel connectors



Maximum Power at STC (Pmax): 100W

Maximum Operating Voltage (Vmp): 17.48V

Maximum Operating Current (Imp): 5.71A

Dimensions: 44.5x20.1x1.4 in.

Open-Circuit Voltage (Voc): 22V

Short-Circuit Current (Isc): 6.14A

Operating Temperature: -40°C to 85°C

Weight: 12.8 lbs.


Related Power: 3000W

Peak Power: 6000W

Input Voltage: DC12V (11-14V)

Output Voltage: AC110V± 10%

Output Frequency: 50HZ ± 2HZ

Conversion Efficiency: ≥90%

USB Output: 5V 2400mA Auto (MAX)

Cooling Way: Temperature-Control Fan

Under-voltage Protection: 10.0V ± 0.5V

Shell Material: ABS+PC+ Aluminum Alloy

Weight: 12.1 lbs.

Overload Protection: 1800W±100W

Overtemperature Protection: 105±5°C

Overtemperature Protection Recover: ≤65°C

Output Short Circuit Protection: Have

THD: ≤3%

Input Quiescent Current: ≤0.6A

USB Overcurrent Protection: ≤3.5A

Display Model: LED+LCD

Over-voltage Protection: 15.5V±0.5V

Dimensions: 9.5x18.2x4.6 in.


Nominal Voltage

Terminal Type

Nominal Operating Temperature


Rated Capacity (10 Hour Rate)

Internal Resistance (Fully Charged, 25°C): Approx. 3.3m Ω

Maximum Charging Current: 40A

Weight: 137.8 lbs.±3%


Nominal System Voltage: 12v/24v/36v/48v DC Auto

Battery Input Voltage Range: 8V~68V

Max.PV Input Power: 750W/12V, 150W/24V, 2250W/36V, 3000W/48V

Battery Type: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and lithium-ion batteries

Grounding: Common Negative

Power Terminals: 6AWG (16mm2)

Dimensions: 13.3x9.1x4.1 in.

Rated Change Current: 60A

Max.PV Open Circuit Voltage: 150V/138V

MPP Voltage Range: V9BAT)+2V~108V

Charging Power and Current Limitation Function

Communication: RS485 (RJ45 Interface)

Enclosure: IP20

Weight: 7.7 lbs.
