Safe, Reliable Stairway Transport When Every Second Counts
The Mobile Stairlift EZ Evacuation Chair provides a safe, efficient way to evacuate and transport individuals with mobility limitations down staircases during emergencies.
Designed for personal use, EMS, ambulatory care, and emergency professionals, this lightweight aluminum evacuation chair supports users weighing up to 400 lbs while offering a secure and comfortable ride. Its foldable design makes it easy to store in ambulances, emergency vehicles, facilities, or closets, while its tracked system helps operators maneuver smoothly over stairs.
The chair is manually operated and does not require a battery, making it ready for use whenever an emergency occurs.
Built for Confident, Reliable Emergency Evacuation
- 400 lb. Weight Capacity: Supports individuals weighing up to 400 lbs., making it suitable for a wide range of emergency evacuation needs.
- Lightweight & Portable: Constructed from lightweight aluminum and weighing approximately 39 lbs., the chair can be easily transported and stored when not in use.

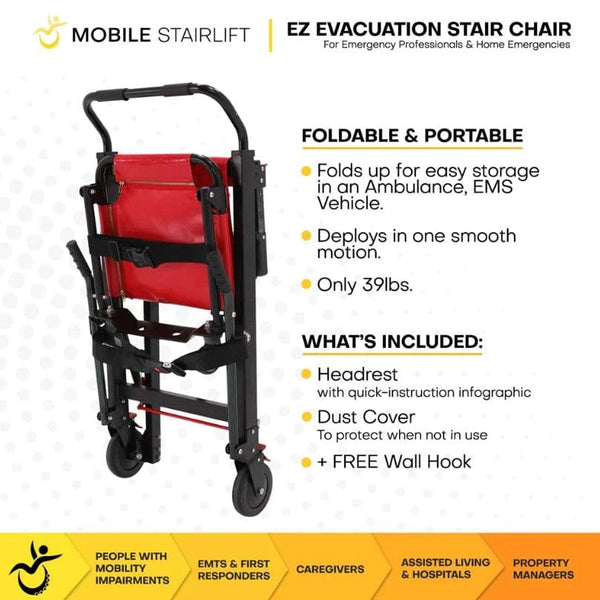

- Foldable Design: Folds for convenient storage in ambulances, EMS vehicles, firetrucks, closets, and other limited spaces.

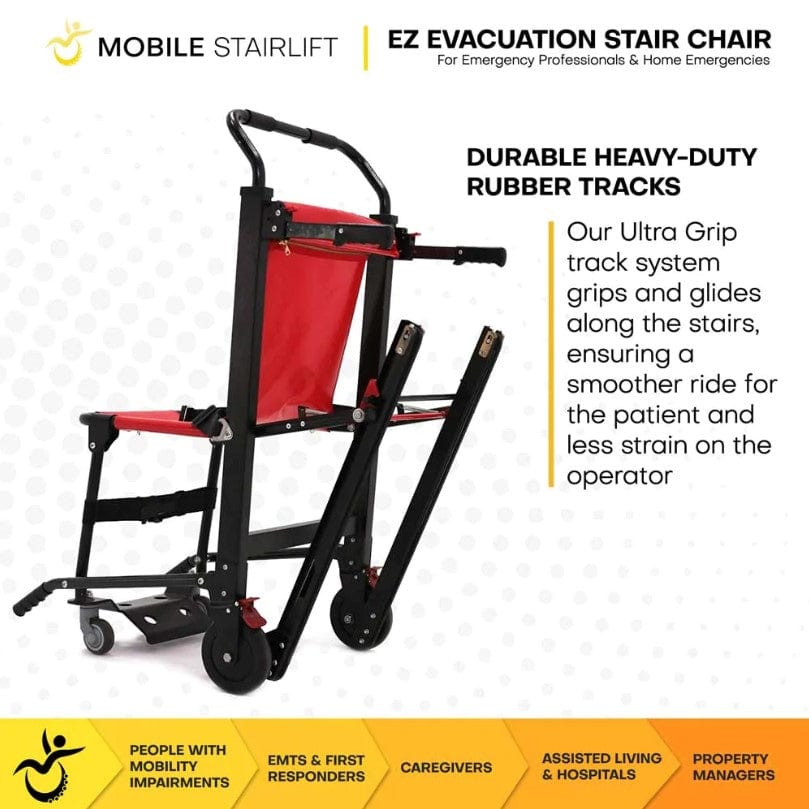

- Tracked Stair System: The integrated tracks help operators smoothly maneuver the chair over staircases during evacuation and transport.

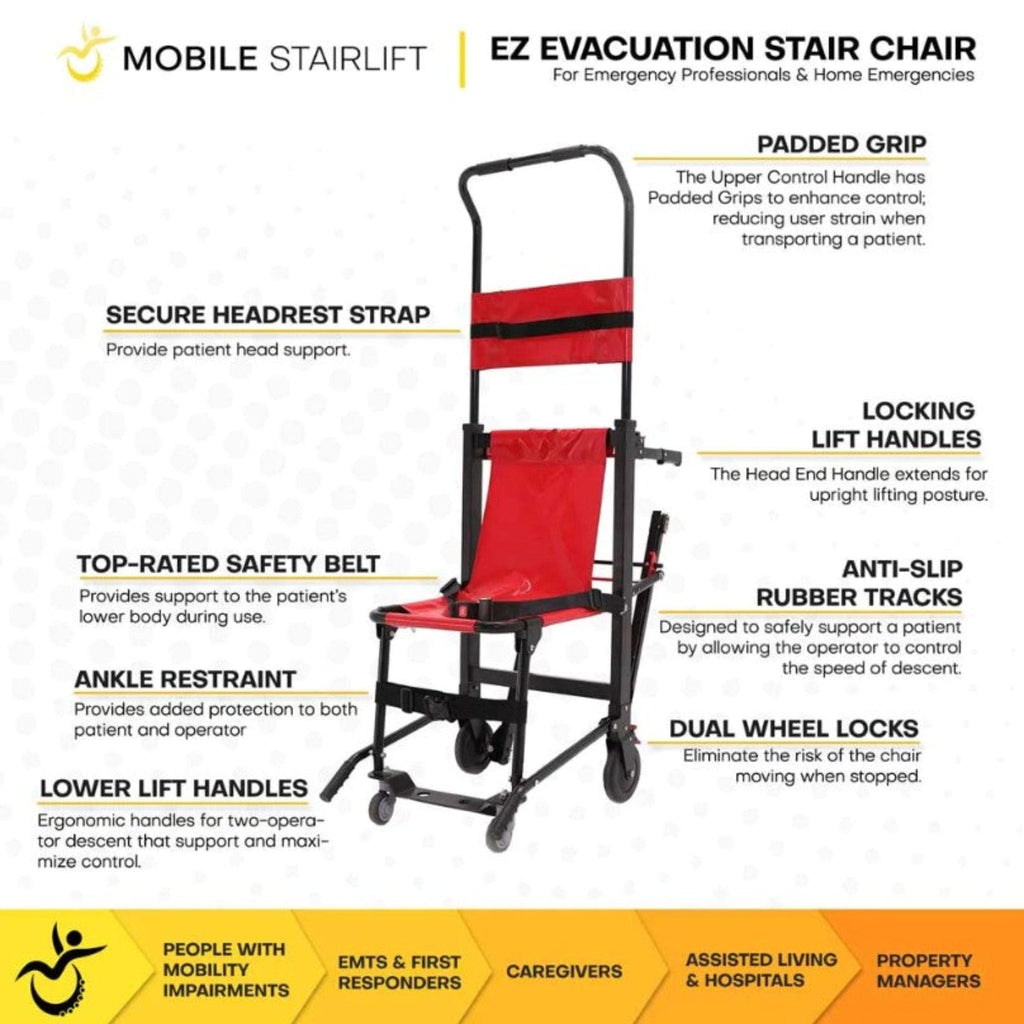

- Comprehensive Safety Features: Includes a padded ergonomic seat, headrest, footrest, rider safety belt, ankle restraints, padded hand grips, auxiliary handles, and wheel locks for added security and control.
- Manual Operation: The EZ Evacuation Chair is not battery-operated, eliminating the need to charge or maintain a battery system.
- Two-Person Operation for Ascending: When moving the chair up a staircase, two operators are required to safely maneuver the unit.

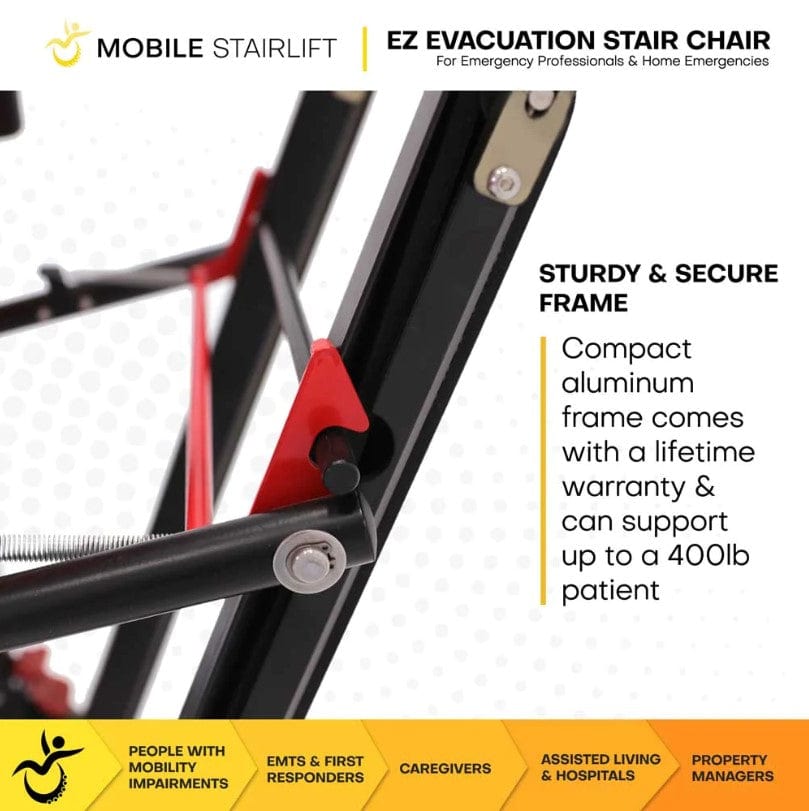

- Durable Aluminum Frame: The sturdy aluminum construction is designed for dependable use in emergency, EMS, and care environments.
- Easy to Operate: Designed to provide a straightforward and efficient method for transporting individuals who need assistance during an emergency.
- Storage Accessories: Includes a wall-mount bracket and dust cover to help keep the chair protected and conveniently stored.
- Ideal For: Care Facilities and Nursing Homes, Senior Living and Assisted Living, Hospitals and Medical Offices, Multi Story Schools and Offices, Emergency Evacuations When Elevators Are Down, Fire Drills and Egress Plan Compliance.
Mobile Stairlift EZ Evacuation Stair Chair Specifications
| Weight Capacity | 400 lbs. |
| Unit Weight | 30 lbs. |
| Shipping Weight | 45 lbs. |
| Frame Material | High Strength Aluminum Alloy |
| Seat | Removable |
| Descent Mechanism | Anti Slip Rubber Tracks |
| Track Braking | Tension Controlled |
| Track Type | Fixed |
| Track Direction | Down Only (Descent) |
| Track Length | 29 in. |
| Ascent | Two Person Manual Carry Using Front and Rear Handles |
| Power Required | None, Fully Mechanical |
| Transport Wheels | 4 |
| Front Wheel Diameter | 7 in. |
| Rear Wheel Diameter | 4 in. |
| Wheel Locks | Rear Foot Brakes |
| Seat Height | 20 in. |
| Footrest | Included |
| Footrest Length | 14 in. |
| Rear Handle Length | 10 in. |
| Upper Handle Length | 26 in. |
| Telescopic Handle Length (Retracted) | 43 in. |
| Telescopic Handle Length (Extended) | 64 in. |
| Handle Height Positions | 43, 50, 57, 64 in. |
| Overall Height | 64 in. |
| Packing Dimensions (L × W × H) | 36 × 23 × 14 in. |
| Compatible Staircase Type | Straight Stairs Only |
| Not Compatible With | Spiral and Round Staircases |
| Compatible Surfaces | Wood, Concrete, Tile, Metal, Securely Attached Carpet |
| Carpet Requirement | Must Be Fully Attached to Treads |
| Minimum Landing Area (Between Flights) | 44 × 44 in. |
| Top Landing | 38 in. (40 in. Single Flight) |
| Bottom Landing | 38 in. |
| Restraints | Waist Seatbelt, Ankle Strap, Optional Headrest Strap |
| Operation | Trained Operator Required |
| Rider Self Operation | Not Permitted |
| Contraindications | Not For Occupants With Suspected Cervical, Spinal or Fracture Injuries |

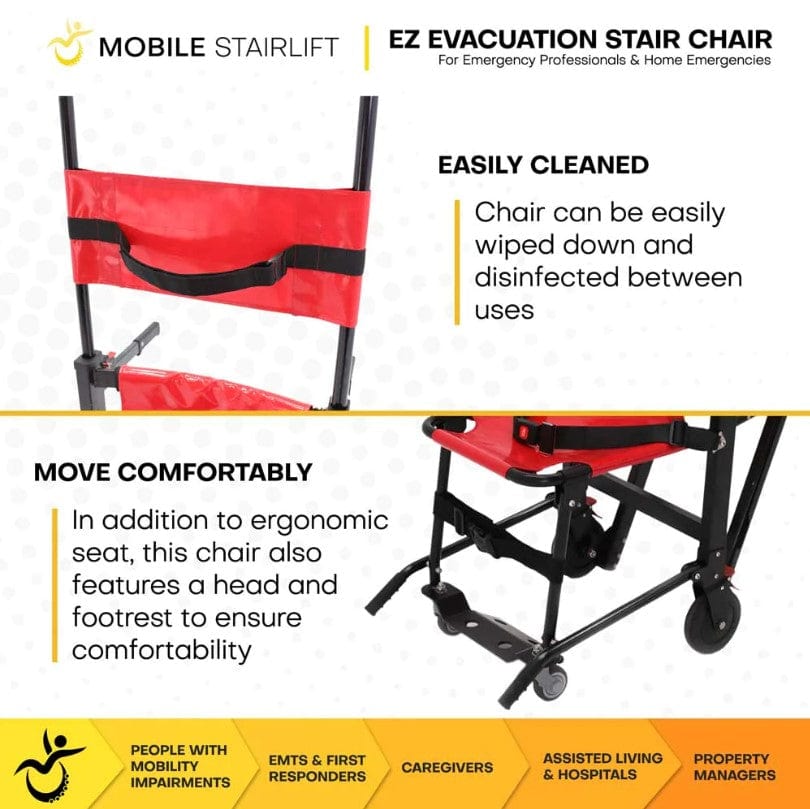

| Cleaning | Warm Water With Clean Cloth or Soft Brush |
| Do Not Use | Bleach or Phenolic Cleaners |
| Track Casing Cleaner | SD-20 All Purpose Cleaner |
| Disinfection | Recommended Between Riders in Medical Settings |
| Portability | Folds Flat; Wall Mount Compatible; Fits Most Vehicle Trunks |
| Included | Wall Mount Bracket, Protective Cover, Seatbelt, Headrest |
Mobile Stairlift EZ Evacuation Stair Chair User Warranty
Frequently Asked Questions (FAQs)
What is the weight capacity of the EZ Evacuation Chair?
The EZ Evacuation Chair has a 400 lb. weight capacity, making it suitable for transporting a wide range of individuals during emergency stairway evacuations.
Can the EZ Evacuation Chair be used to go up stairs?
Yes, but the tracked system is designed for downward stair descent only. To move the chair upstairs, it must be manually carried by two trained operators using the front and rear handles.
Does the EZ Evacuation Chair require a battery or electricity?
No. The chair is fully mechanical and requires no battery or electrical power, allowing it to remain ready for use without charging or battery maintenance.
What types of stairs can the EZ Evacuation Chair be used on?
The chair is designed for straight staircases with surfaces including wood, concrete, tile, metal, and securely attached carpet. It is not compatible with spiral or round staircases, and carpet must be securely attached to the stair treads.
Can anyone operate the EZ Evacuation Chair?
The chair requires a trained operator, and the rider cannot operate it independently. It includes a waist seatbelt and ankle strap to help secure the occupant during transport. The chair should not be used for occupants with suspected cervical, spinal, or fracture injuries.
