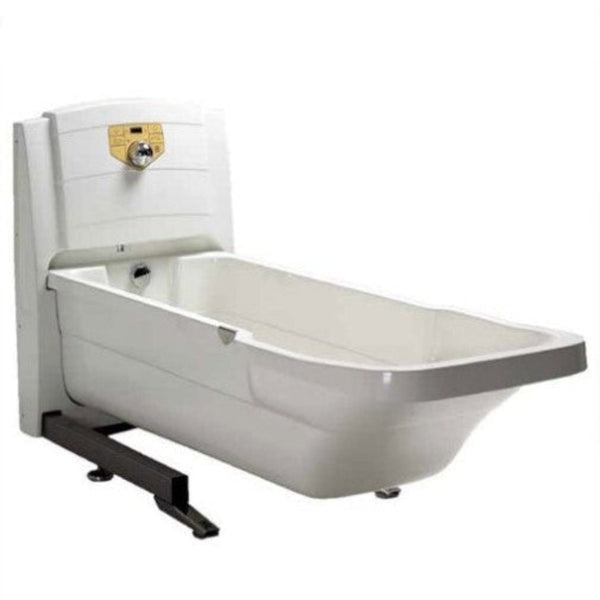

TR Equipment Assisted Bathtub TR 900

Our height-adjustable bathtubs cater to all your hygiene and work safety requirements for both assisted and institutional bathing. Assisting patients with bathing is crucial in maintaining their hygiene, promoting blood circulation, and eliminating dirt, bacteria, perspiration, and dead skin.

Our bathtubs are not only ergonomically designed but also have a sleek look that enhances relaxation and enjoyment during the bathing experience.

Key Details

• Efficient Water Flow and Quick Filling Time: Utilizes a 3/4” (22 mm) thermostatic mixing valve for precise temperature control. Features 3/4” internal piping and double filling spouts for enhanced water flow and faster filling.
• Digital LED Thermometer for Water Temperature: Equipped with a digital LED thermometer to display the temperature of water filling the shower and bathtub.
• Autofill Models with Still Water Temperature Display: Autofill models not only fill the bathtub efficiently but also display the temperature of still water in the bathtub.
• Advanced Cleaning System: Incorporates a cleaning system with a yellow hose mixed with cold water to reduce inhalation of the cleaning mixture. Cleaning mixture is pre-set at the factory to prevent unnecessary alterations.
• Whirlpool Bath Features: Whirlpool bath models include a unique cleaning adapter for the inlet. Allows for the regulation of jet direction and air quantity for a customized experience.
• Enhanced Bathtub Design: Extra width at the head end of the bathtub provides additional space for arms and shoulders, facilitating easier shampooing. Double skin bathtub design minimizes heat loss for improved energy efficiency.
• Adjustable Foot Support in TR 900 Model: TR 900 model comes with an adjustable foot support as a standard feature for added comfort.

Optional Upgrade Descriptions

• Whirlpool: The Whirlpool system generates a gentle massaging effect that stimulates blood circulation that may ease muscle tension.
• Autofill System: Autofill function rapidly fills the bathtub and makes the complete bathing cycle more efficient and minimizes the heat loss.
• Cleaning/Disinfection System: Separate cleaning system with safety on and off valves to ease cleaning of bath and other equipment.
• Disinfection Fluid Flowmeter: Flow meter control for dilution of cleaning solution. Only for TR 900 models with cleaning.
• Transport Wheel Beam With Ramp: For easier handling during installation.

Specifications

• Weight Capacity: 330 lbs.
• Product Width: 33"
• Product Weight: 584 lbs.
• Power Supply: 230 V, 50 Hz or 110 V, 60 Hz
• Removable Foot Support: Yes
• Pop-Up Drainage: Yes
• Reinforced Hoses: Yes
• Hot-and-Cold Water Installation Kit: Yes
• Adjustable Height: Yes

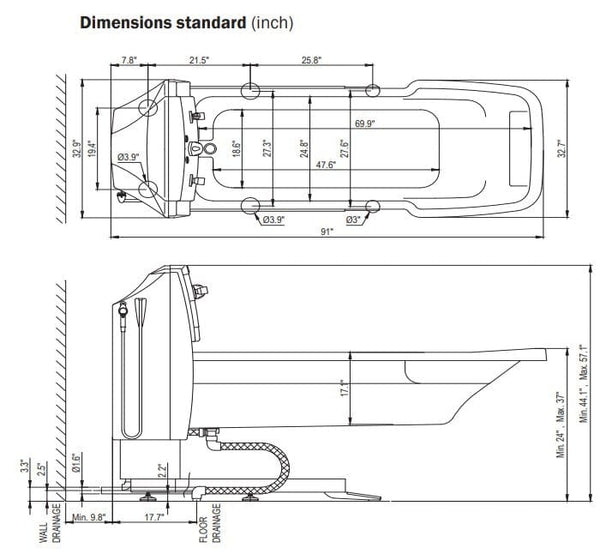

• Height Range (from floor to top of bath lid): 24"-37"
