Description
The mattress offers a range of comfort options with its 10 adjustable settings, allowing customization to meet the specific therapy needs of each patient. It provides therapy modes for various turning options, including left turn only, right turn only, and full turns at 20 and 40 degrees. The lateral rotation cycle times can be set anywhere between 3 to 95 minutes, ensuring flexibility in treatment. Additionally, the mattress features an Auto Firm/Patient Care control for added convenience and ease of use.
Key Details
- Rotation Options: 20-degree or 40-degree lateral rotation therapy. Left turn, right turn, or full turn options.
- Comfort and Control: Static mode with True Low Air Loss Therapy. Enhanced comfort for moisture and temperature control.
- Patient Safety: Raised side air rails for added patient safety.
- Weight Capacity: Accommodates patient weights up to 850 lbs.

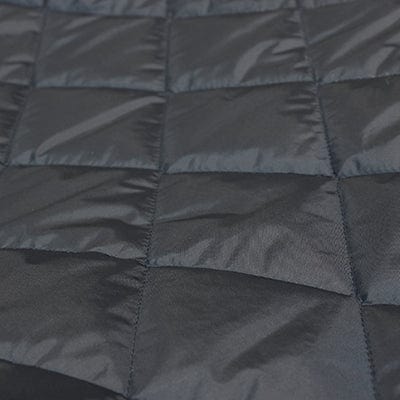

- Cover Material: High vapor permeable and quilted nylon cover for durability.
- Low Slip Base Cover: Prevents mattress movement on the bed, ensuring stability.
- Effective True Low Air Loss: Provides optimal moisture management for enhanced comfort.

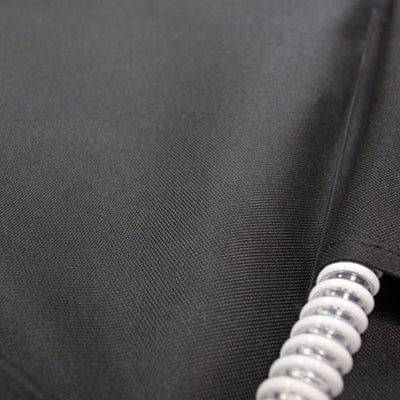

- Nylon Woven Fabric with PU Coating Finish: Durable material with a protective coating.

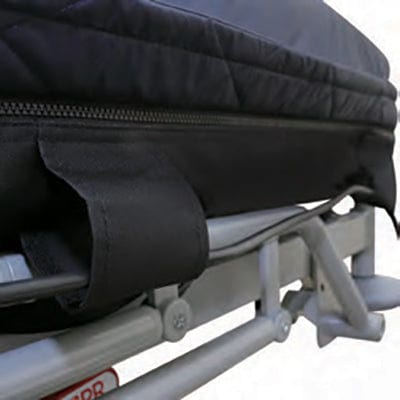

- Cable Management: Keeps electrical cables organized and off the floor.

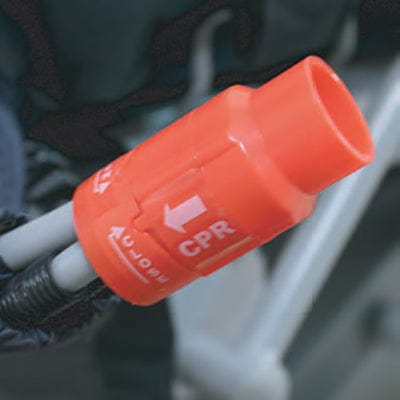

- CPR Quick Release System: Allows rapid deflation of the mattress system within 20 seconds in emergency situations.

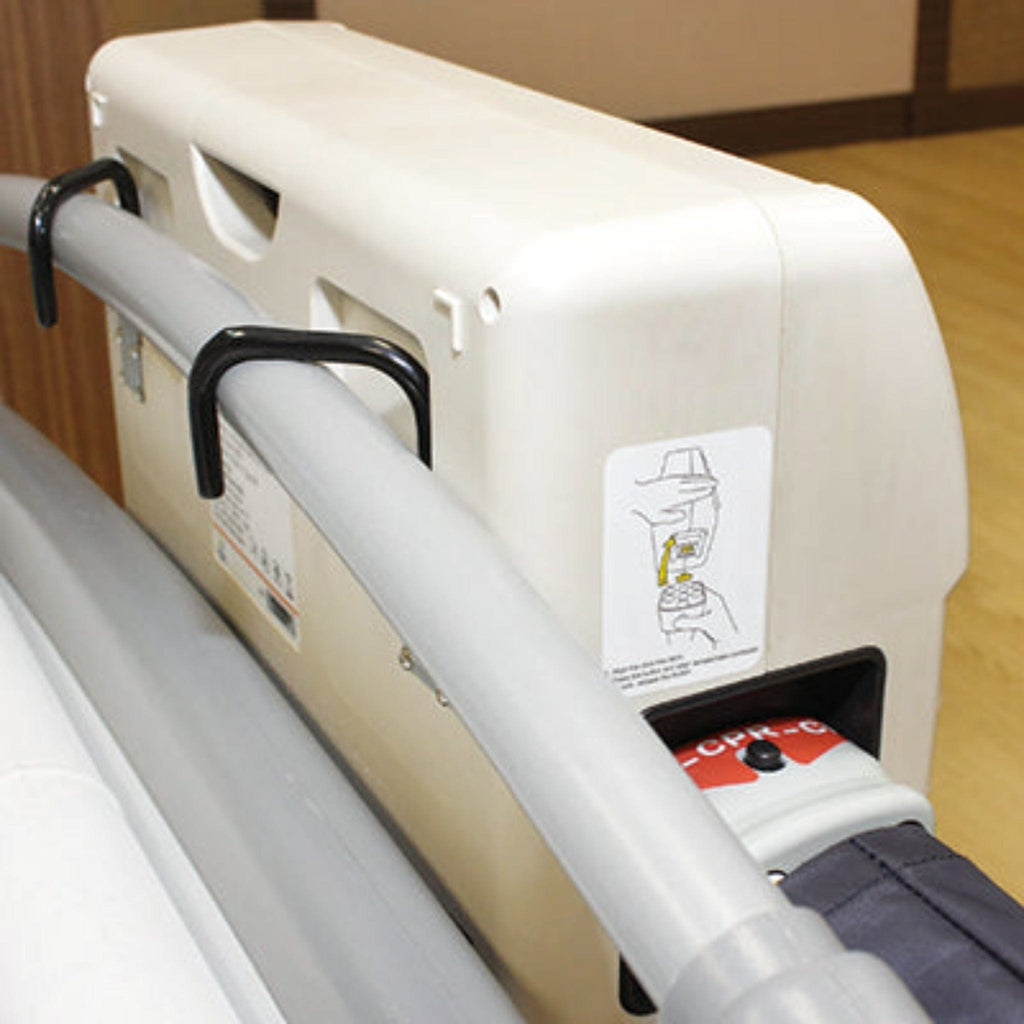

- Universal Hanging Bracket: Designed to fit all types of beds, ensuring versatility and ease of installation.
Specifications

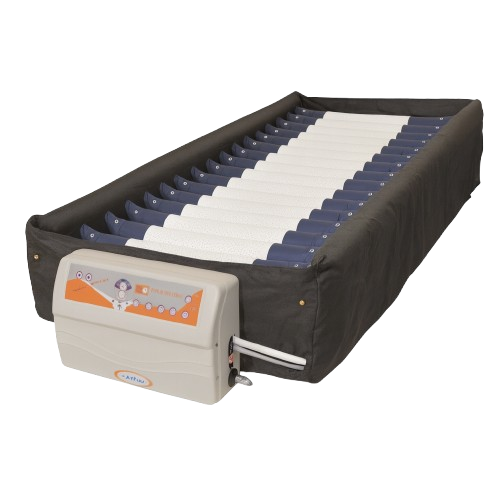

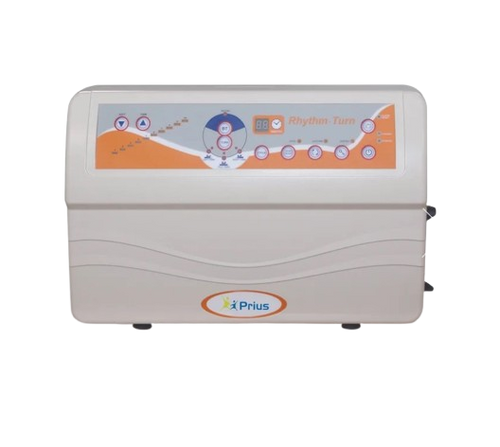

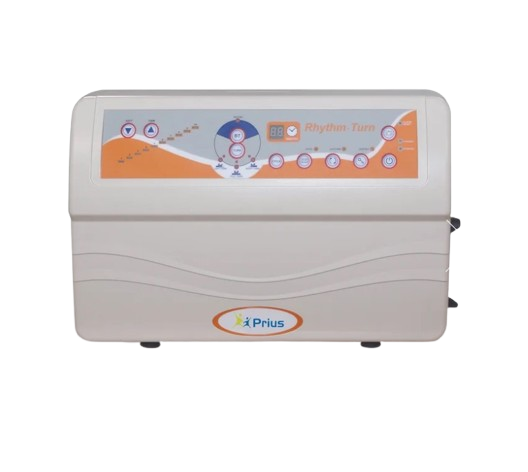

Master Control Unit (Model Name: Rhythm Turn)
- Model No.: FC-PHR0010
- Dimensions (L x W x H): 17.7” x 6.8” x 10.8”
- Product Weight: 13.8 lbs.
- Dwell Time: 3~95
- Maximum Operating Pressure: 61mmHg
- Rated Voltage: AC 110~120V
- Rated Frequency: 60 Hz
- Fuse Rating: 5A 250V
- Max Current: 5A
- Classification: Class I, Type BF
- Not AP or AGP type
- Operating Temperature: 15°C ~ 35°C
- Operating Humidity: 30% ~ 75%
- Mode of Operation: Continuous
- Standard: IEC 60601-1, CAN/CSA C22.2 No. 601.1, IEC 60601-1-2

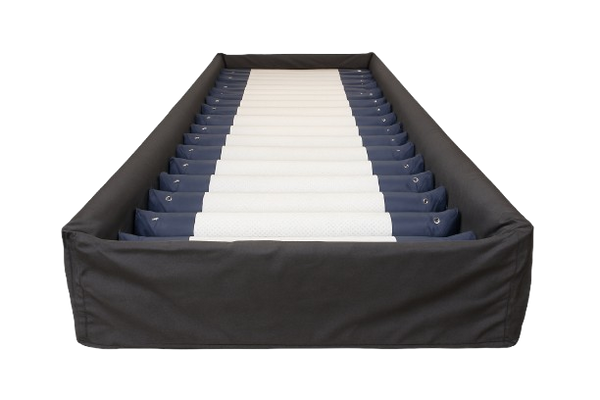

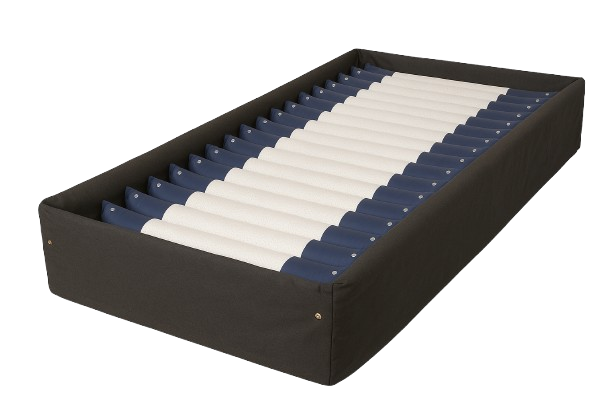

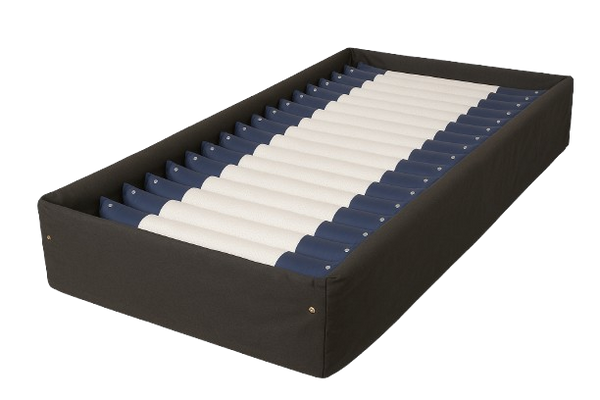

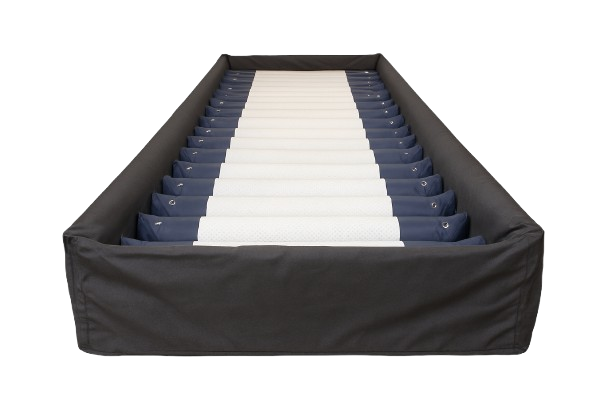

Rhythm Turn Mattress Replacement (Model No: FM-PHR0013)
- Dimensions (L x W x H): 80” x 36” x 10”
- Product Weight: 37.5 lbs.

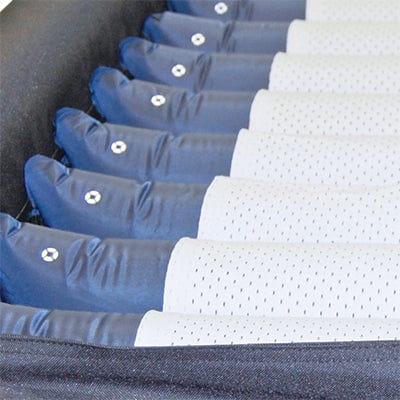

- Cells Material: TPU
- Cover Material: AD with Quilting
- Base Material: Nylon laminated PVC
Additional Information
User Warranty: 1 Year Warranty On Pump And Mattress
