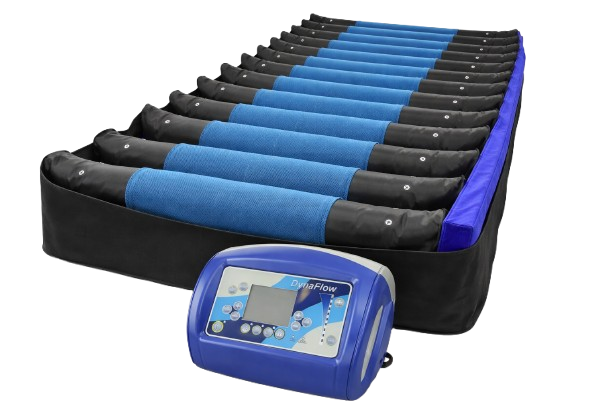

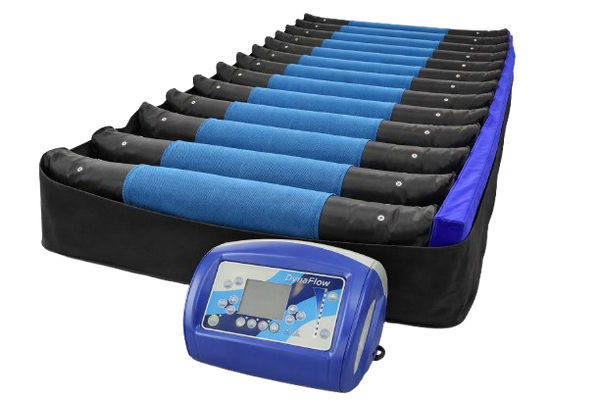

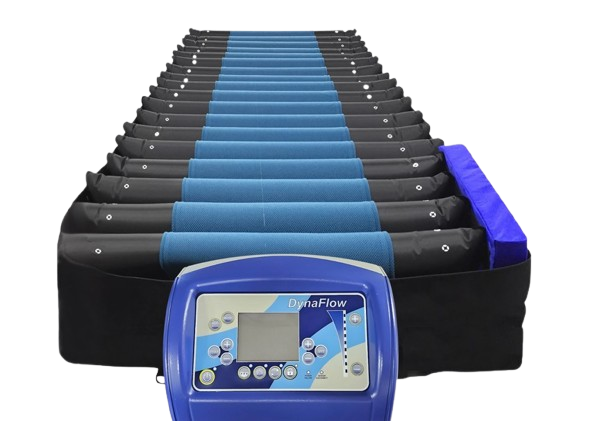

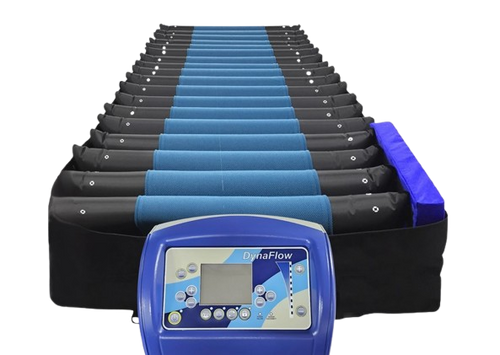

Prius Dynaflow Pressure Redistribution Mattress System for Enhanced Patient Care
The Prius Dynaflow Mattress System is an advanced therapeutic support surface designed to deliver personalized comfort and effective pressure redistribution for patients at risk of skin breakdown. Using intelligent pressure-adjusting technology that automatically accounts for patient height and weight, the system helps reduce pressure points while promoting proper circulation.
A built-in 60-second pulsation cycle gently simulates a massage effect to enhance comfort and relaxation. With integrated Fowler Mode for optimal positioning and three Low Air Loss (LAL) therapy modes to manage heat and moisture, the Dynaflow Mattress System supports skin integrity, improves patient outcomes, and provides caregivers with a reliable solution for long-term care, hospital, and home healthcare environments.
Adaptive Mattress Technology Designed for Comfort, Hygiene, and Emergency Readiness
- Low Air Loss, Pulsation, 3-1 Alternation, and Static Therapies: This system offers multiple therapeutic modes for patient comfort and care.
- Auto Set Pressure: The mattress system utilizes patient height and weight data to automatically set the optimal air pressure.
- High Weight Capacity: With the ability to support patients weighing up to 700 lbs., it accommodates a wide range of individuals.
- Patient Care Mode: In this mode, the mattress inflates to its maximum to aid medical staff in patient treatment and facilitate patient movement.

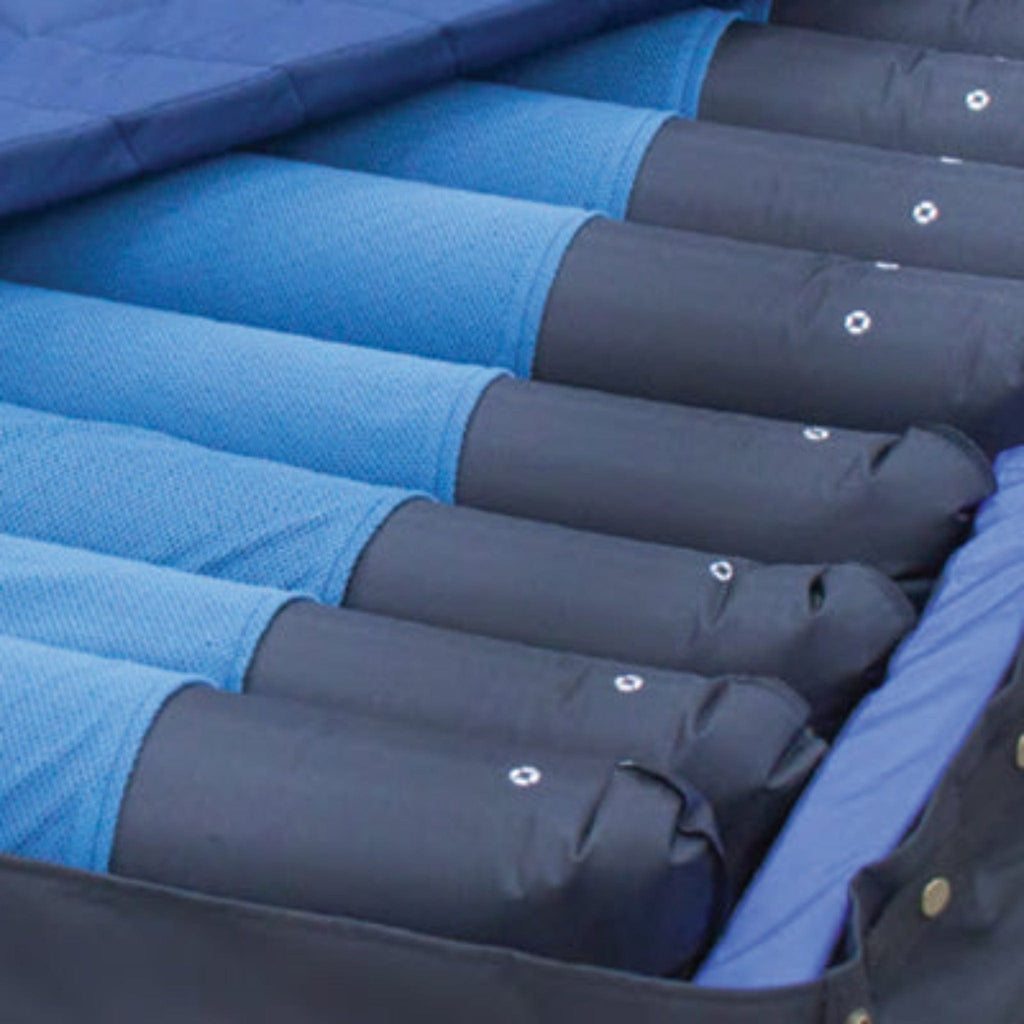

- Nylon PU Cell Design: The mattress features a design that is easy to clean and minimizes the growth of bacteria, ensuring a hygienic environment.
- Convoluted Foam Base: A 2-inch convoluted foam base provides additional support during power outages, enhancing patient comfort and safety.
- Reduced Shearing and Friction: Low slip nylon under mattress base cover minimizes shearing and friction between the mattress and bed frame.
- Modular Construction for Easy Maintenance: The modular construction of the cells allows for simple repairs and easy cleaning.
- Automatic Sensing Technology for Fowler Detection: Incorporates automatic sensing technology to detect Fowler positioning and adjust pressure accordingly.
- Efficient Cable Management: Cable management system keeps electrical cables off the floor, ensuring a tidy and safe environment.

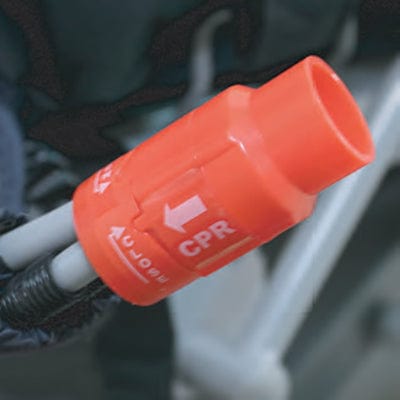

- Rapid CPR Deflation: CPR quick release system deflates the mattress within 20 seconds, facilitating rapid response in emergency situations.

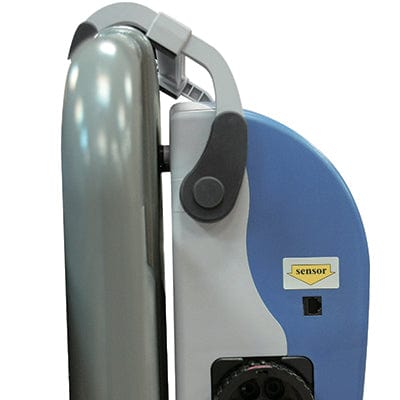

- Versatile Hanging Bracket: The hanging bracket is designed to fit on all types of beds, enhancing compatibility and convenience.
Master Control Unit Specifications
| Dimensions (LxWxH) | 12.3 × 6.7 × 4.9 in. |
| Weight | 14.9 lbs. |
| Rated Voltage | 110–120V |
| Max Current | 5A |
| Rated Frequency | 60 Hz |
| Cycle Time | 3–95 minutes |
| Therapy Modes | Static, Pulsation, Immersion |
| Alternation Type | 3-in-1 Alternation |
| Pressure Range | 15–52 mmHg ± 4 mmHg |
| Comfort Adjustments | 10 Digital Adjustable Comfort Levels |
| Protection Classification | Class I, Type BF |
| Bottom-Out Alarm | Visual & Audio |
| Power Failure Alarm | Visual & Audio |

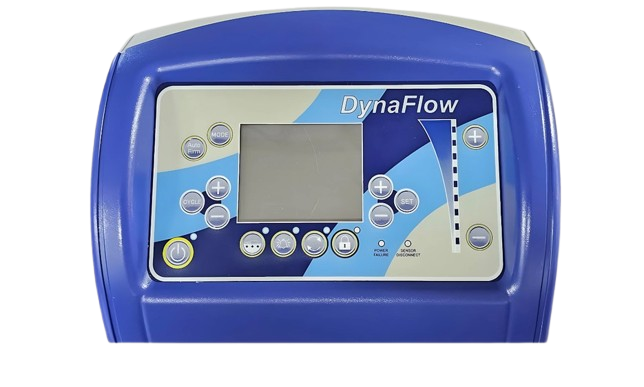

| Control Interface | User-Friendly LCD Control Panel |
| Fowler Function | Yes |
| Auto-Set Function | Yes |
| User Warranty | 1 Year Warranty On Pump And Mattress |
Mattress Specifications
| Model Number | DynaFlow |
| Mattress Dimensions (LxWxH) | 80 × 36, 42, or 48 × 10 in. |
| Mattress Weight | 39.6 lbs. |
| Weight Capacity Options | 500 lbs. / 750 lbs. / 1000 lbs. |
| Cell Material | Black Nylon with PU Coating |
| Number of Cells | 18 Air Cells |

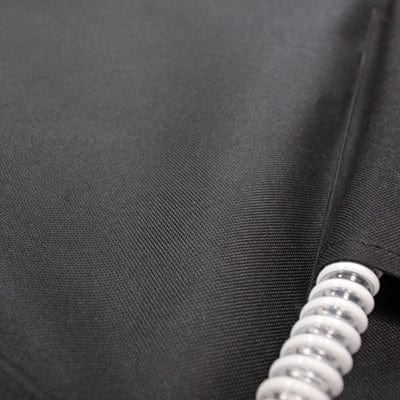

| Cover Material | Blue Nylon with PU Coating Finish |
| Base Material | Black Polyester with PVC Coating |
| Safety Feature | CPR Quick Release System |
| User Warranty | 1 Year Warranty On Pump And Mattress |
DynaFlow Immersion Mattress System Brochure and User Manual
Frequently Asked Questions (FAQs)
What therapeutic modes does the DynaFlow Immersion Mattress System offer?
The mattress system includes Low Air Loss, Pulsation, 3-1 Alternation, and Immersion therapy modes, providing multiple clinical options to help manage pressure and enhance patient comfort.
How does the mattress support pressure ulcer prevention and care?
DynaFlow Immersion redistributes pressure over a larger surface area than standard mattresses and automatically adjusts pressure based on patient height and weight, making it suitable for patients at risk of pressure ulcers or with existing Stage 1–4 ulcers.
What size options and weight capacities are available?
The system comes in three sizes—36”, 42”, and 48” widths—with weight capacities of 500 lbs, 750 lbs, and 1,000 lbs respectively to meet a wide range of patient needs.
Is the mattress easy to clean and maintain?
Yes—its nylon PU cell design is built for easy cleaning and helps minimize bacterial growth, and the integrated 2” convoluted foam base provides added support during power outages.
Does the system adjust to bed positioning?
Yes—the mattress can detect changes in bed angle with Fowler Mode and automatically adjust pressure settings to maintain optimal support and comfort as the head or torso is elevated.
