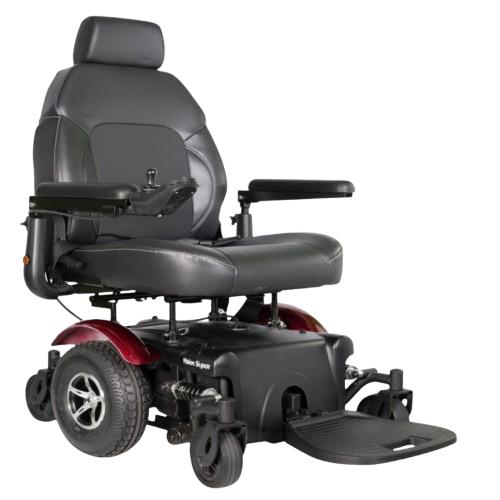

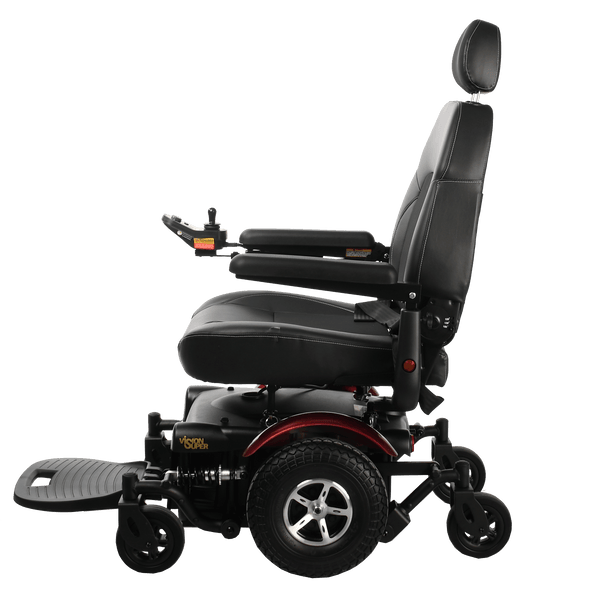

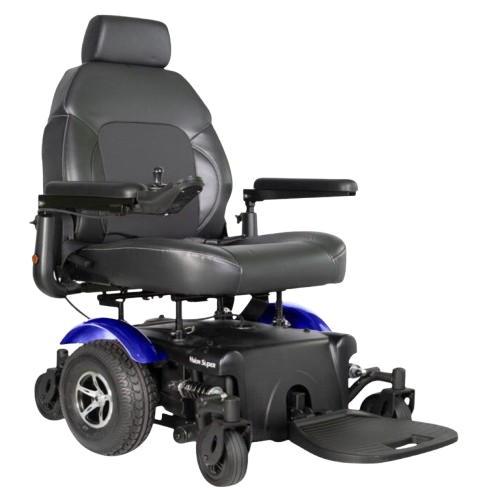

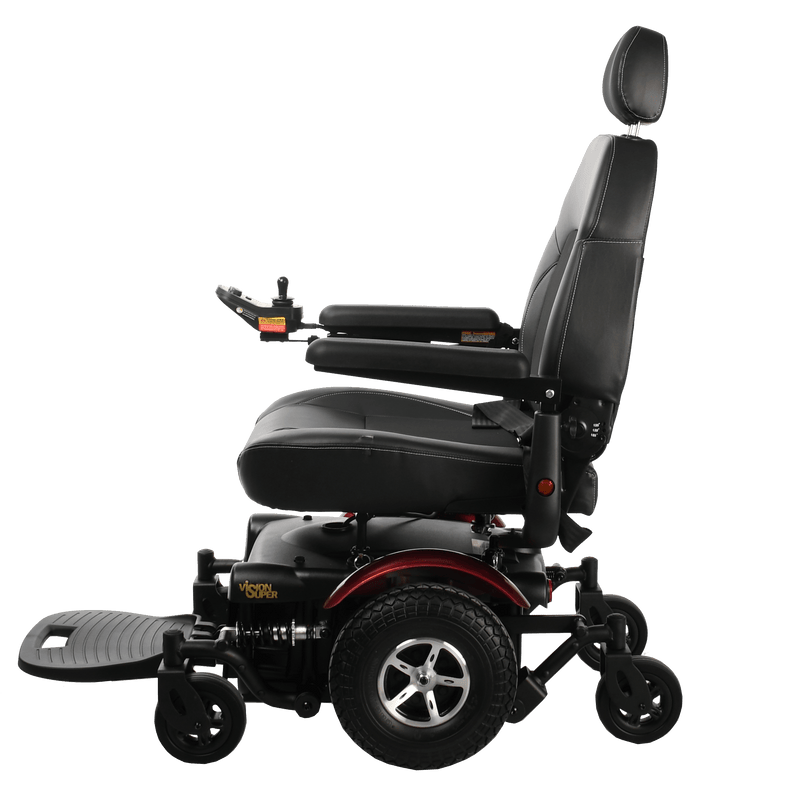

The Merits Vision Super HD Power Chair is Engineered for Power and Built for Comfort
Engineered for superior indoor maneuverability and rugged outdoor performance, this heavy-duty mid-wheel drive power wheelchair is designed to excel in tight, compact spaces. Its patented front-wheel articulation mechanism allows for effortless climbing over thresholds and small steps, while the dual in-line motors deliver enhanced torque, range, and overall efficiency. The chair features full front and rear suspension for a smooth and comfortable ride, paired with 12” knobby tires that ensure optimal traction and weight distribution.
Stability is a core focus with a four-post seat design and excellent footplate support, making this model ideal for those considering a switch to rehab seating. A swing-back joystick bracket comes standard for convenience, and users can further upgrade with the optional R300 power seat elevator, paired with the PG VR2 60A-A1 controller, supporting up to 400 lbs.
Smart Features of the Merits Vision Super HD Power Chair That Move You Forward
- Maneuverability in Tight Spaces: Mid-wheel drive design offers exceptional turning radius for navigating compact environments with ease.
- Step-Climbing Capability: Patented articulation mechanism helps the front wheels climb steps and thresholds effortlessly.
- Powerful Motor System: Dual in-line motors provide increased torque, efficiency, range, and overall performance.

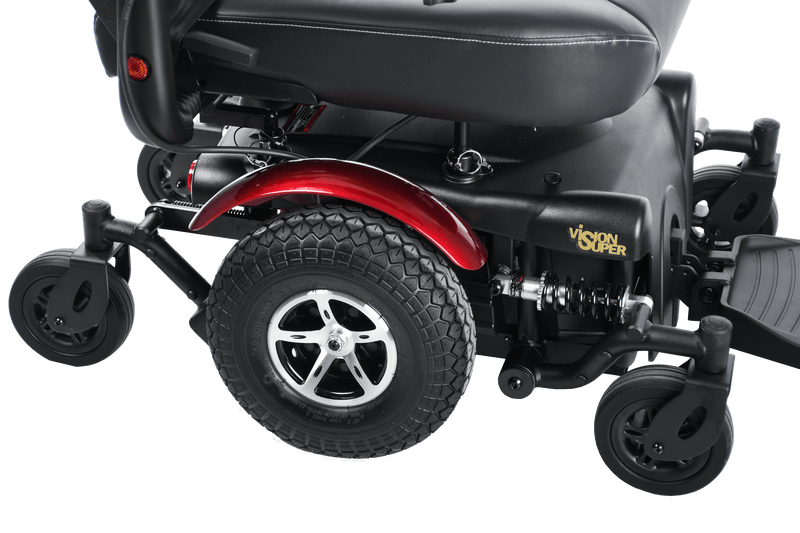

- Smooth Ride Suspension: Full front and rear suspension system delivers maximum ride comfort over various terrains.

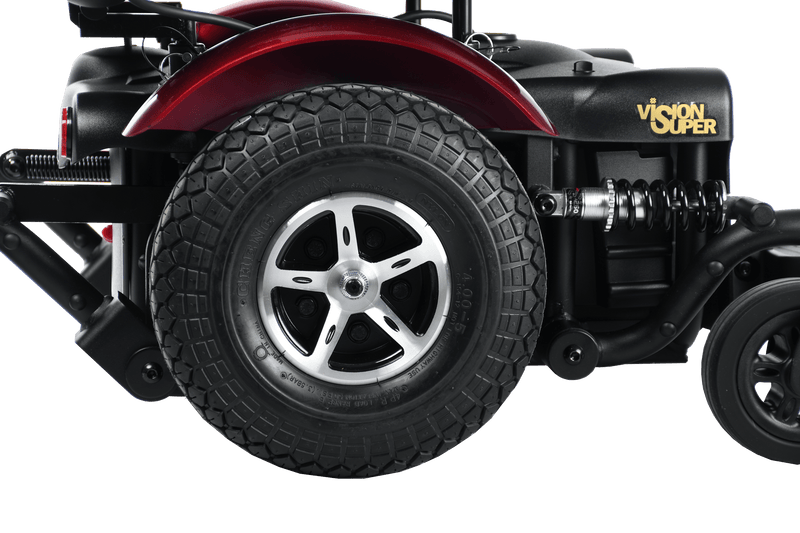

- Superior Traction: 12” knobby tires offer ideal weight distribution and excellent traction indoors and outdoors.

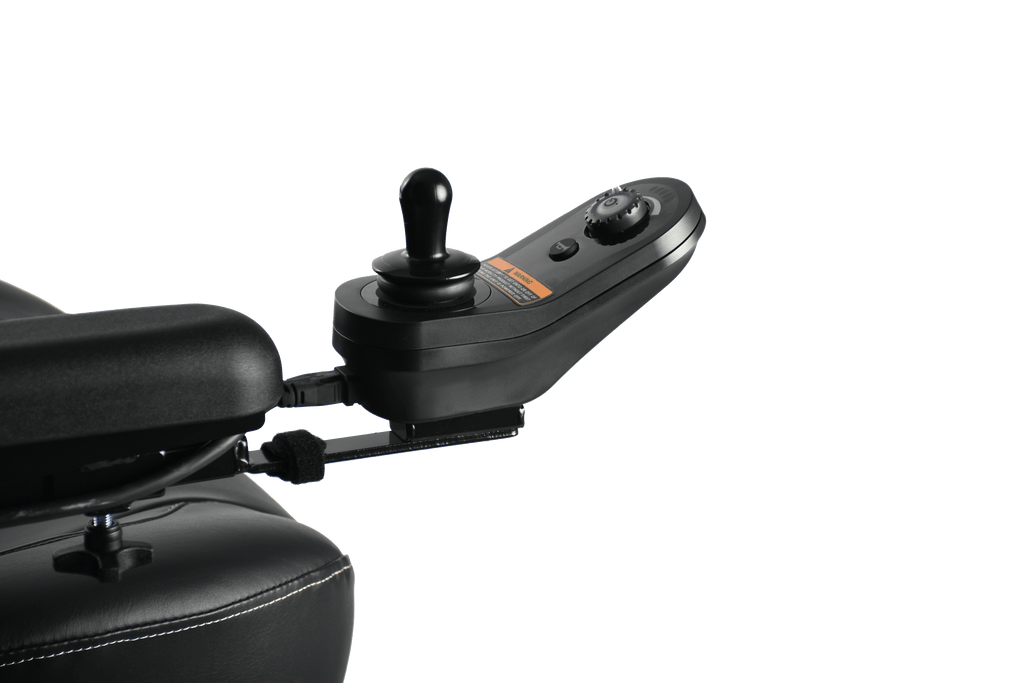

- Joystick Accessibility: Swing-back joystick bracket included as standard for flexible control and easy transfers.
- Enhanced Footplate Stability: Footplate designed for excellent support and increased overall user stability.
- Heavy-Duty Design: Built as a Group 2 heavy-duty model with a four-post seat base—perfect for upgrading to rehab seating.

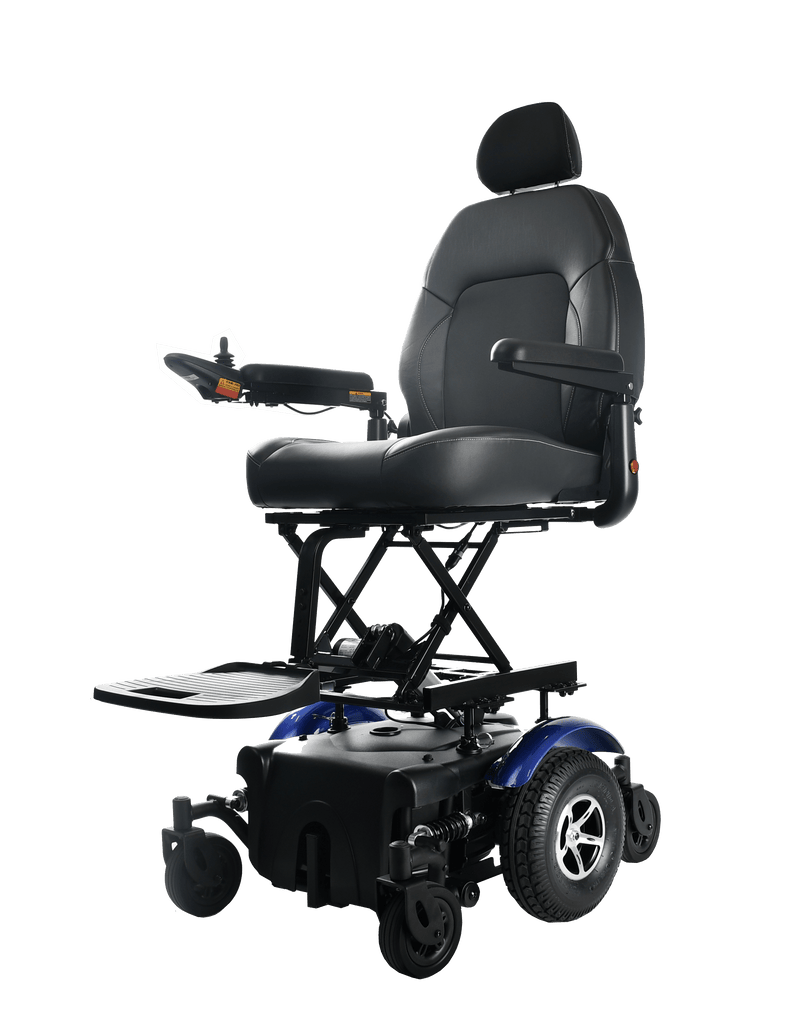

- Optional Seat Elevator: Available R300 power seat elevator with PG VR2 60A-A1 controller, supporting up to 400 lbs.
Merits Vision Super HD Power Chair Specifications
| Driving Range | 20 miles |
| Maximum Speed | 5 mph |
| Battery Type | 12V / 22NF x 2 pcs |
| Motor | DC 24V, 200W (Rated) / 575W (Max) |
| Maximum Climbing Angle | 10° |
| Turning Radius | 21 in. |
| Ground Clearance | 2.2 in. |
| Controller | PG nVR2 50A / DY LiNX |
| Charger | 5A Off-board |
| Weight Capacity | 450 lbs. and 400 lbs. (elevating seat model) |
| Total Weight | 231 lbs. |
| Front Wheel | 6” x 2” PU Tire |
| Rear Wheel | 6” x 2” PU Tire |
| Drive Wheel | 12" (4.00-5) |
| Seat Width | 20 in. |
| Seat Depth | 18 in. |
| Overall Length | 35 in. |
| Overall Width | 27 in. |
| Overall Height | 50 in. |
Merits Vision Super HD Power Chair Warranty
Frequently Asked Questions (FAQs)
What is the maximum weight capacity of the Vision Super?
A: The standard Vision Super (P327) supports up to 450 lb. If you select the optional power seat elevator (R300 with PG VR2 60A‑A1 controller), capacity reduces to 400 lb.
What are the chair’s top speed and driving range?
The Vision Super delivers a top speed of 5 mph and a driving range of up to 20 miles on a full charge.
How compact is the turning radius for indoor use?
Thanks to its true mid‑wheel drive system, the Vision Super offers a tight turning radius between 20″ and 21″ ideal for tight hallways and corners.
What type of suspension and tires does it use for terrain handling?
Equipped with full front and rear suspension and 12″ knobby (pneumatic) drive tires, the chair delivers a smooth and stable ride over varied terrain while ensuring superior traction.
Can the seat height or type be customized?
You can upgrade to the optional R300 power seat elevator, allowing users to raise or lower their seat height—ideal for reaching countertops or improving eye-level interaction. Note that this option reduces the weight capacity to 400 lbs.
