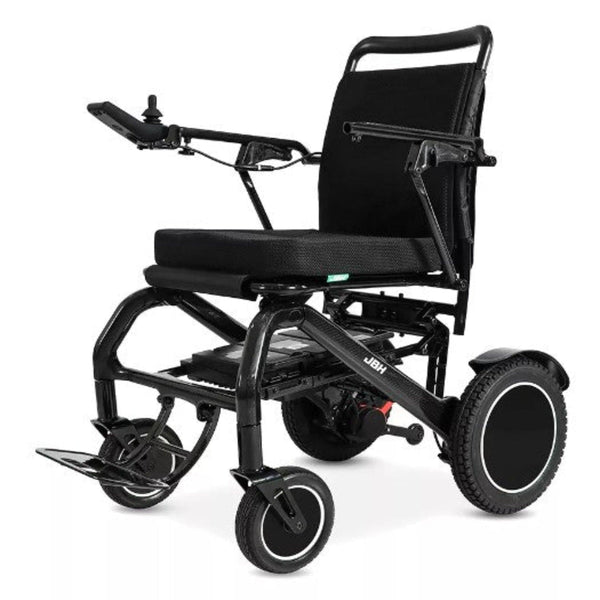

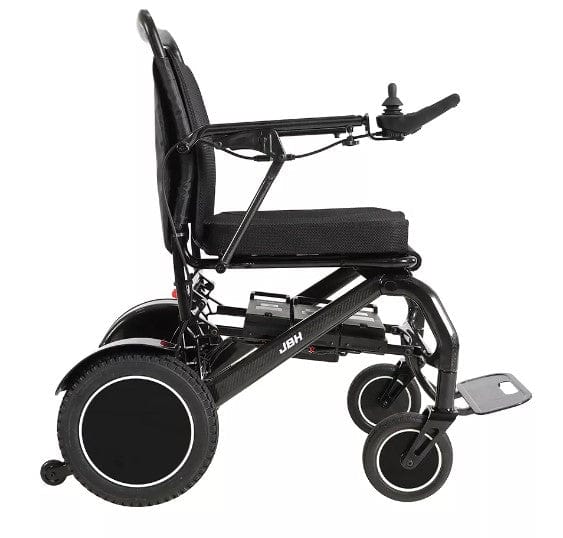

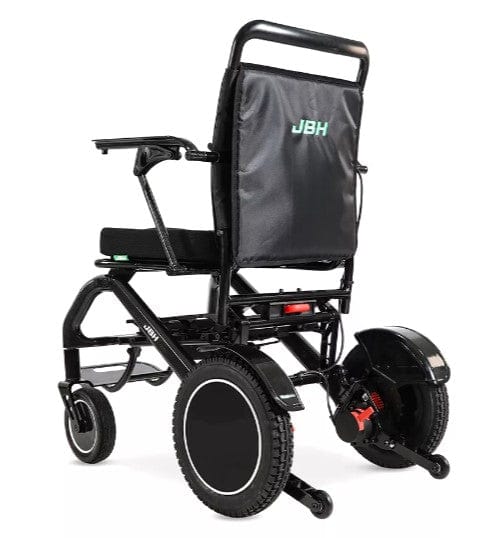

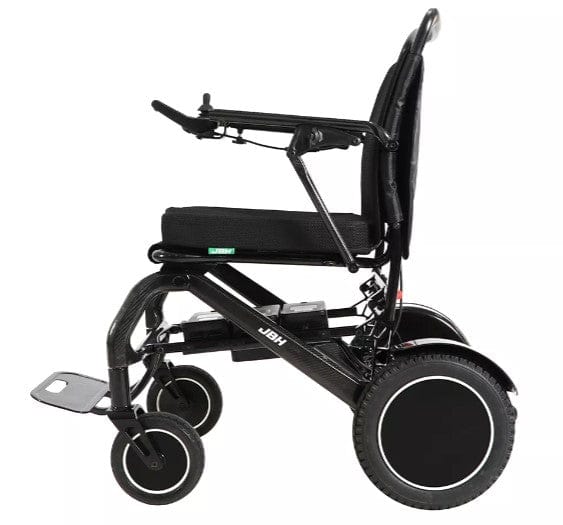

JBH DC07 Carbon Fiber Electric Wheelchair

The DC07 has been carefully designed with carbon fiber for a lightweight structure and incredible durability. It offers unparalleled support and strength, making it the perfect choice for high-end wheelchair users.

Key Details

• Carbon Fiber: Constructed from carbon fiber, the DC07 wheelchair boasts a lightweight and durable material, resulting in a substantial enhancement in overall performance.
• Lightweight: The wheelchair stands out for its lightweight of 56.2 lbs., providing users with increased mobility and ease of handling.
• Double 250W Motors: Paired 250-watt motors are commonly appropriate for indoor and moderate outdoor usage, offering sufficient power to navigate diverse terrains, encompassing flat surfaces, ramps, and slight inclines.
• Lithium Batteries: The DC07 is equipped with two lithium batteries with a capacity of 24V 6AH each, ensuring long range capabilities and a reliable source of power.
• Remote Controllable: Install the JBH APP to gain control of your wheelchair using your mobile phone. This wireless control feature empowers individuals with limited mobility or dexterity to independently operate their wheelchairs. Users can manage the wheelchair's movements, including forward, backward, turning, and stopping, eliminating the need for assistance in pushing or steering the wheelchair.
• Electromagnetic Braking System: Equipped with an intelligent electromagnetic brake that engages in immediate braking upon the release of the joystick.

Specifications

• Unfolded Size (L * W * H): 42.9" x 23.2" x 39.8"
• Fold Size (L * W * H): 13.8" x 23.2" x 31.9"
• Driving Speed: 0~3.7 mph
• Driving Range: 12.4 miles
• Loading Capacity: 264.6 lbs.
• Net Weight: 56.2 lbs.
• Gross Weight: 61.7 lbs.
• Armrest Spacing: 19.7"
• Seat Width: 19.7"
• Seat Depth: 17.7"
• Brushless Motor: 250W × 2 pcs
• Battery: 24V 6AH * 2 pcs lithium battery
• Braking System: Electromagnetic Brake
• Front Wheel: 8" * 2 pcs PU solid wheels
• Rear Wheel: 12" * 2 pcs PU solid wheels
• Safe Gradient: 8°
• Turning Radius: 27.6“
• Charging Time: 6 hours (2 batteries)
